High Mounted Stop Lamp Replacement (Four Door)

High Mounted Stop Lamp Replacement (Four Door)

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Open the rear deck lid.

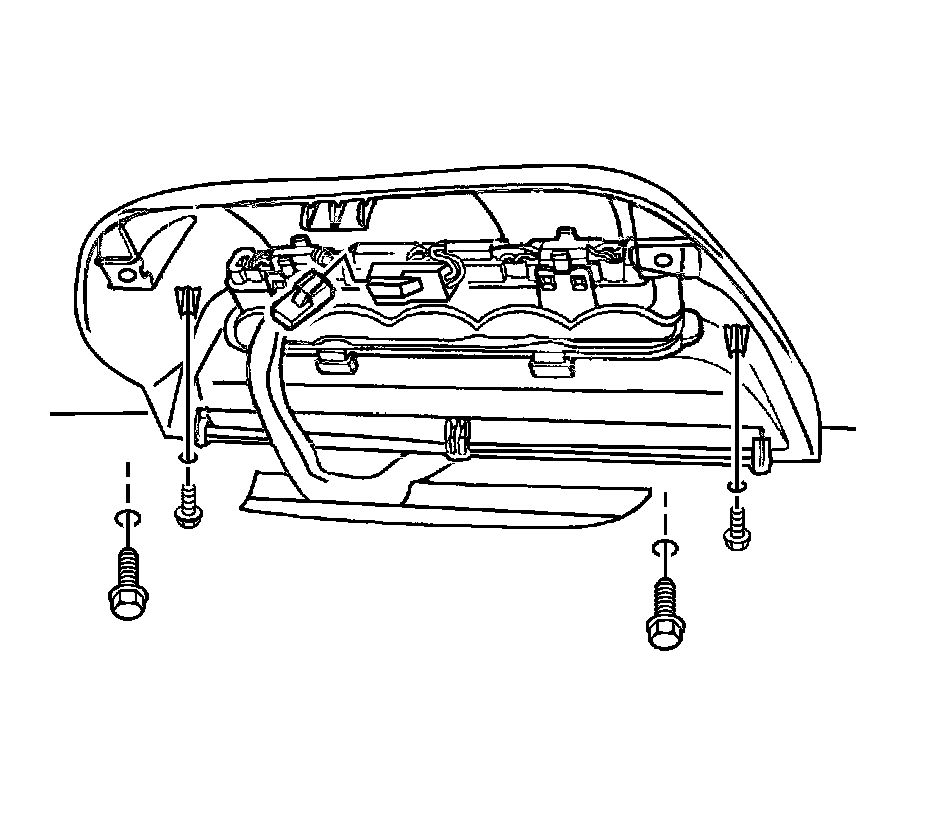

3. Remove the bolts and the center high-mounted stop lamp (CHMSL).

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

1. Install the CHMSL with the bolts.

Tighten the CHMSL mounting bolts to 4 Nm (35 lb in).

2. Connect the negative battery cable.
