Instrument Panel Cluster (IPC) Replacement

Instrument Panel Cluster (IPC) Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Remove the instrument cluster trim panel.

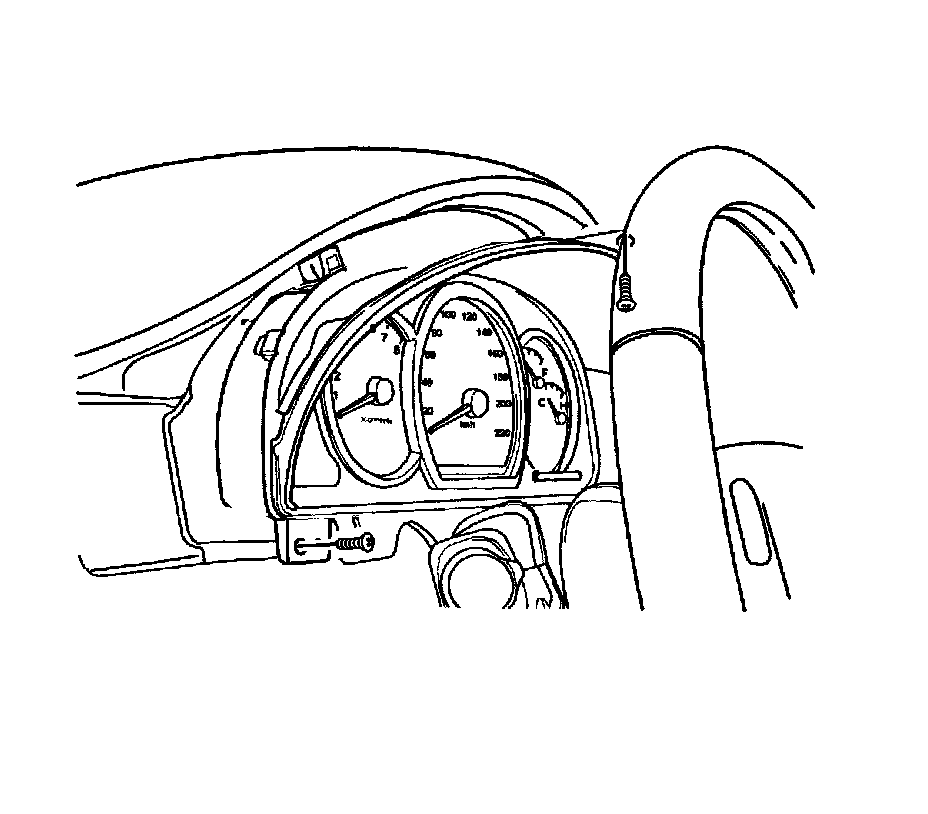

3. Remove the screws and the instrument cluster.
4. Disconnect the electrical connectors.

Installation Procedure




1. Connect the electrical connectors.

Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

2. Install the instrument cluster with the screws.

Tighten the instrument cluster screw to 4 Nm (35 lb in).

3. Install the instrument cluster trim panel.
4. Connect the negative battery cable.
