HVAC Systems - Manual

Too Hot in Vehicle

Important: Perform this test under garage conditions with the air temperature at 21-32°C (70-90°F), and no sun load. Follow this test carefully for accurate results.


Important: Perform this test exactly as described to obtain accurate results.


Test Description

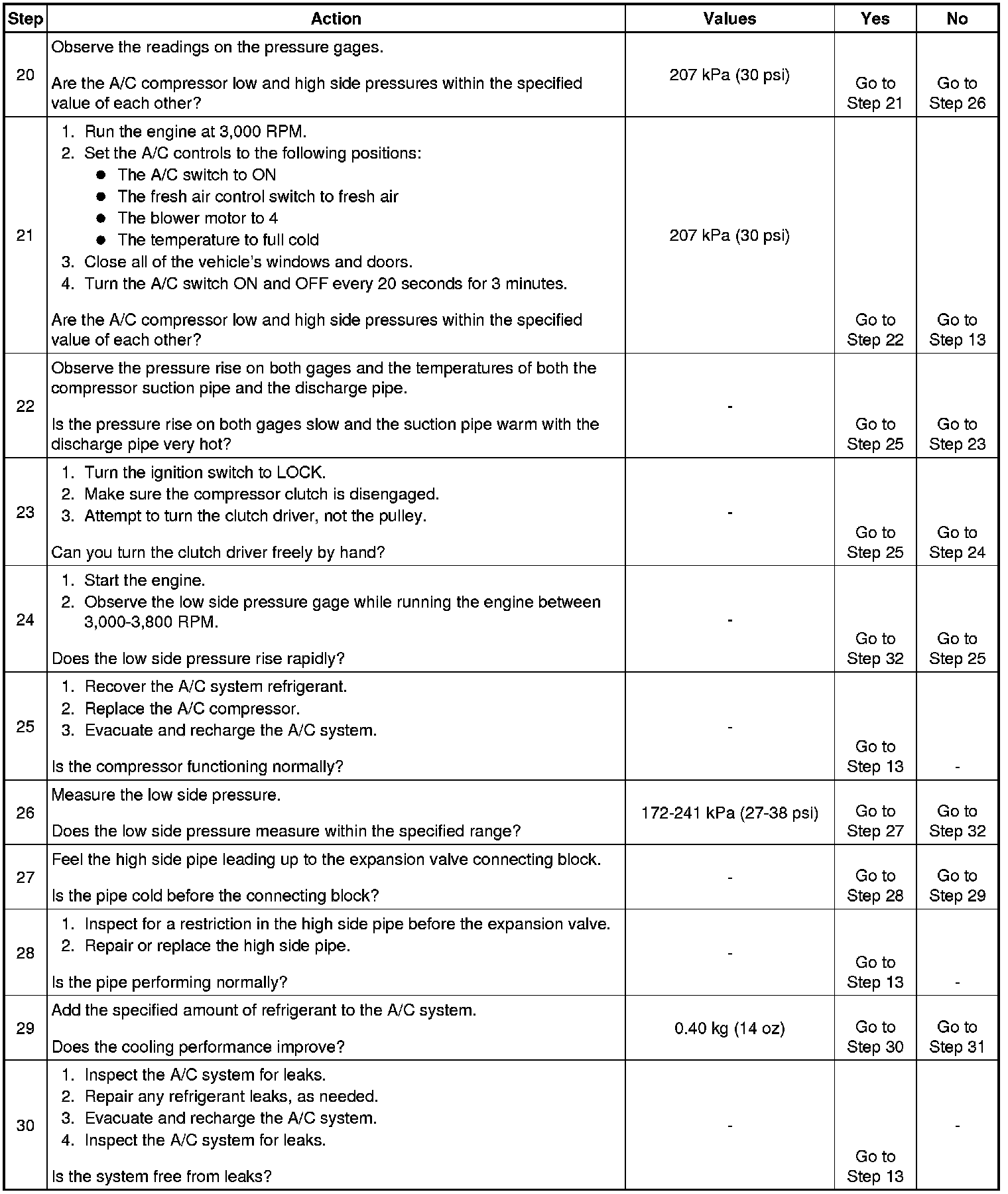

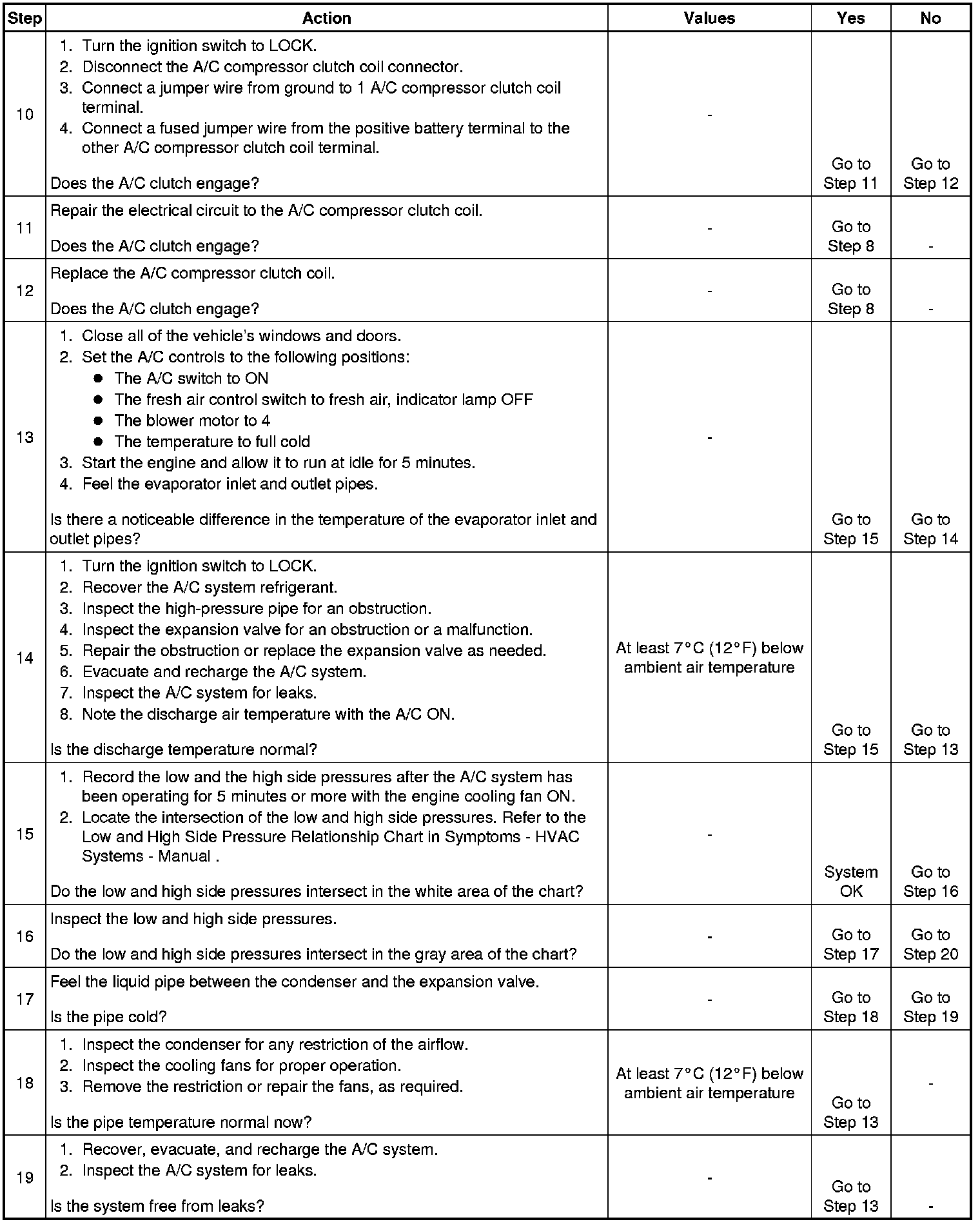

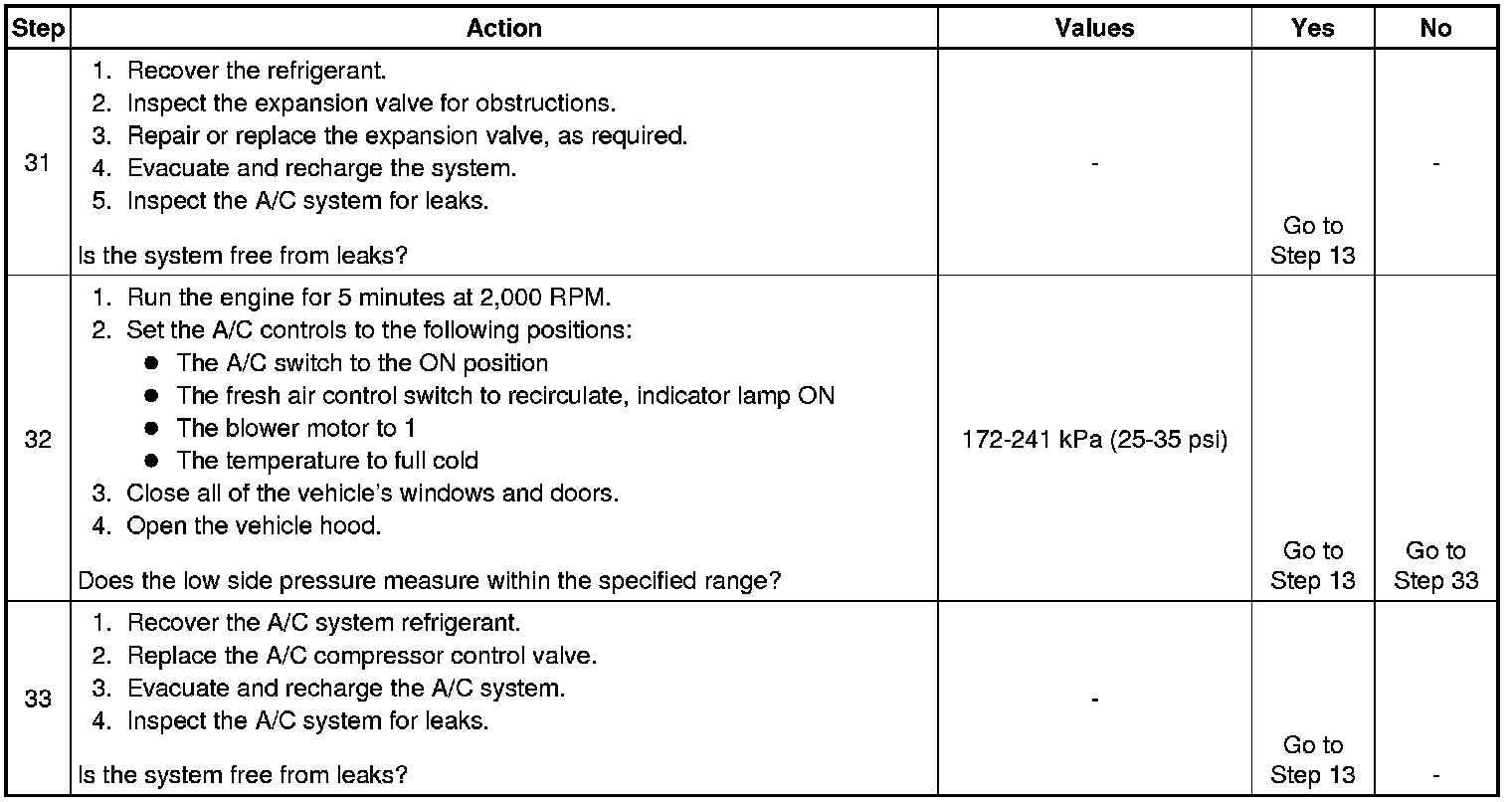

The numbers below refer to the step numbers on the diagnostic table.
