HVAC Systems - Manual




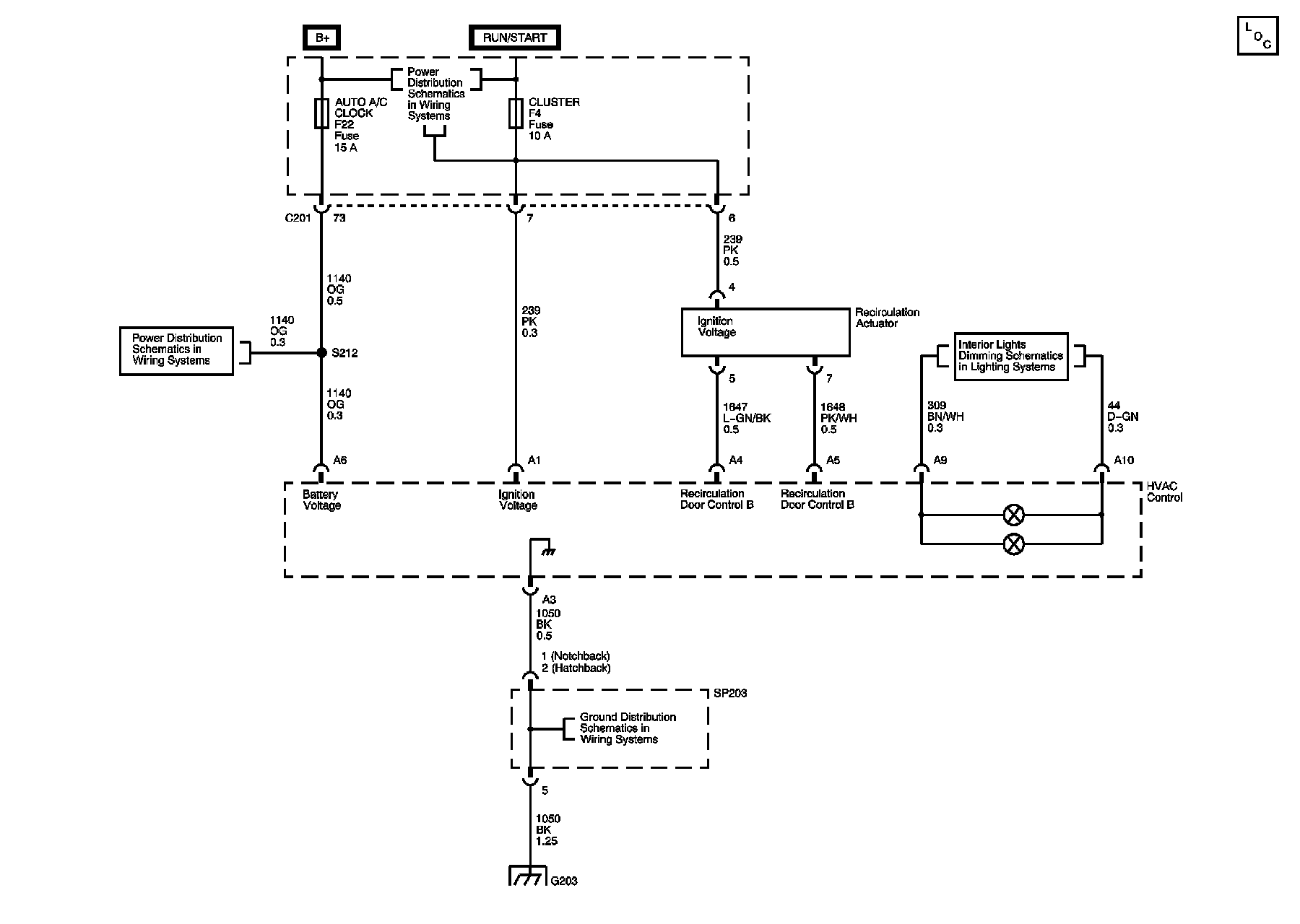

HVAC Schematics

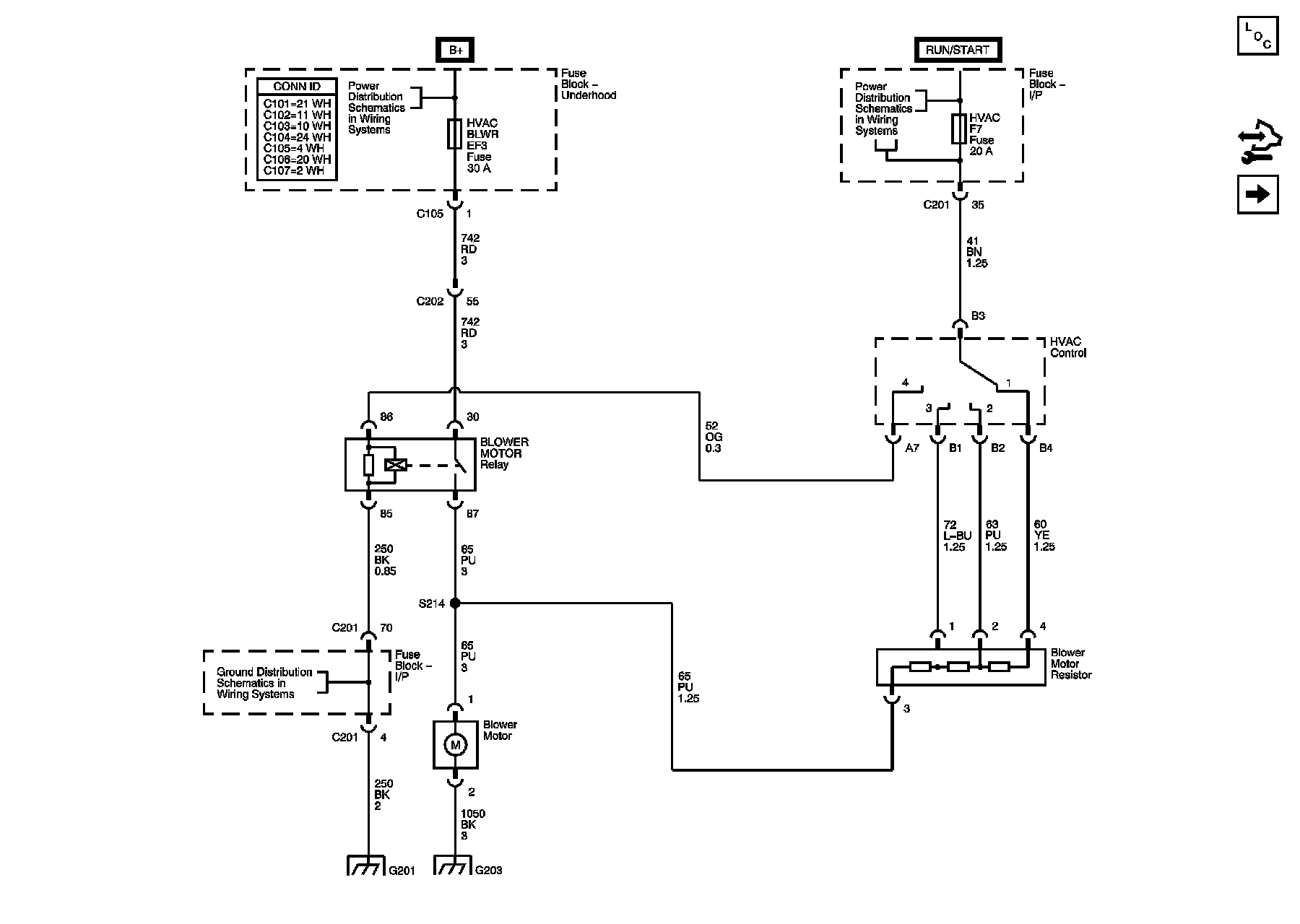

Blower Controls

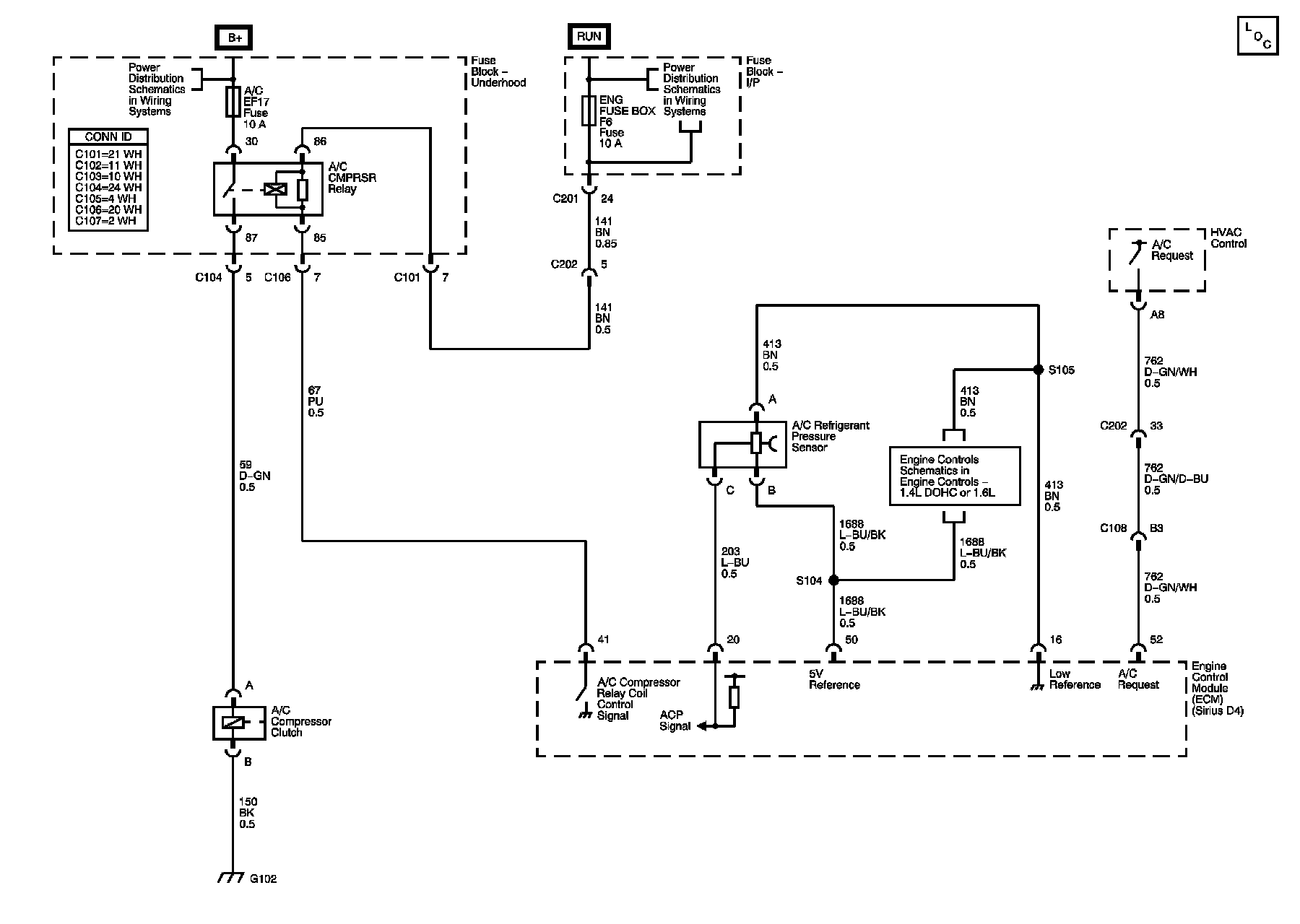

Compressor Controls - Sirius D4

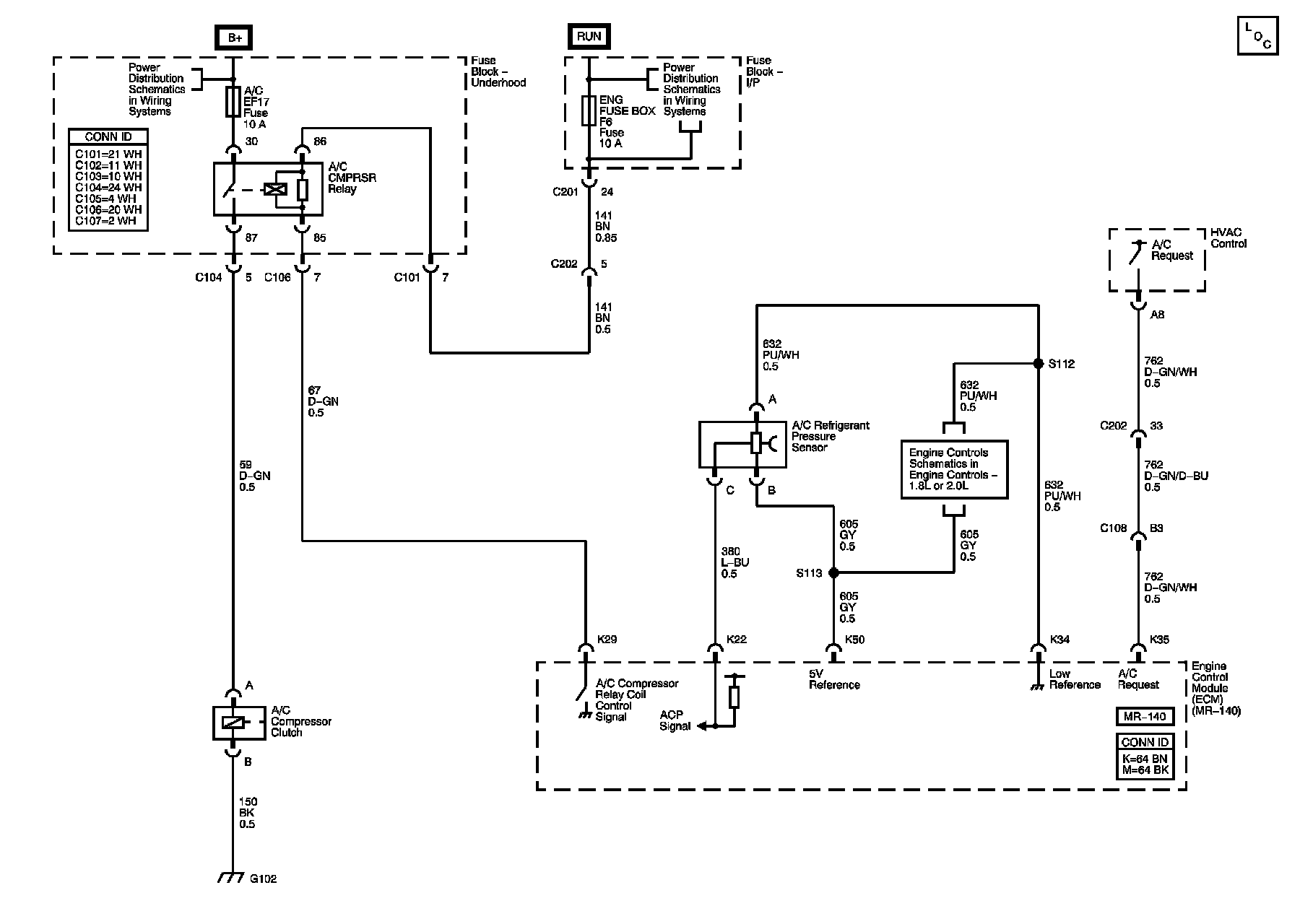

Compressor Controls - MR-140

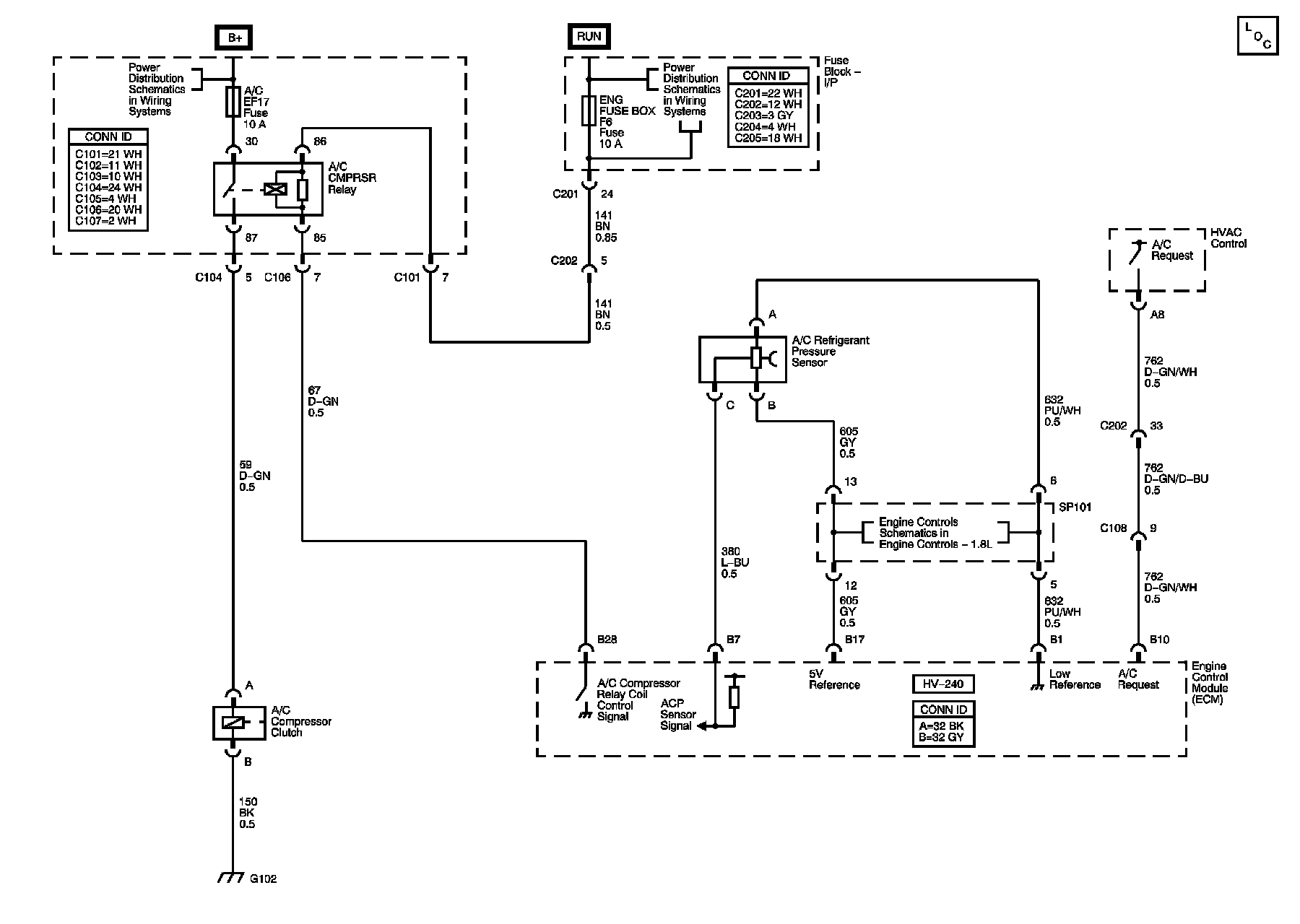

Compressor Controls - HV-240





Temperature Controls/Air Delivery
