Blower Motor Resistor: Service and Repair

Blower Motor Resistor Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Remove the glove box. Refer to Storage Compartment Replacement - Instrument Panel (I/P) Service and Repair in Instrument Panel, Gages and Console.
3. Disconnect the electrical connector at the resistor.

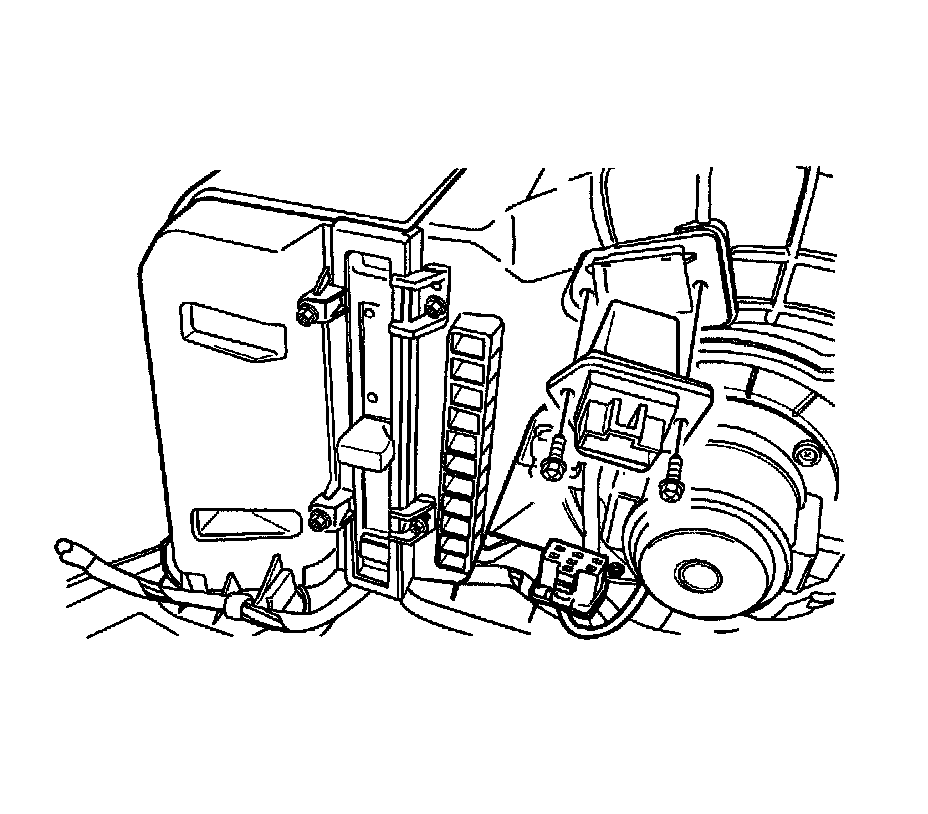

4. Remove the mount screws from the resistor.
5. Remove the resistor from the heater/air distributor case by gently pulling the resistor downward.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

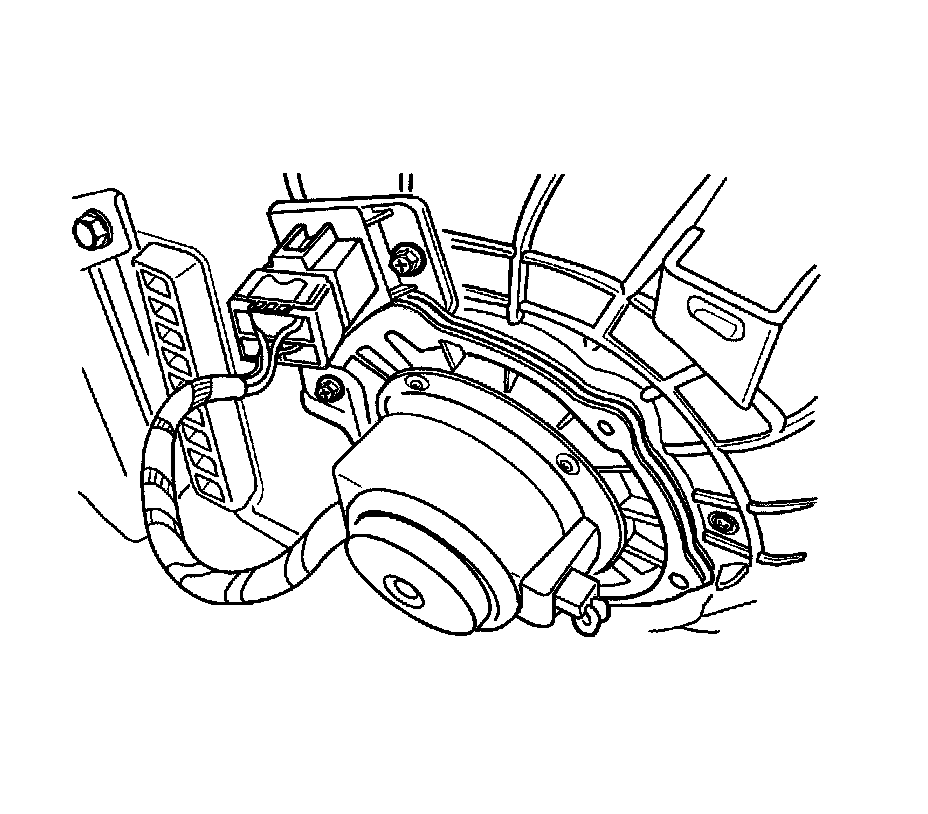

1. Install the resistor into the heater/air distributor case with the screws.

Tighten the blower motor resistor screws to 1.2 Nm (11 lb in).

2. Connect the electrical connector at the resistor.
3. Connect the negative battery cable.
4. Confirm the proper performance of the blower.
5. Replace the glove box. Refer to Storage Compartment Replacement - Instrument Panel (I/P) Service and Repair in Instrument Panel, Gages and Console.
