Recirculation Actuator Replacement

Recirculation Actuator Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Remove the glove box. Refer to Storage Compartment Replacement - Instrument Panel (I/P) Service and Repair in Instrument Panel, Gages and Console.

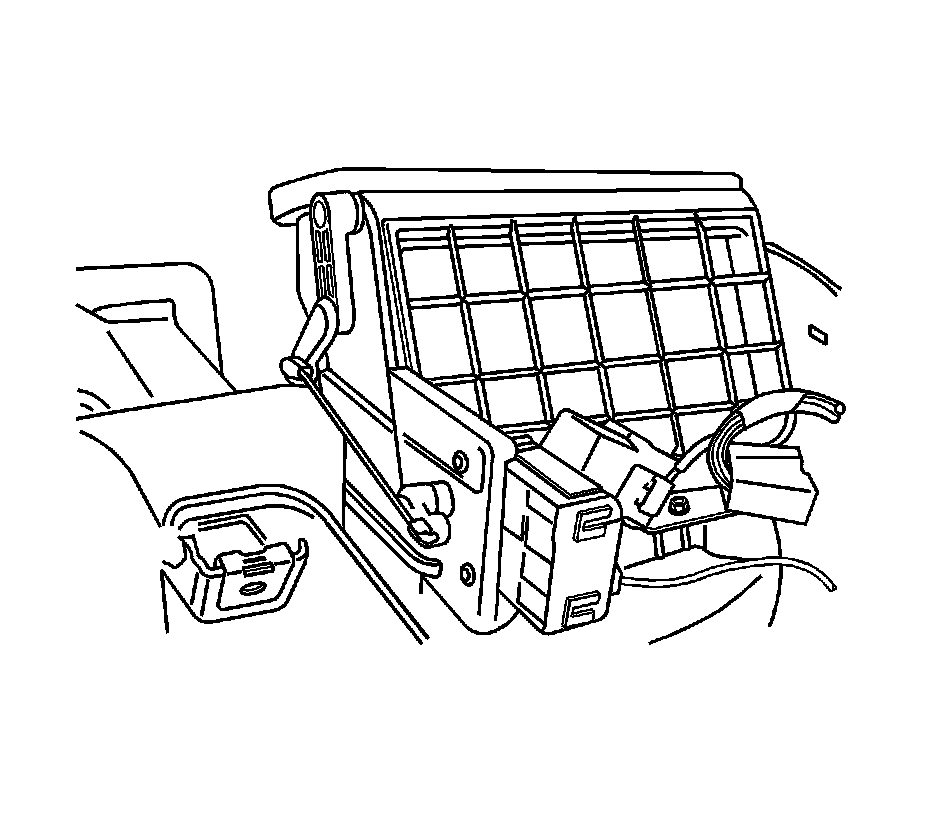

3. Remove the actuating rod by snapping the rod out of the lever with needle-nose pliers.
4. Disconnect the electrical connector.
5. Remove a screw and the bracket mounting high-blower relay.

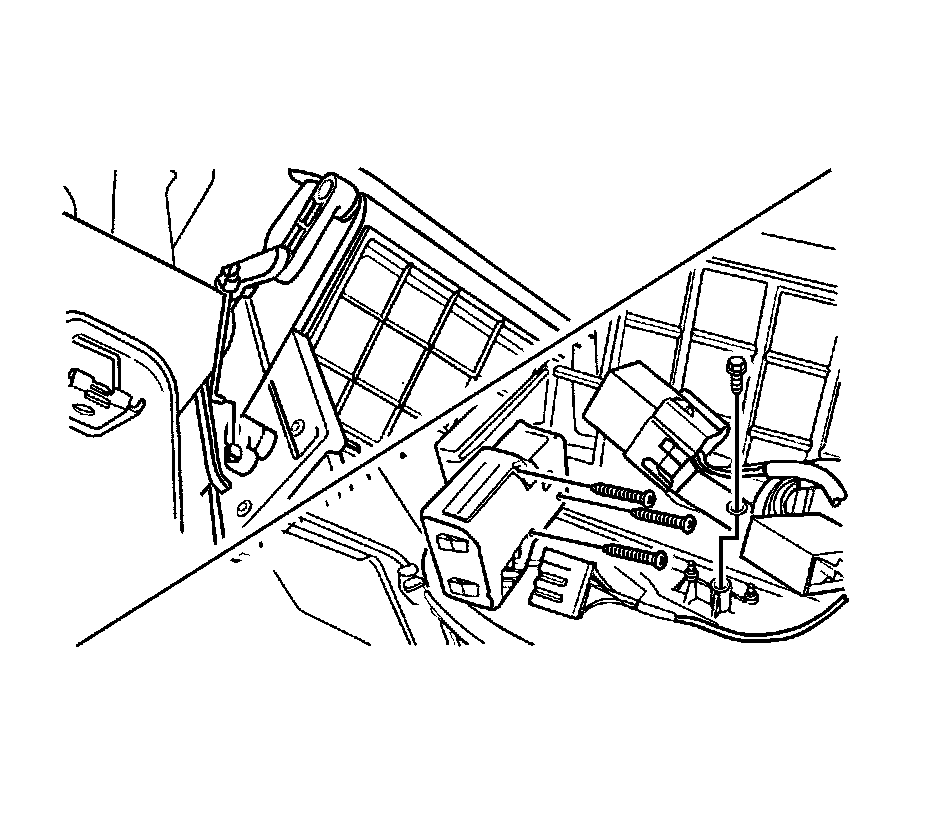

6. Remove the motor retaining screws.
7. Remove the motor.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

1. Install the motor with the retaining screws.
2. Install the actuating rod.
3. Connect the electrical connector.
4. Install the bracket mounting high-blower relay with a screw.
5. Remove the glove box. Refer to Storage Compartment Replacement - Instrument Panel (I/P) Service and Repair in Instrument Panel, Gages and Console.
6. Connect the negative battery cable.
