Shift Interlock, A/T




Automatic Transmission Shift Lock Control Schematics

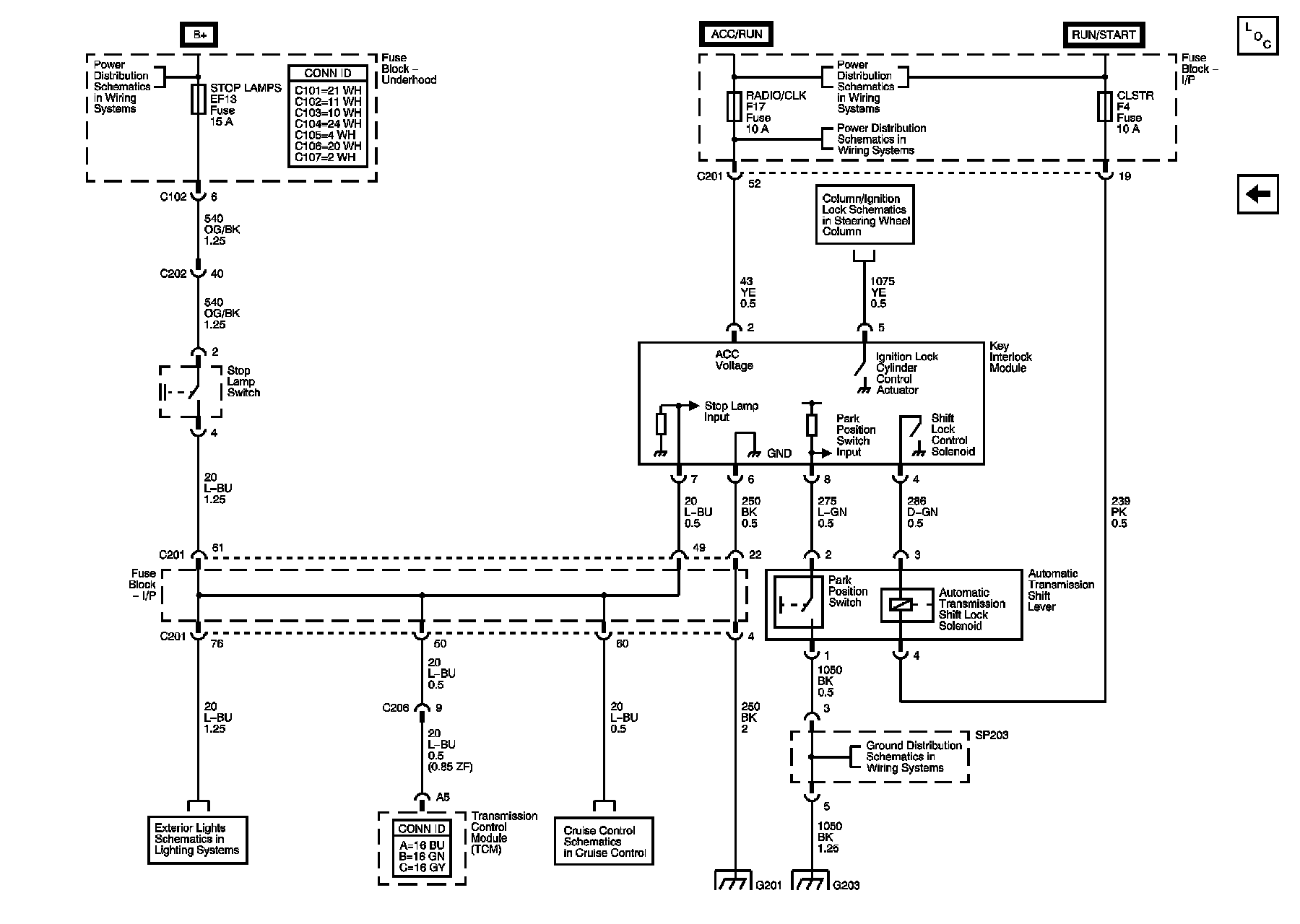

Automatic Transmission Shift Lock Control Schematics - With Ignition Lock Cylinder Control Actuator

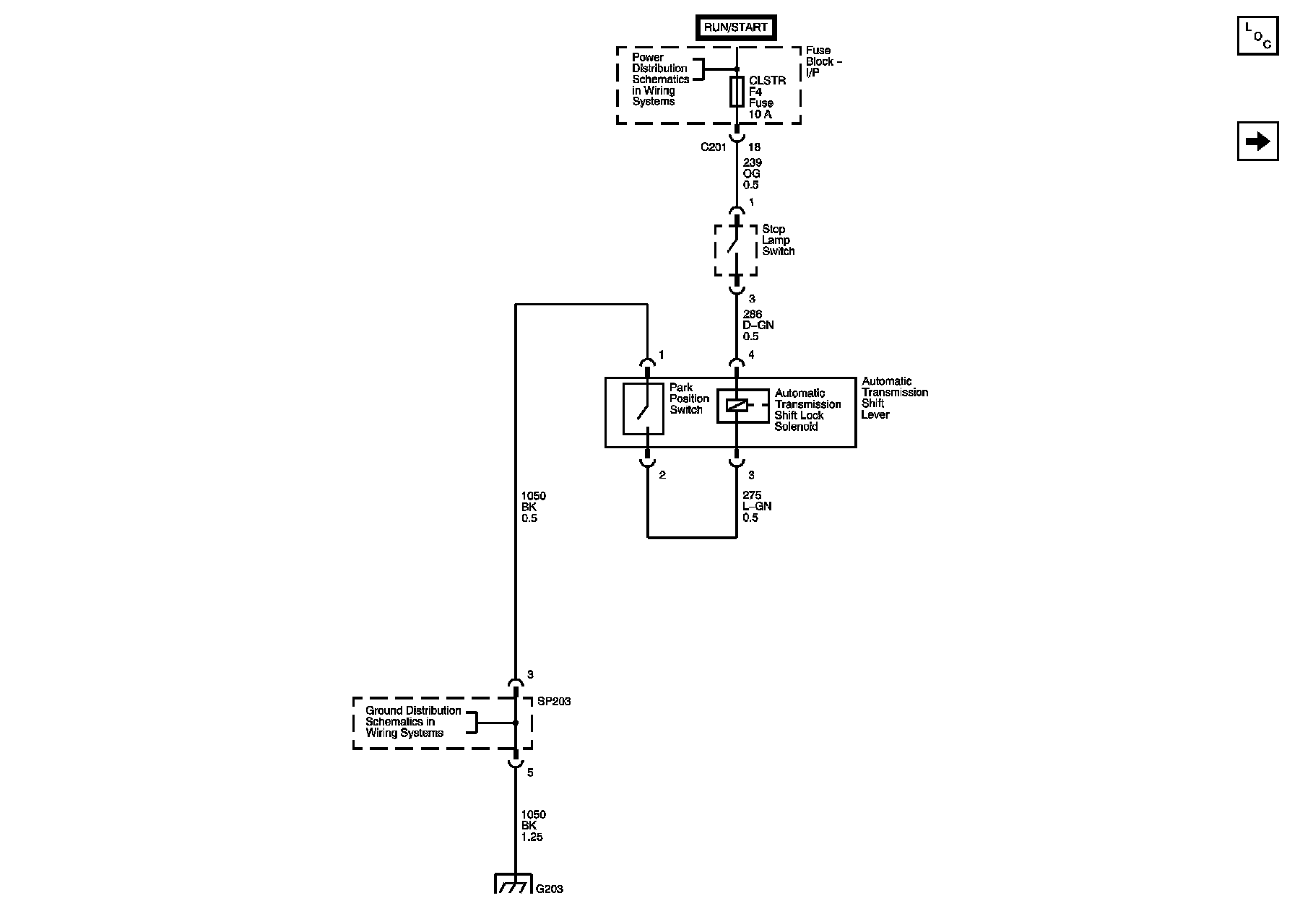

Automatic Transmission Shift Lock Control Schematics - w/o Ignition Lock Cylinder Control Actuator
