System Diagram

Engine Controls Schematics

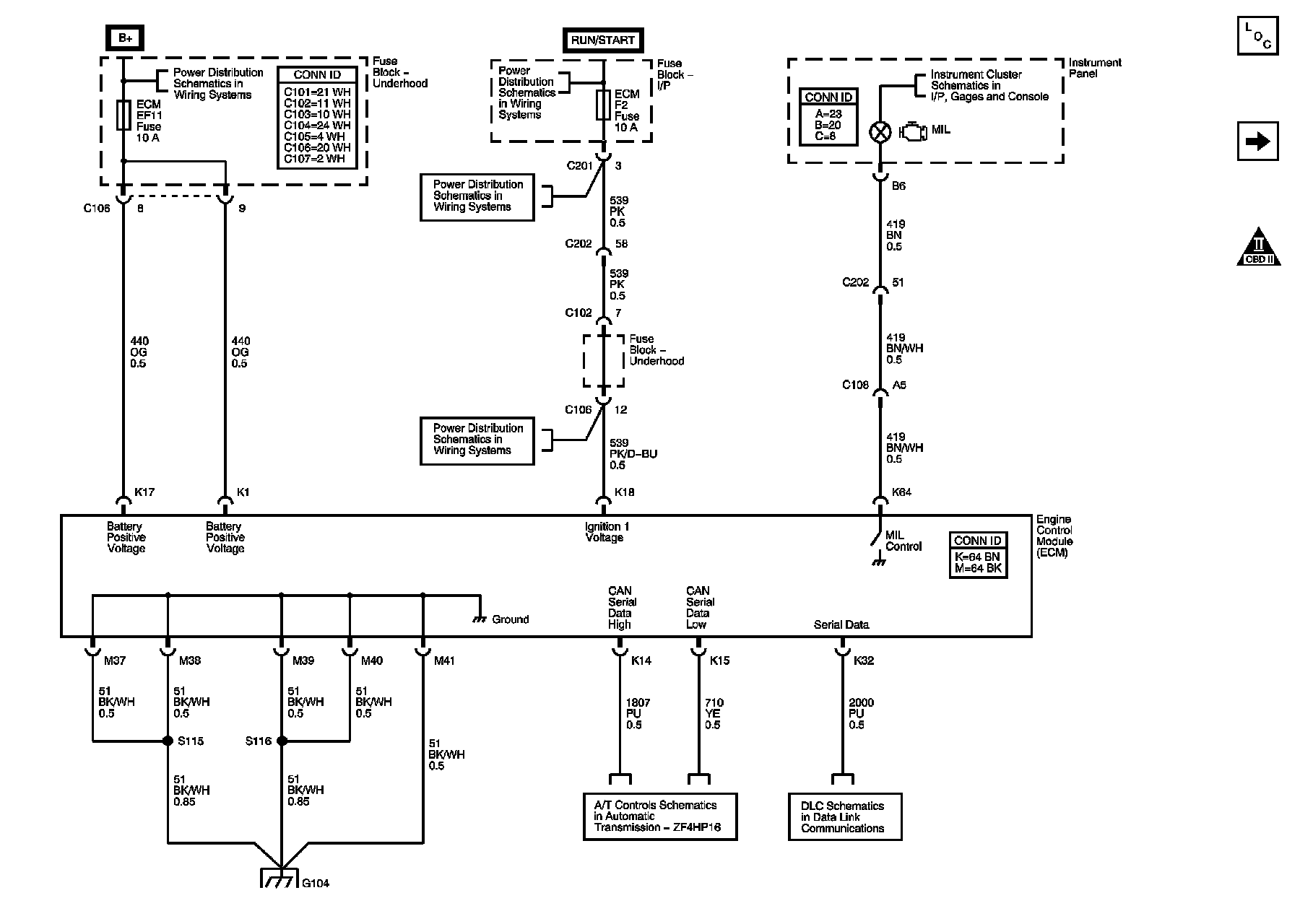

Module Power, Ground, Serial Data, Malfunction Indicator Lamp (MIL)

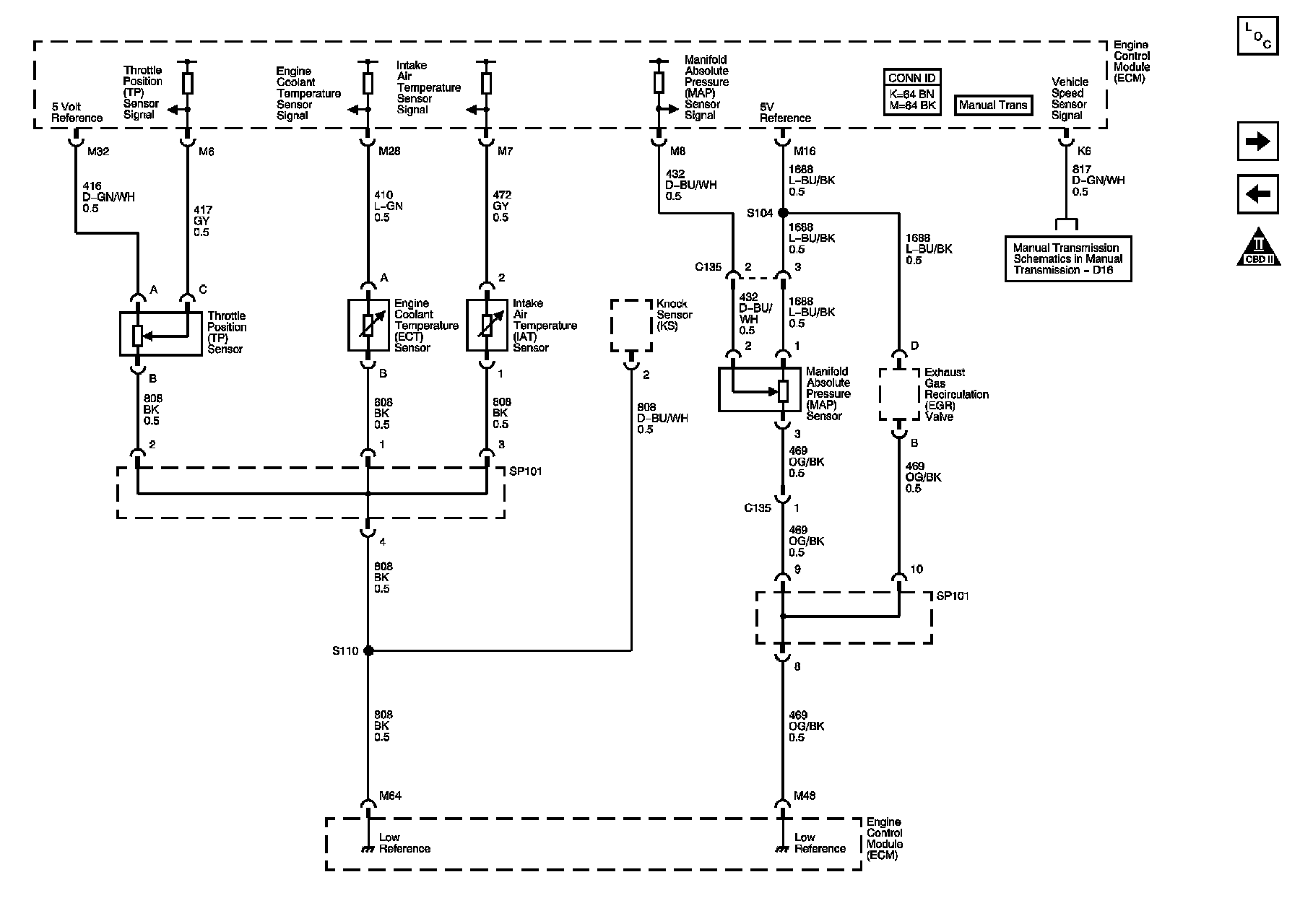

Engine Data Sensors - Pressure and Temperature

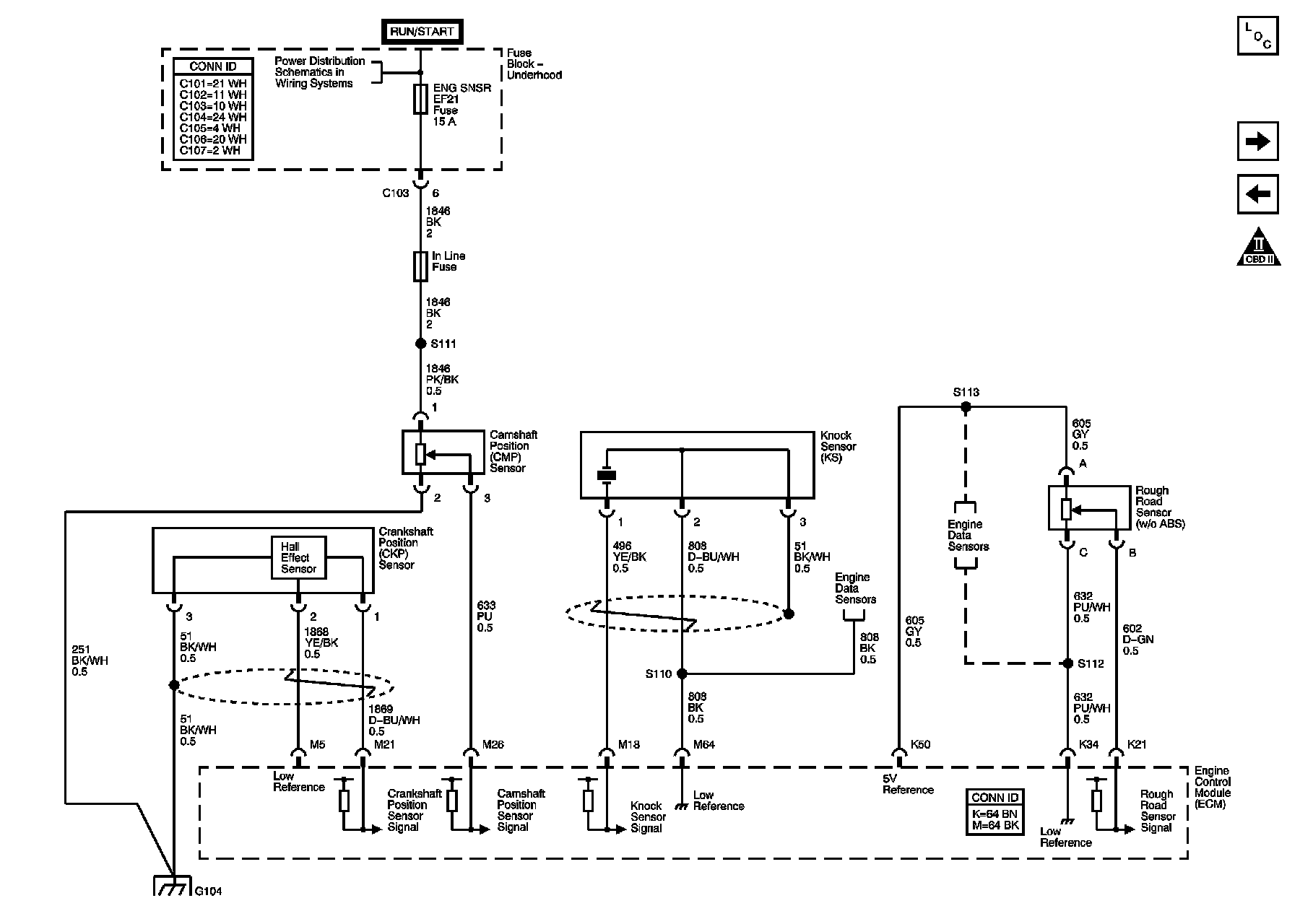

CKP, CMP, Knock, Rough Road Sensors

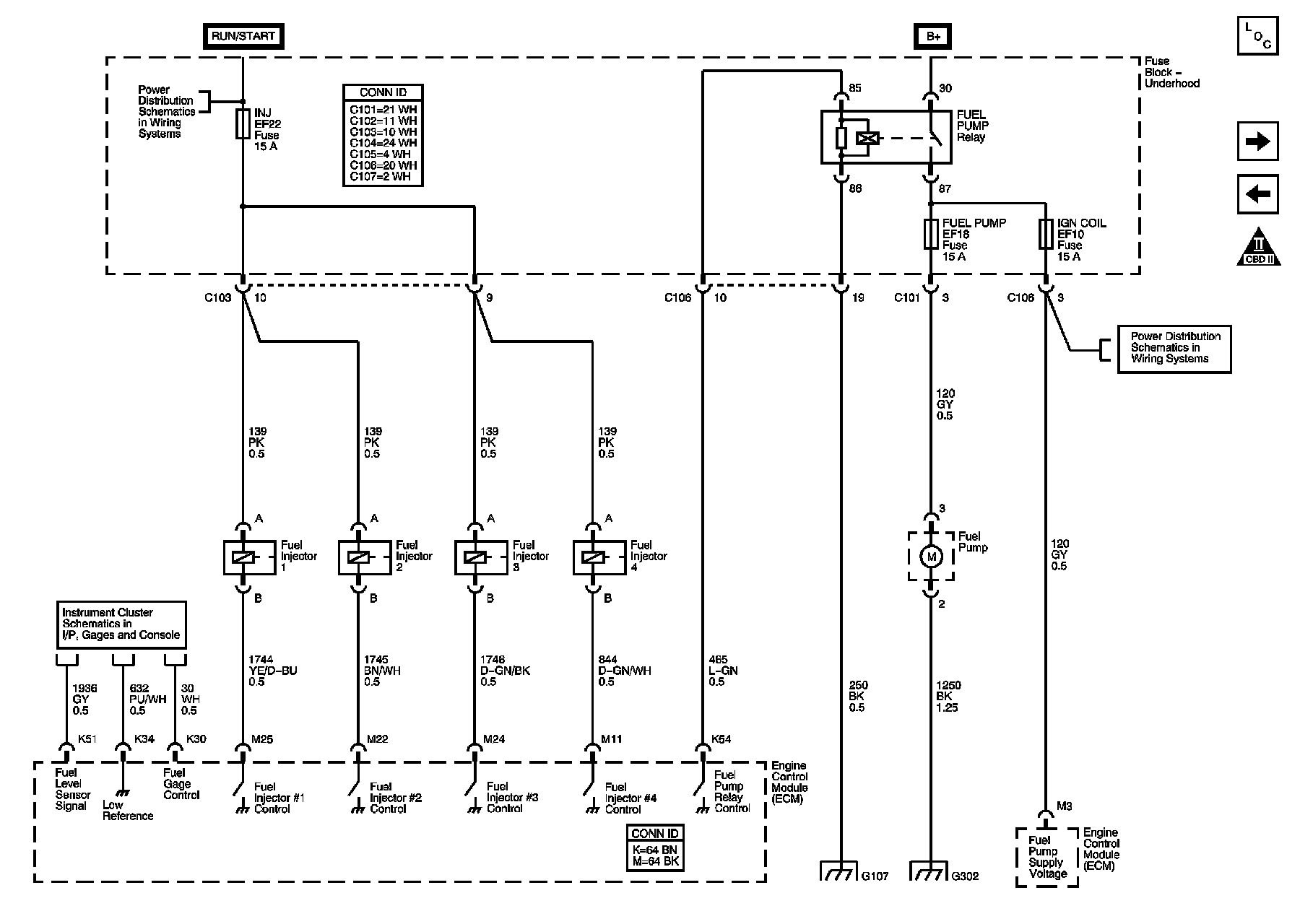

Fuel Pump and Fuel Injectors

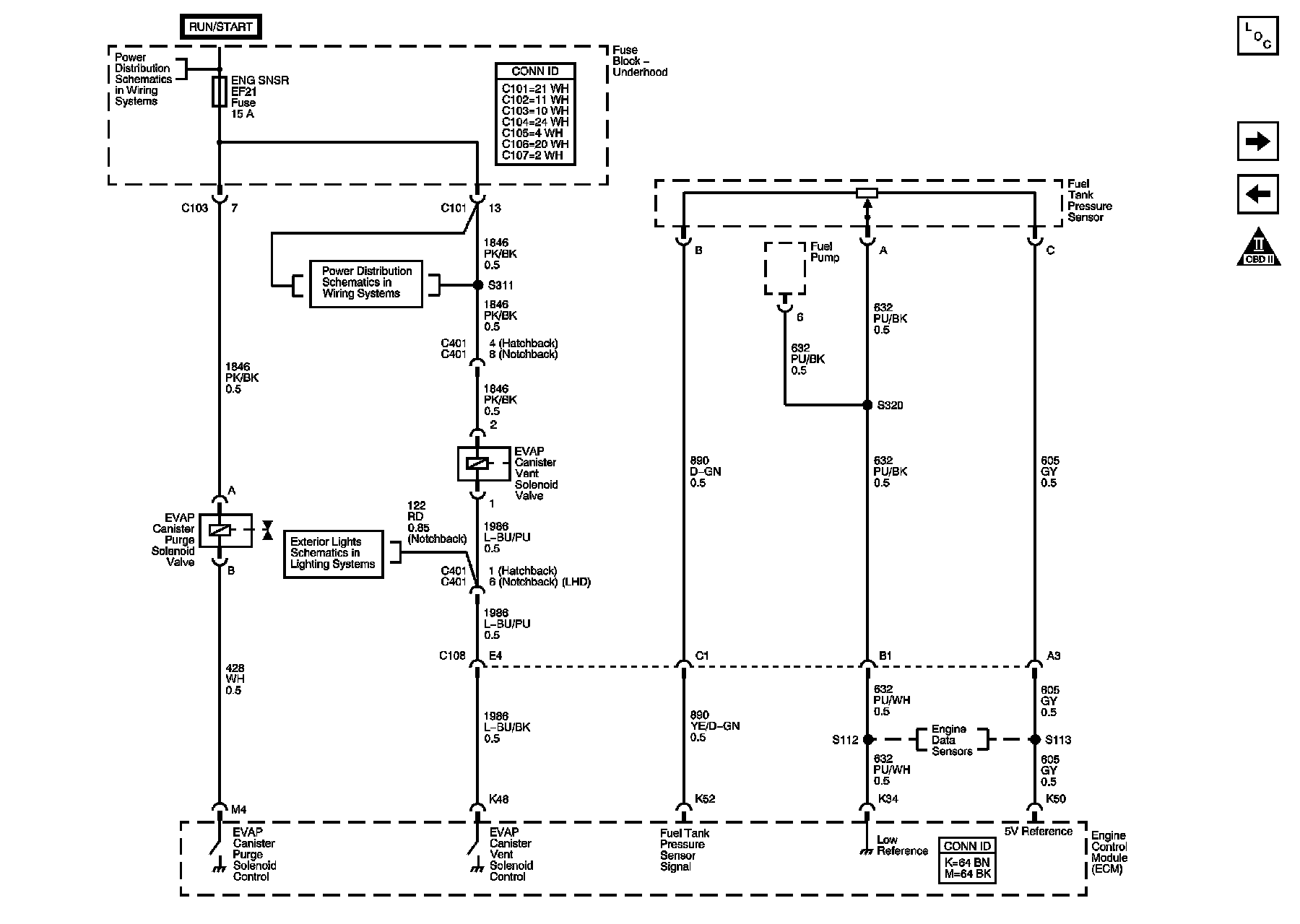

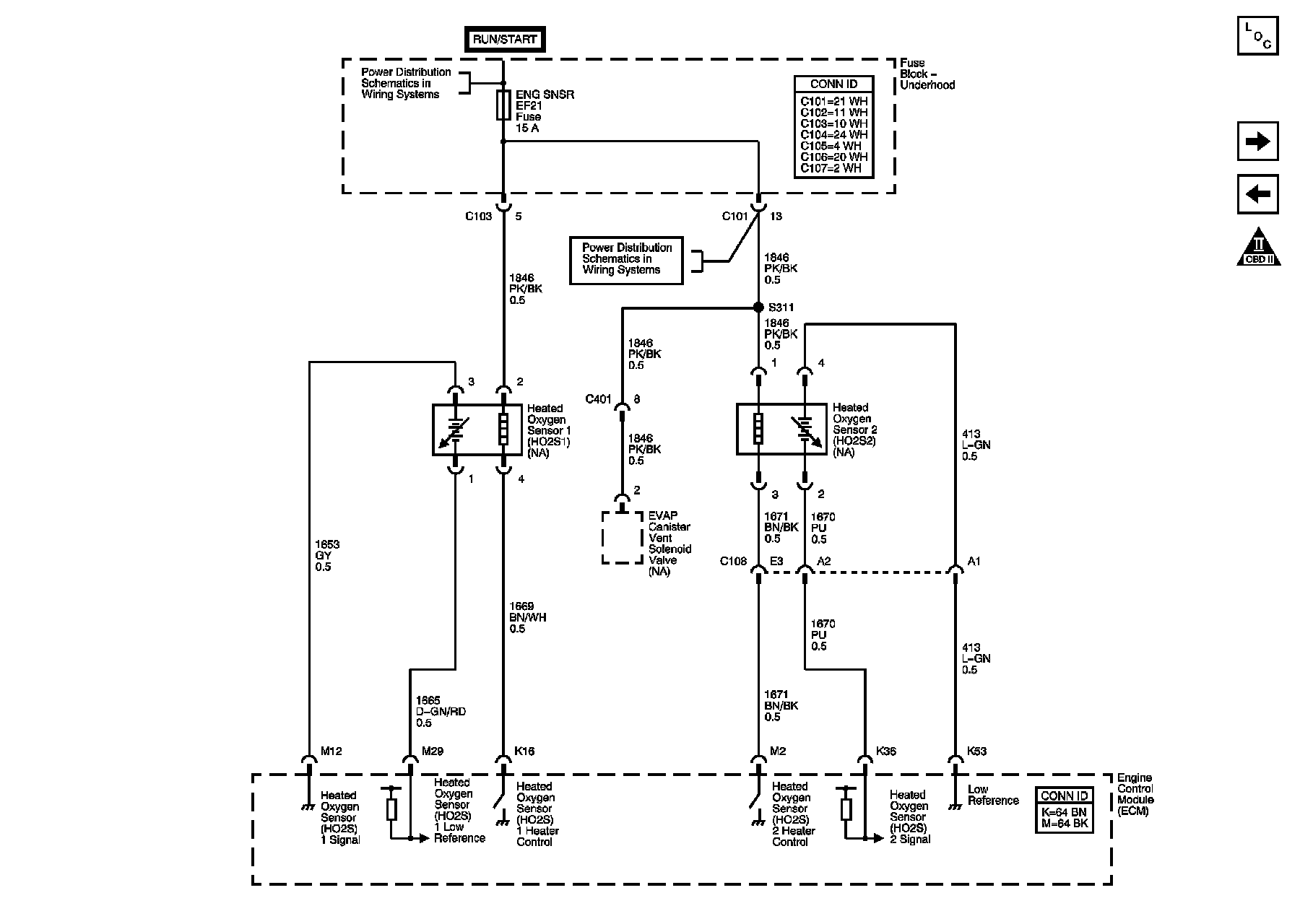

Fuel Controls - EVAP Controls

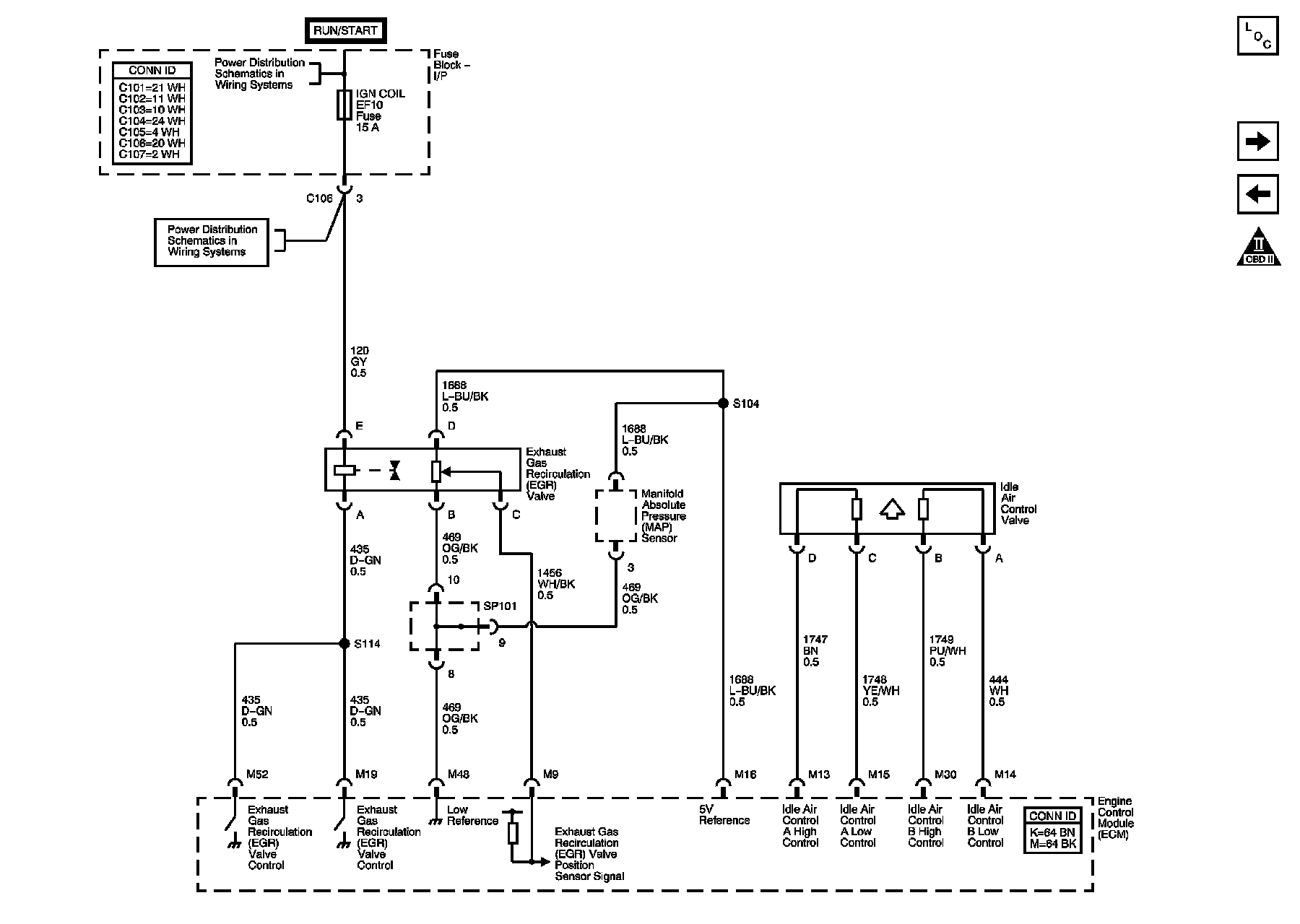

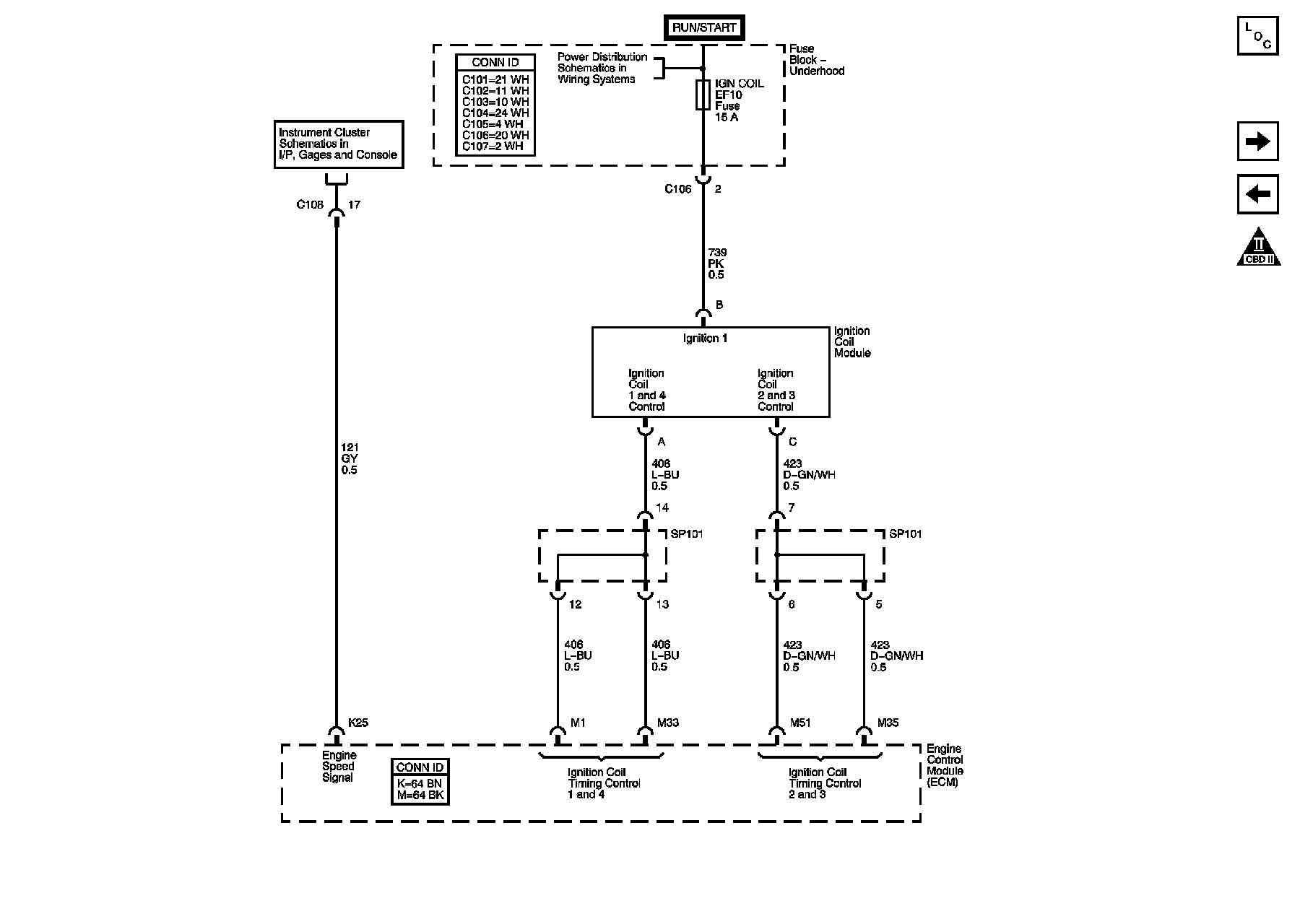

Device Controls

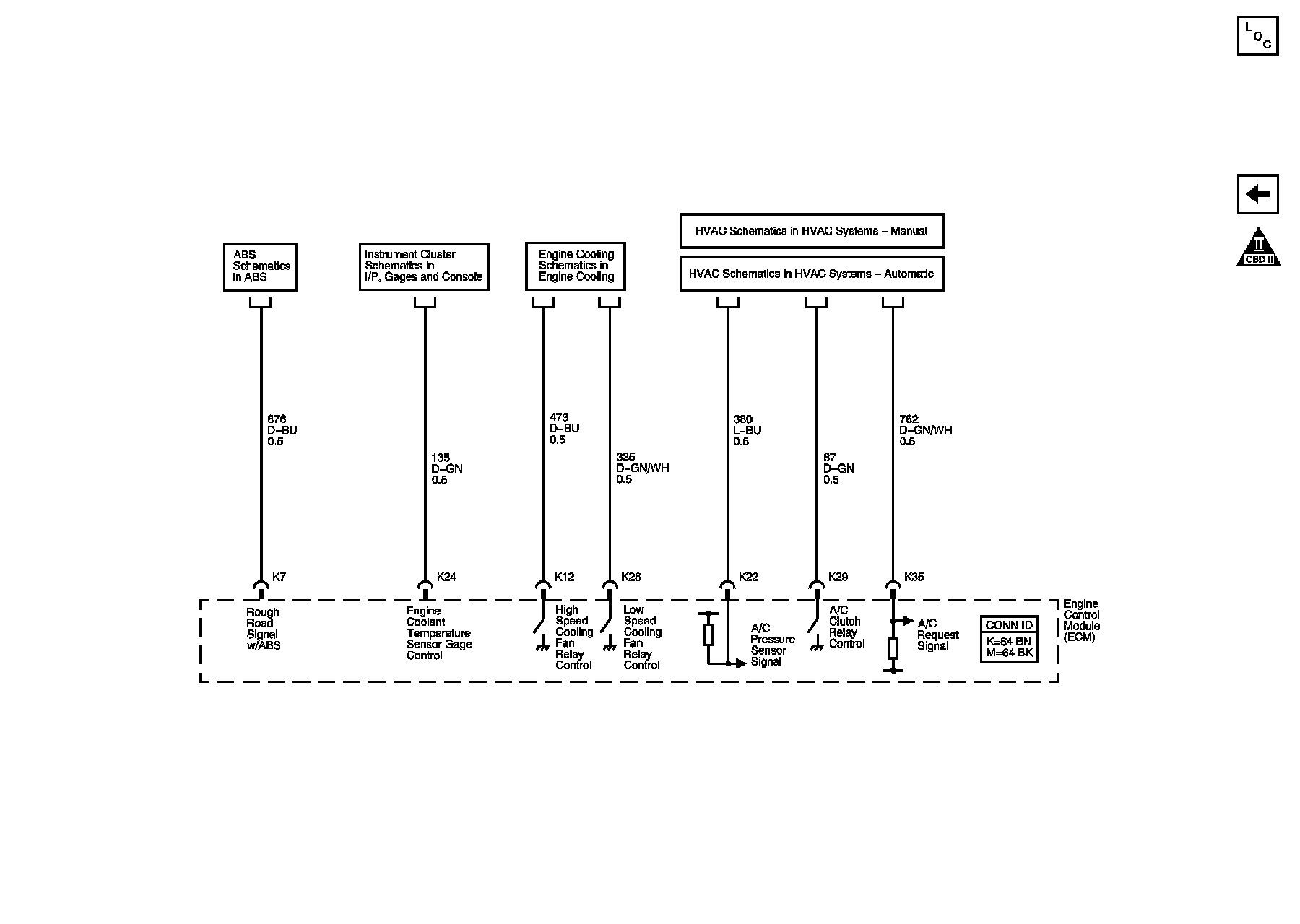

Controlled/Monitored Subsystem References
