Instrument Cluster Schematics




Instrument Cluster Schematics

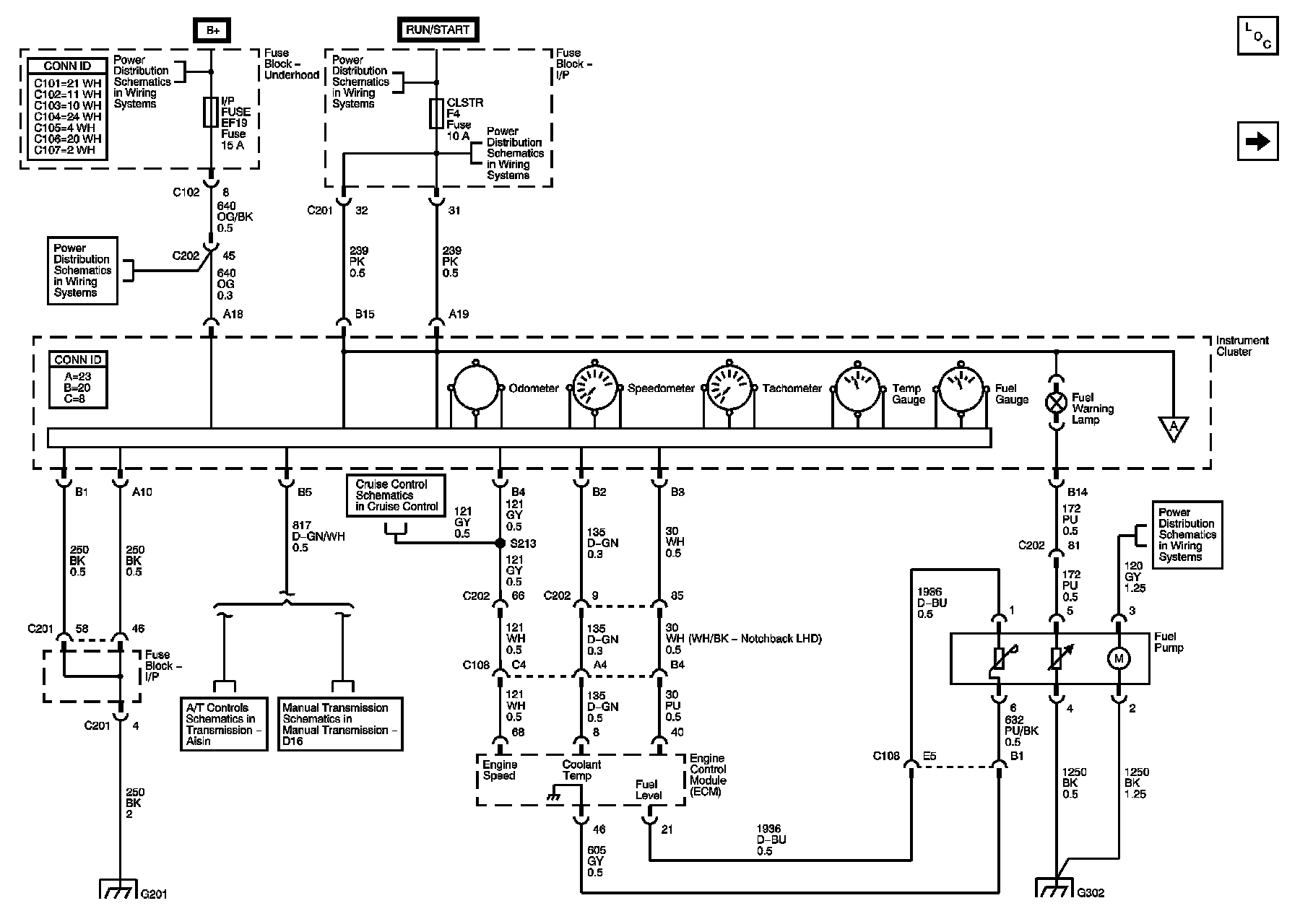

Power, Ground and Gages - 1.4L/1.6L

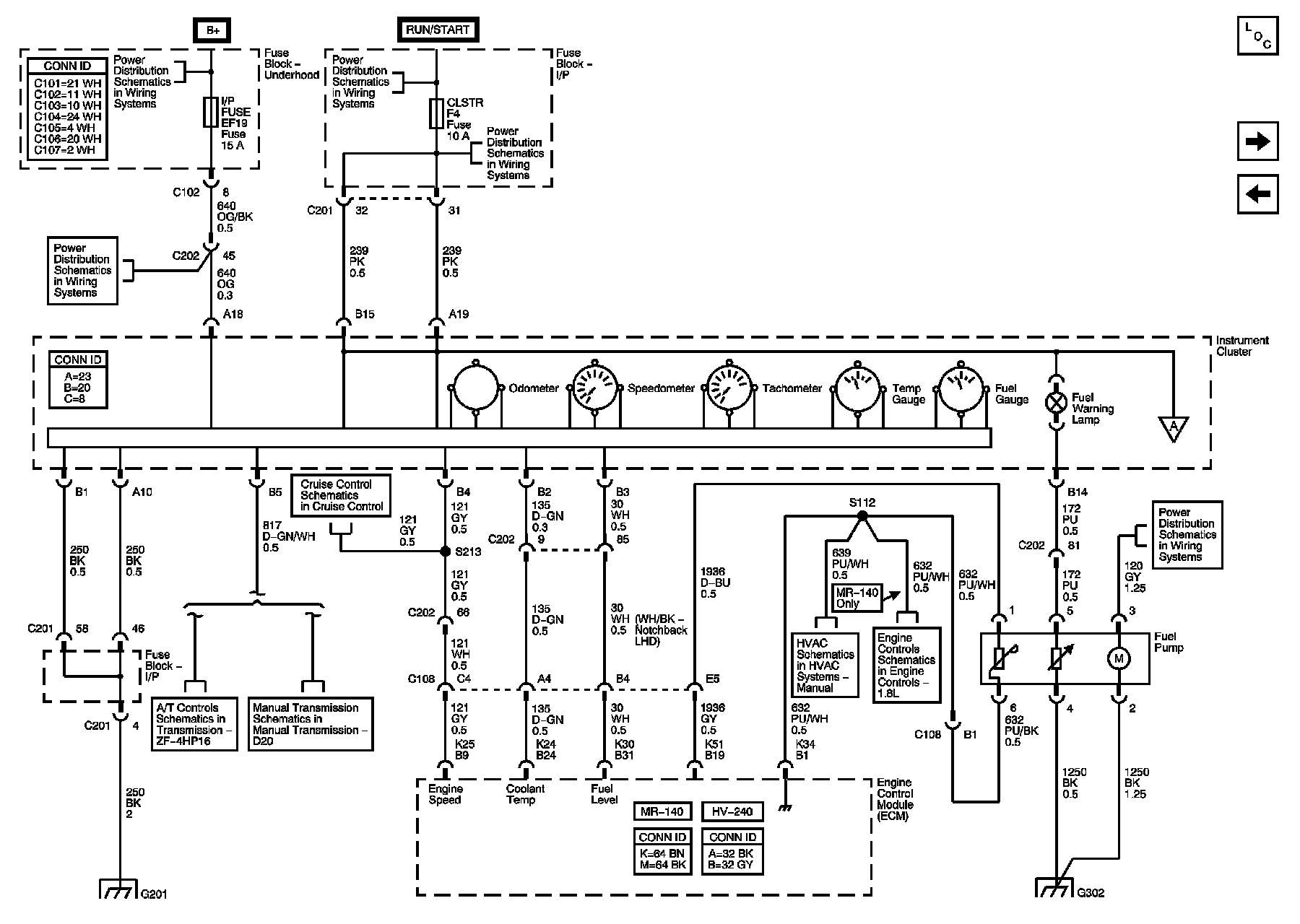

Power, Ground and Gages - 1.8L/2.0L

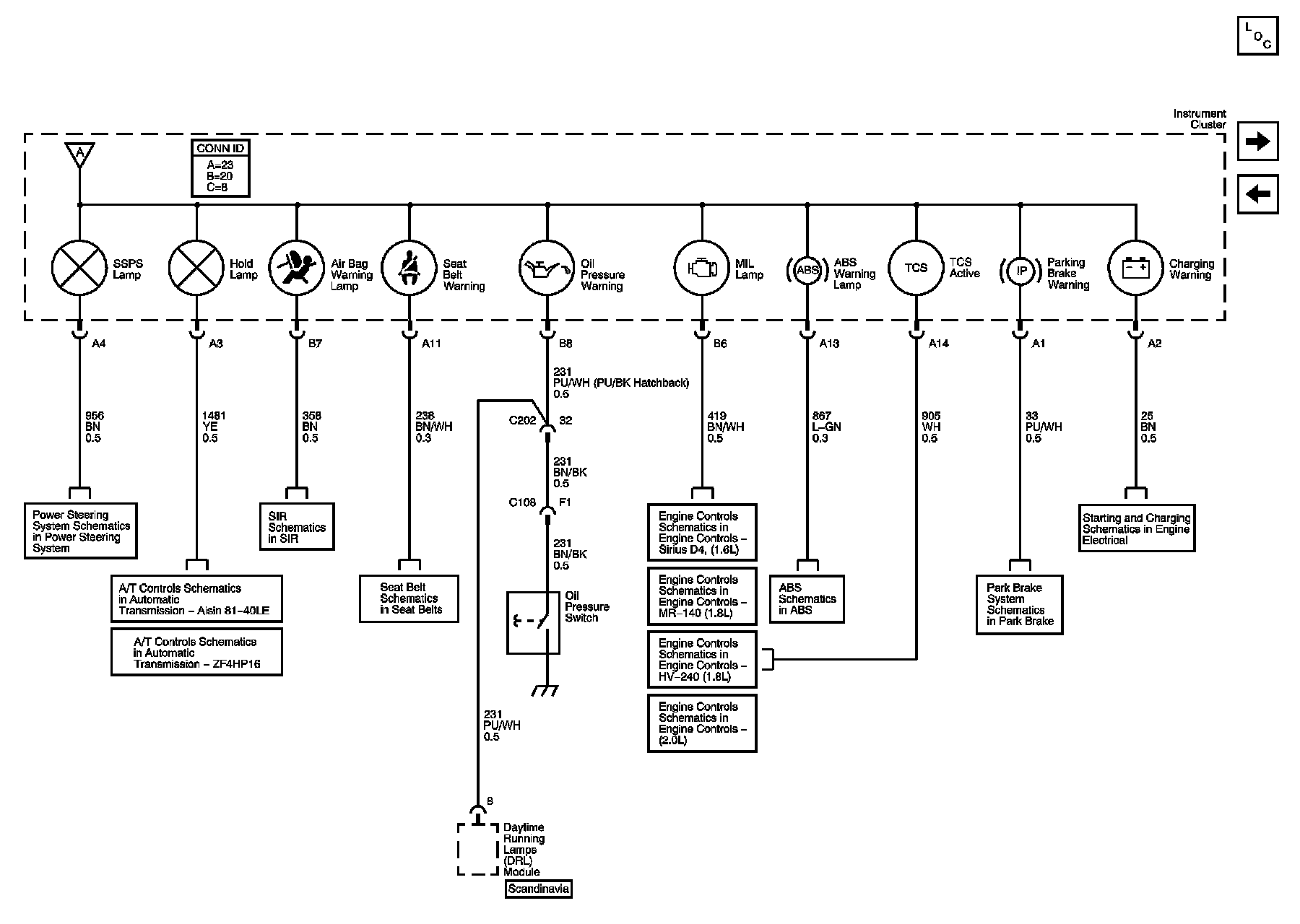

Power Steering, Shift Program, Air Bag, Seat Belt, Oil Pressure, MIL, ABS, TCS, Parking Brake, and Charging Warning Lamps

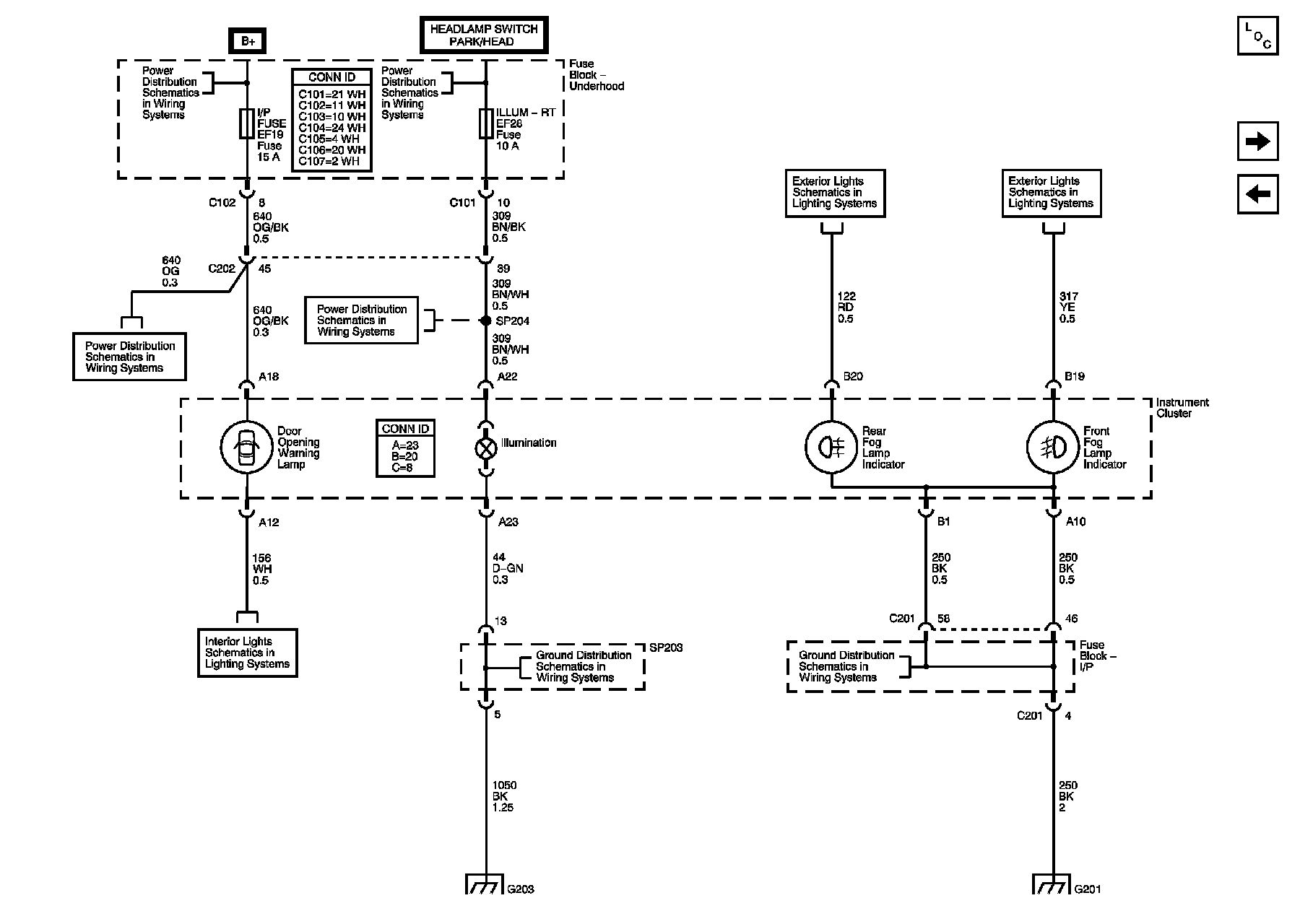

I/P Illumination, Door Open and Fog Lamp Indicators

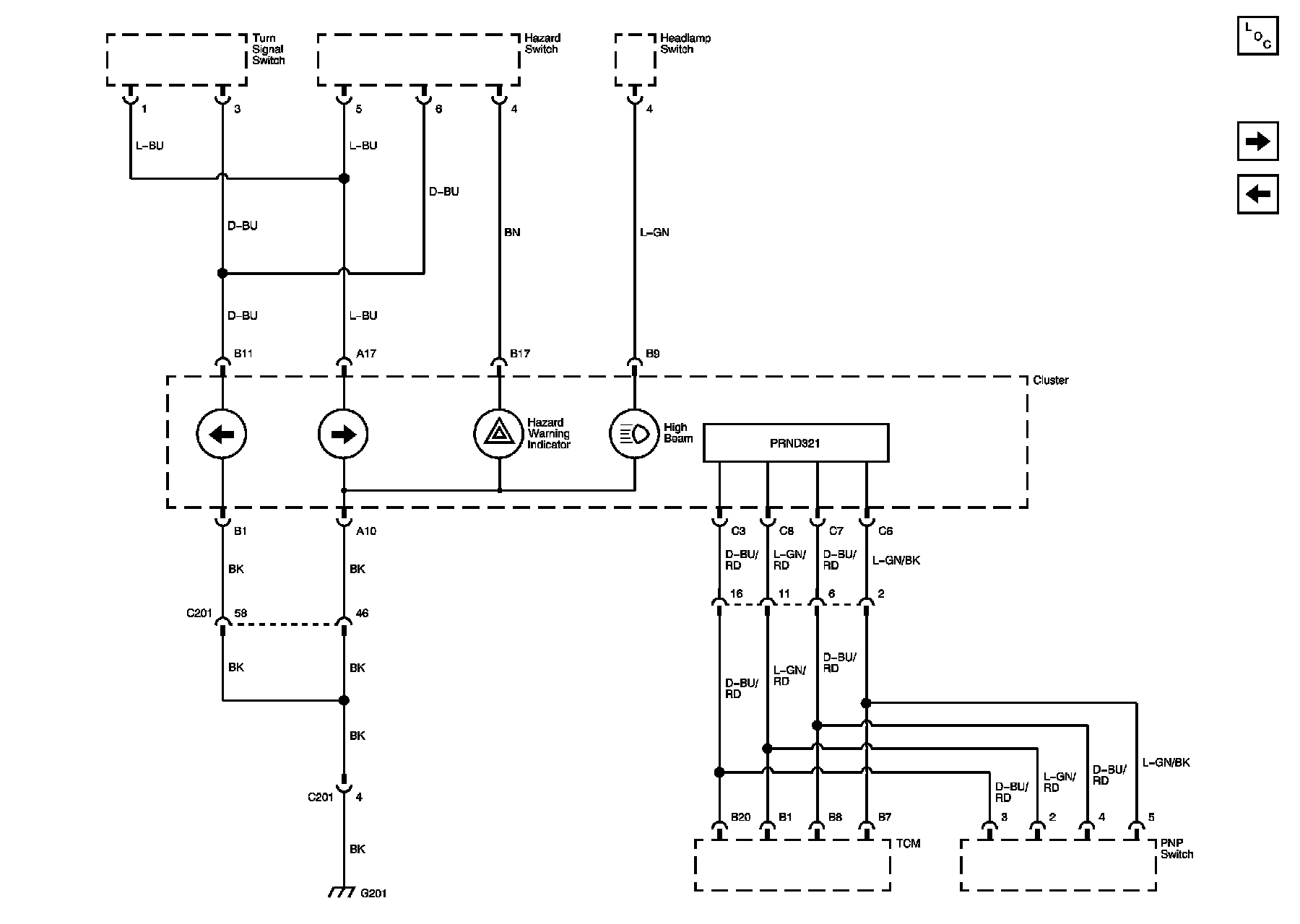

Cluster - PRNDL, Turn Signal, Hazard, and High Beam Indicators - 1.8L and 2.0L





Turn Signal, Hazard, and High Beam Indicators - PRNDL Illumination
