Antilock Brake System Schematics
ABS Schematics

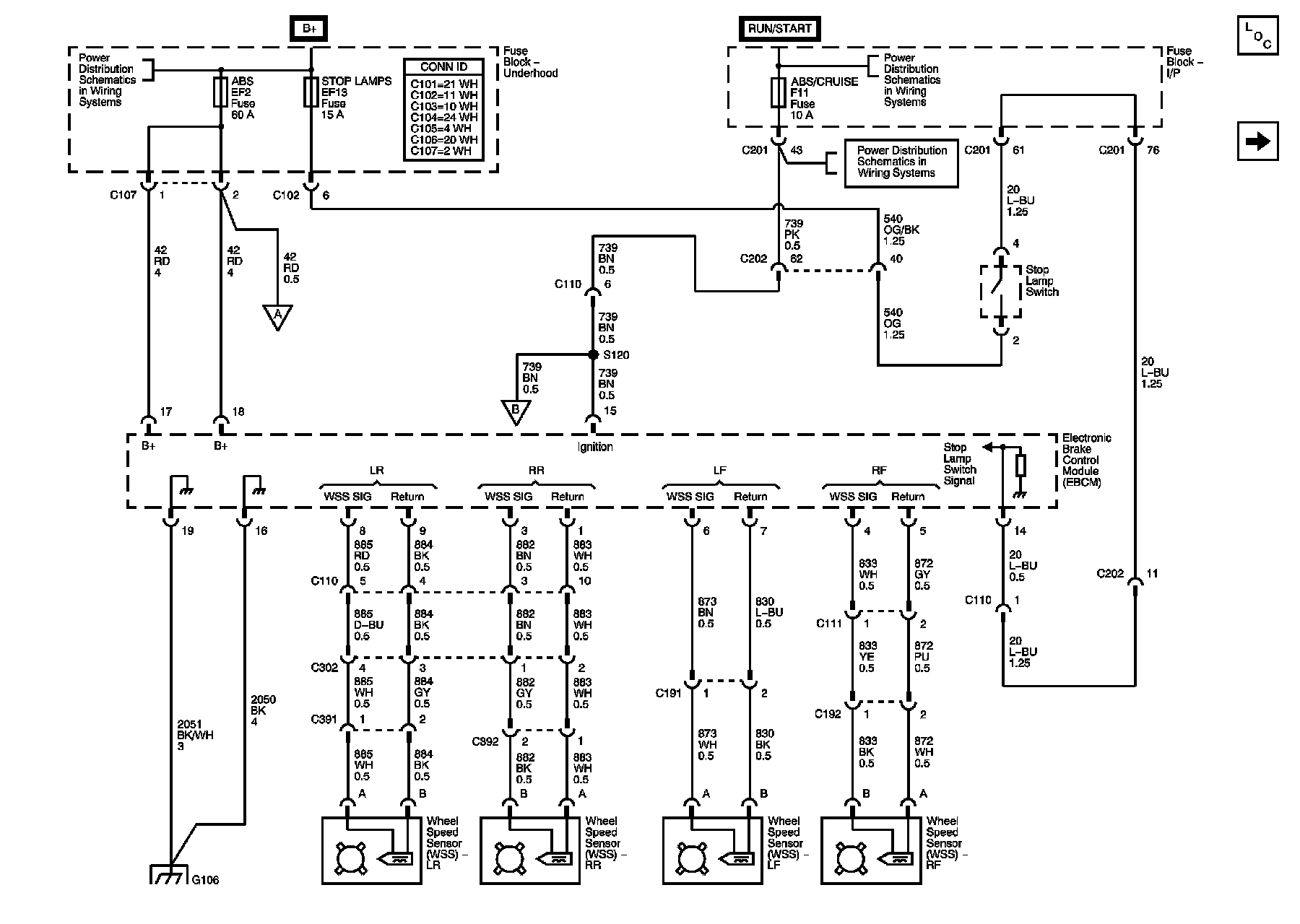

Powers, Grounds,
Wheel Speed Sensors

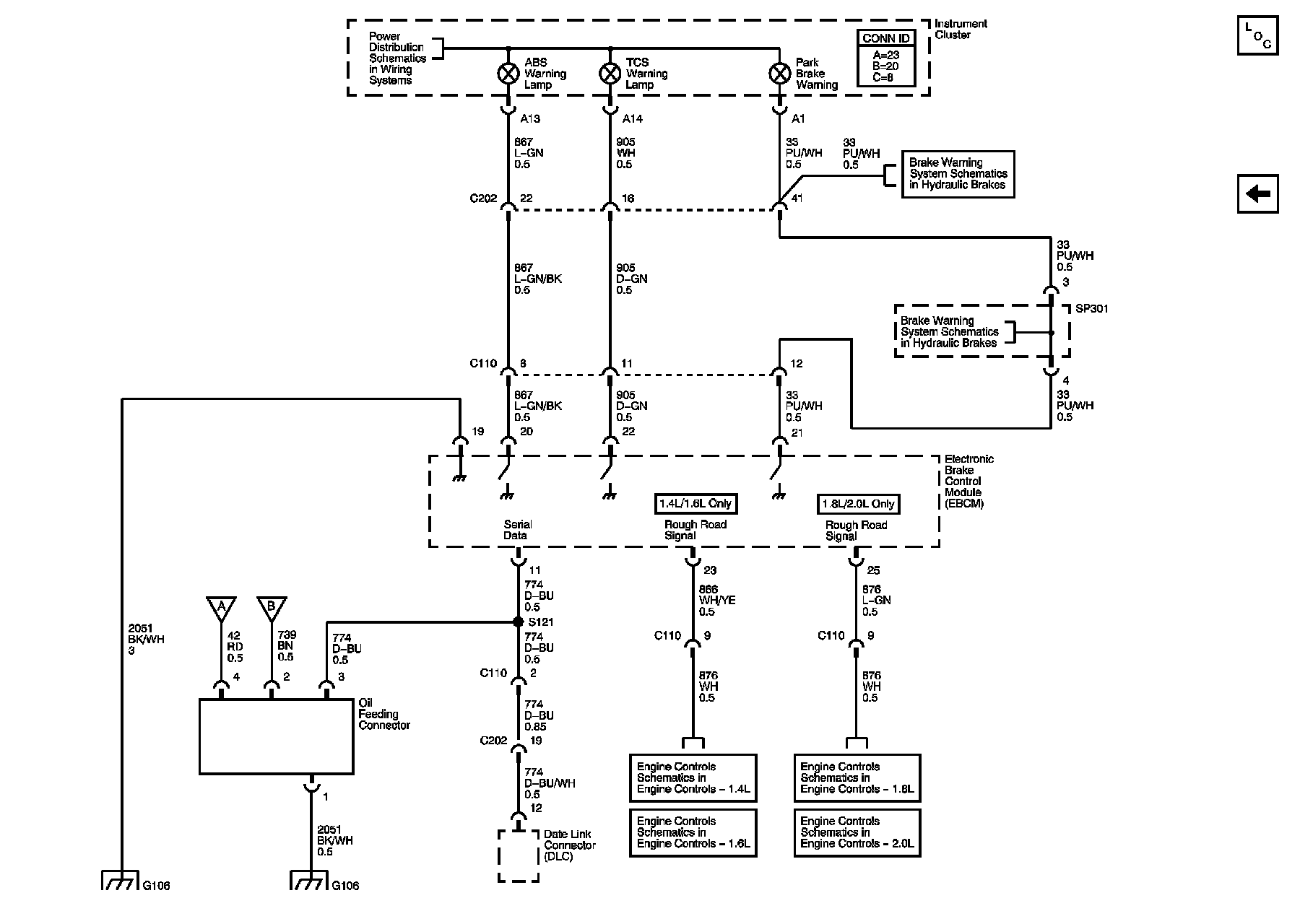

Warning Lamps, Serial Data, Rough Road
