Brake Hose Replacement - Rear

Brake Hose Replacement - Rear

Removal Procedure




1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair in General Information.

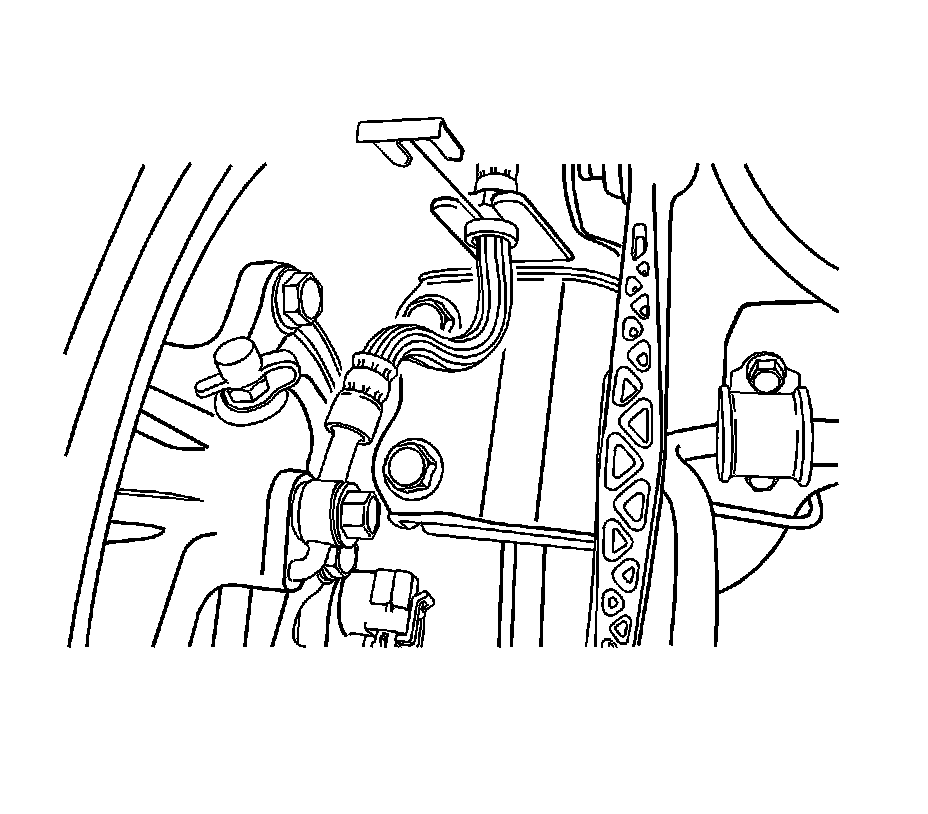

2. Remove the brake hose retainer.
3. Disconnect the brake pipe line from the disc brake hose.




4. Remove the rear disc brake hose retainer and the brake hose from the bracket on the steering knuckle shaft.




5. Remove the rear disc brake hose from the caliper.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

1. Connect the brake pipe line to the brake hose.

Tighten the brake line to 16 Nm (12 lb ft).

2. Install the retainer onto the rear brake hose bracket from the wheel house.




3. Install the rear disc brake hose to the caliper.

Tighten the rear disc brake hose-to-caliper bolt to 32 Nm (24 lb ft).

4. Install the rear disc brake hose and retainer on the bracket on the steering knuckle shaft.
5. Lower the vehicle.
6. Bleed the brake system. Refer to Hydraulic Brake System Bleeding (Manual) Hydraulic Brake System Bleeding (Manual)Hydraulic Brake System Bleeding (ABS) Hydraulic Brake System Bleeding (ABS).
7. Inspect the brake system for leaks.
