Antilock Brakes / Traction Control Systems: Locations

ABS Component Views

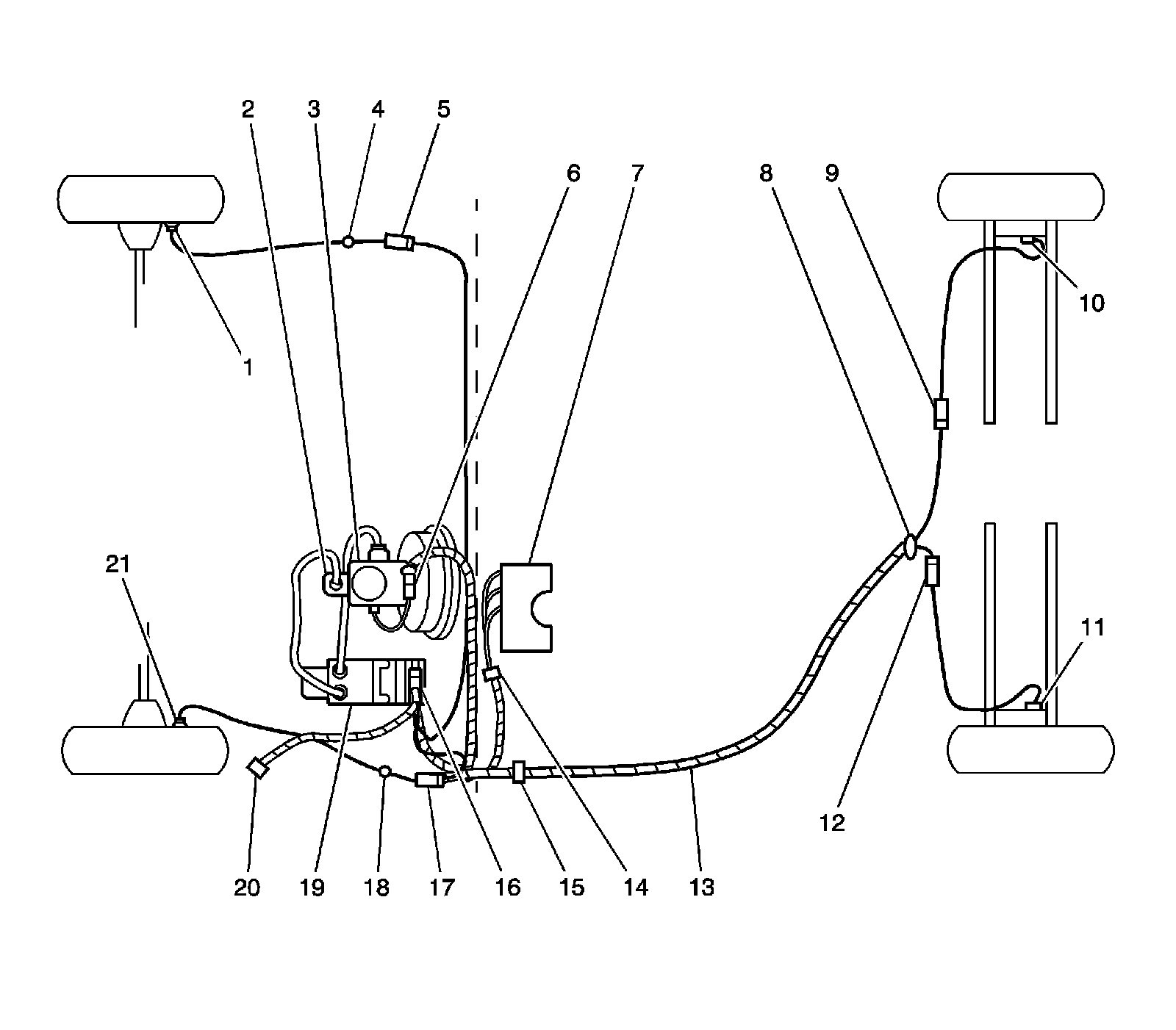

Harness Routing




1 - Right Front Wheel Speed Sensor
2 - Brake Master Cylinder
3 - Master Cylinder Reservoir
4 - Grommet
5 - Right Front Wheel Speed Sensor Connector
6 - Brake Fluid Level Switch Connector
7 - Instrument Cluster
8 - Connector C901
9 - Right Rear Wheel Speed Sensor Connector
10 - Right Rear Wheel Speed Sensor
11 - Left Rear Wheel Speed Sensor
12 - Left Rear Wheel Speed Sensor Connector
13 - Body Wiring Harness
14 - Connector C202
15 - Connectors C110
16 - EBCM Connector
17 - Left Front Speed Sensor Connector
18 - Grommet
19 - Hydraulic Modulator with Attached EBCM
20 - Connector C107
21 - Left Front Wheel Speed Sensor

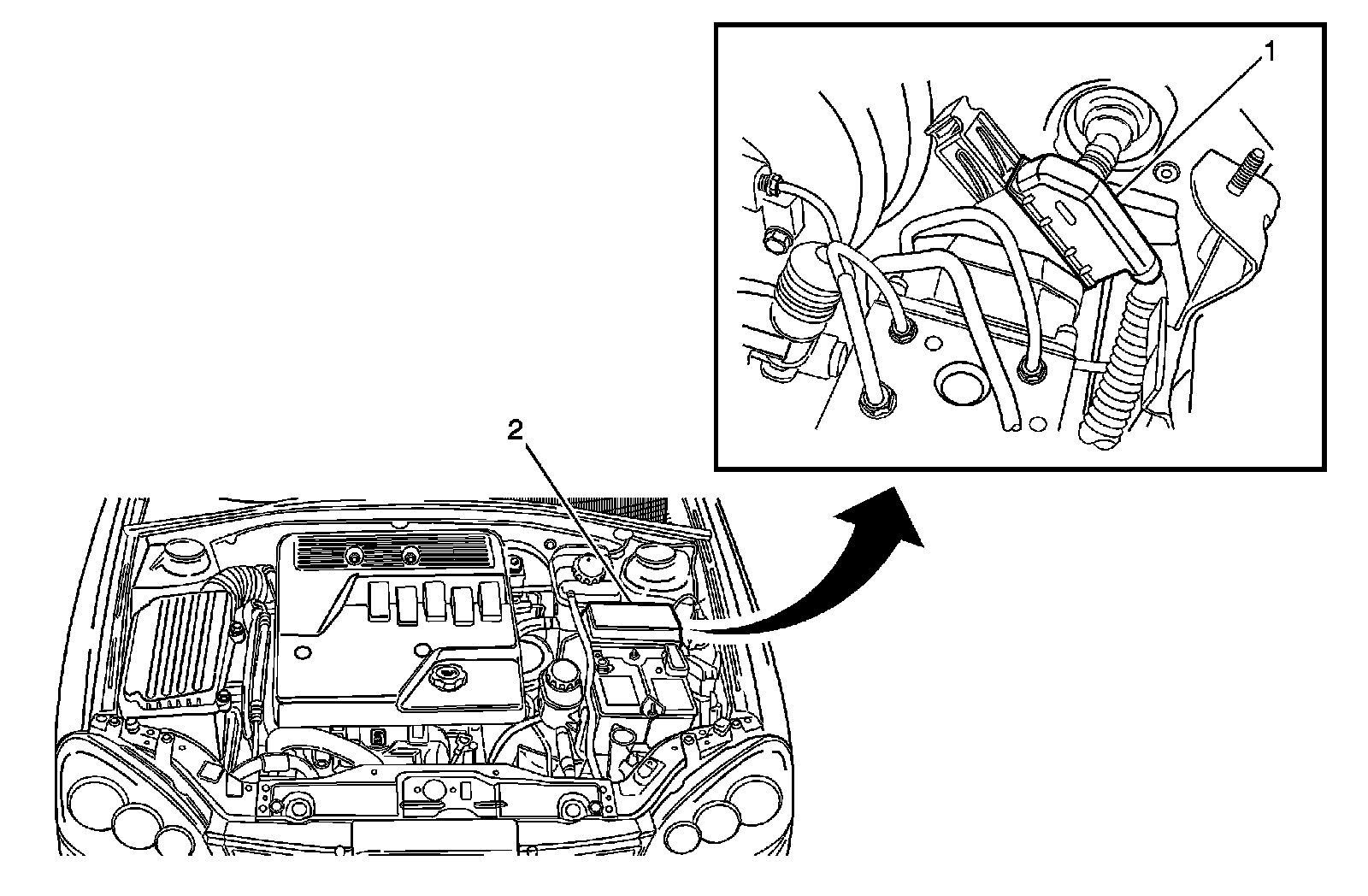

Electronic Brake Control Module (EBCM)




1 - Electronic Brake Control Module (EBCM)
2 - Oil Feeding Connector

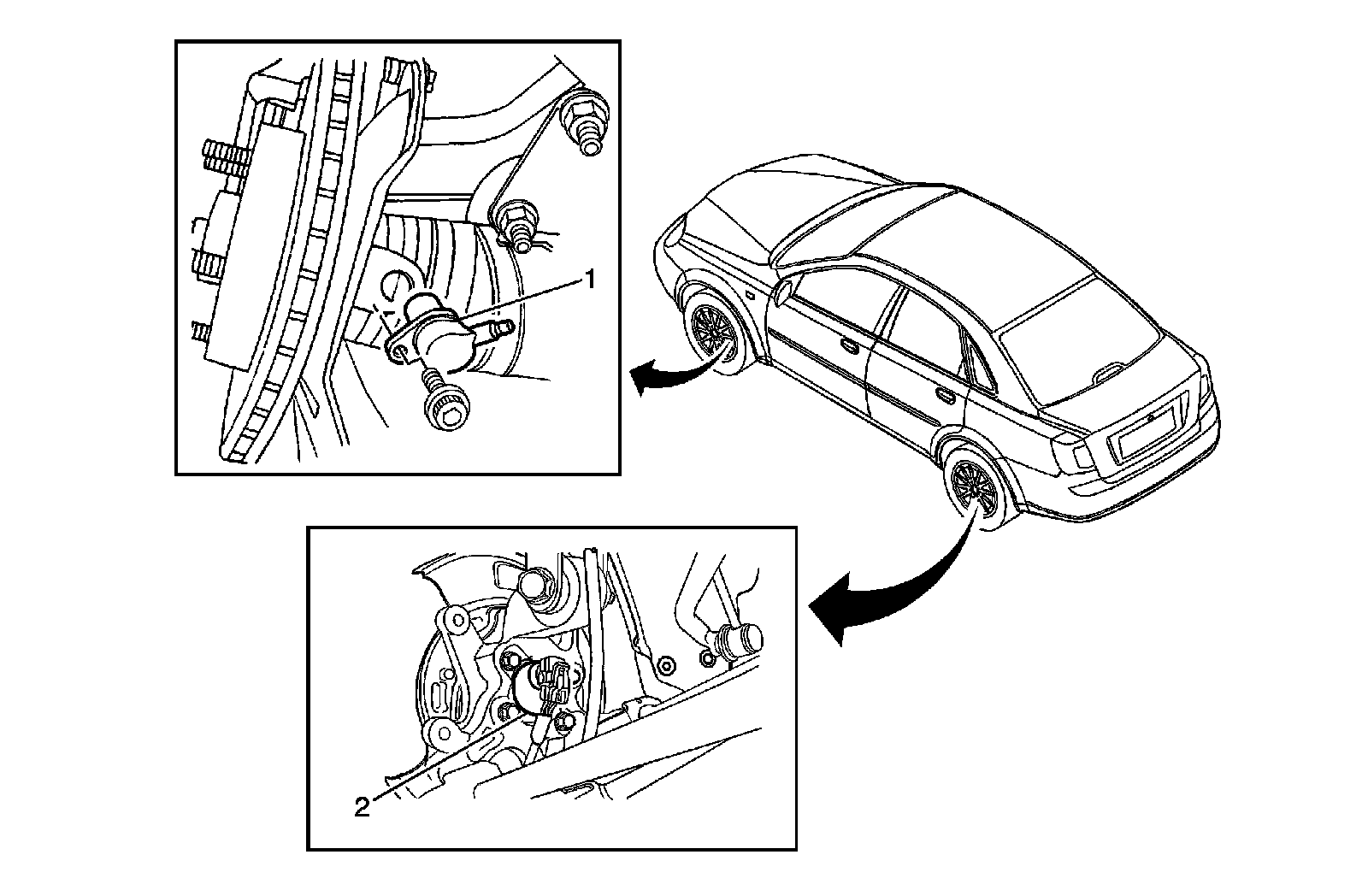

Wheel Speed Sensor (WSS)




1 - Wheel Speed Sensor (WSS) - Left Front Shown, Right Similar
2 - Wheel Speed Sensor (WSS) - Left Rear Shown, Right Similar
