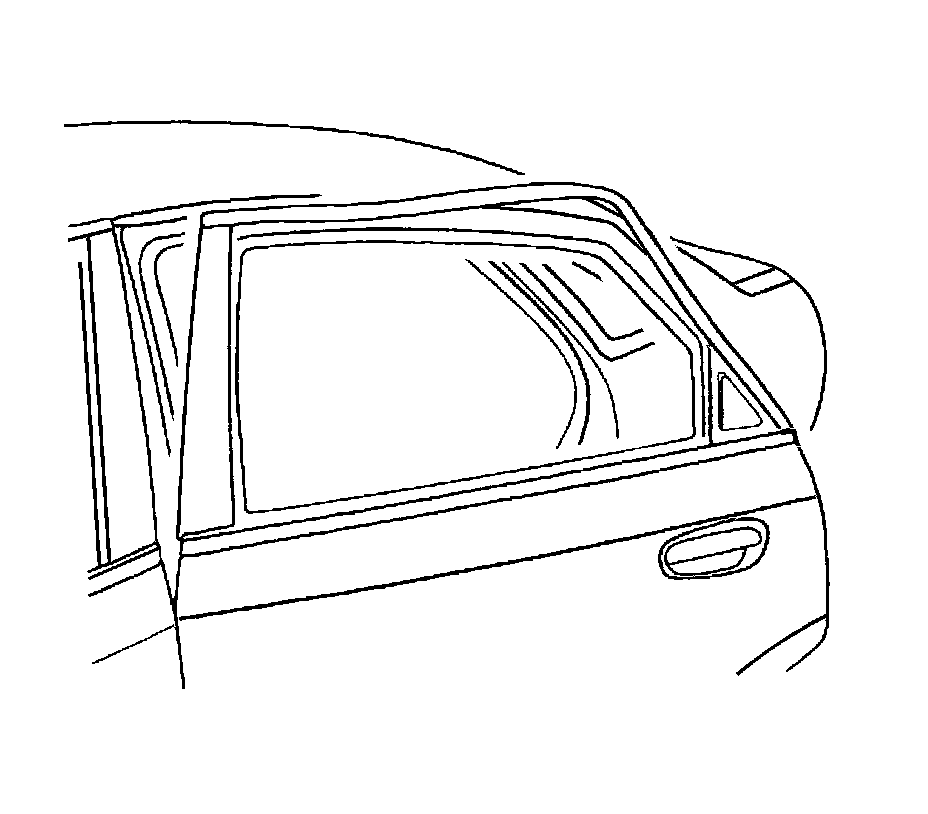

Sealing Strip Replacement - Rear Door Window Belt Outer

Sealing Strip Replacement - Rear Door Window Belt Outer

Removal Procedure




1. Remove the interior garnish molding.
2. Remove the screws and the exterior garnish molding.
3. Remove the rear door secondary weatherstrip.

Installation Procedure




1. Install the rear door secondary weatherstrip.

Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

2. Install the exterior garnish molding with the screws
3. Install the interior garnish molding.
