Sealing Strip Replacement - Outer Belt

Sealing Strip Replacement - Outer Belt

Removal Procedure




1. Lower the window completely.

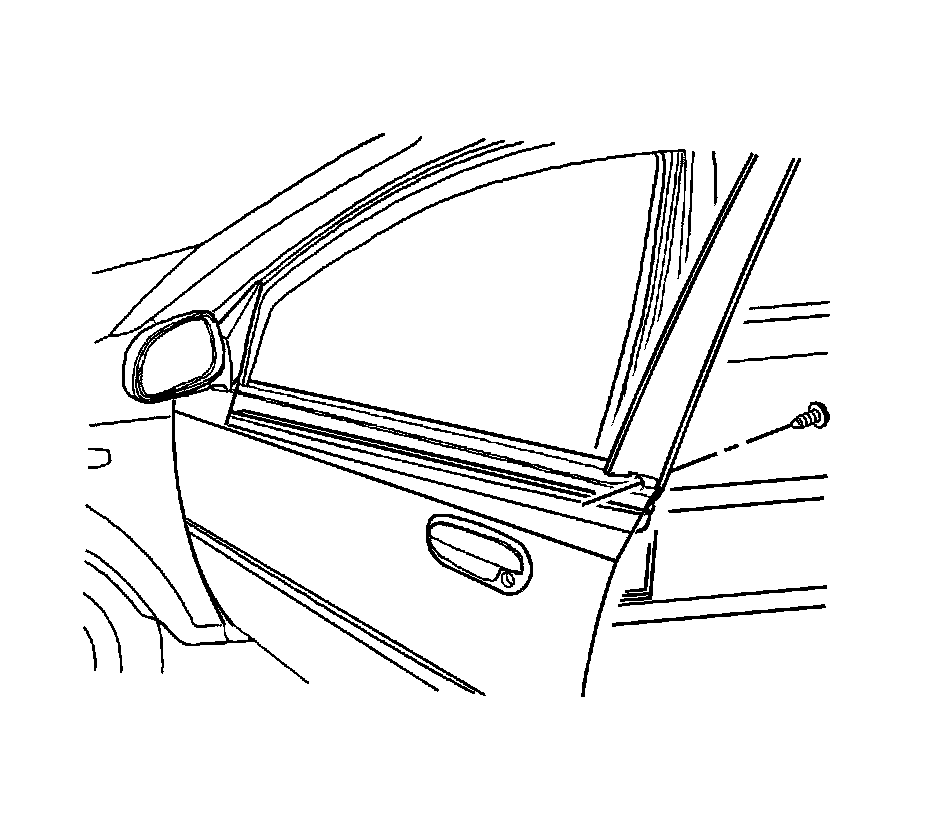

2. Remove the outside channel molding screw.
3. Lift the outside channel molding off the door.

Installation Procedure




1. Press the outside channel molding onto the door.

Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

2. Install the outside channel molding screw.

Tighten the outside channel molding screw to 1.3 Nm (12 lb in).

3. Raise the window.
