Weatherstrip Replacement - Front Door Opening

Weatherstrip Replacement - Front Door Opening

Removal Procedure




1. Remove the kick panel, the front rocker panel, and the lower center pillar trim panel. Refer to Trim Panel Replacement - Hinge Pillar Trim Panel Replacement - Hinge Pillar , to Door Sill Plate Replacement - Front Door Sill Plate Replacement - Front , and to Trim Panel Replacement - Lower Center Pillar Trim Panel Replacement - Lower Center Pillar in Interior Trim.

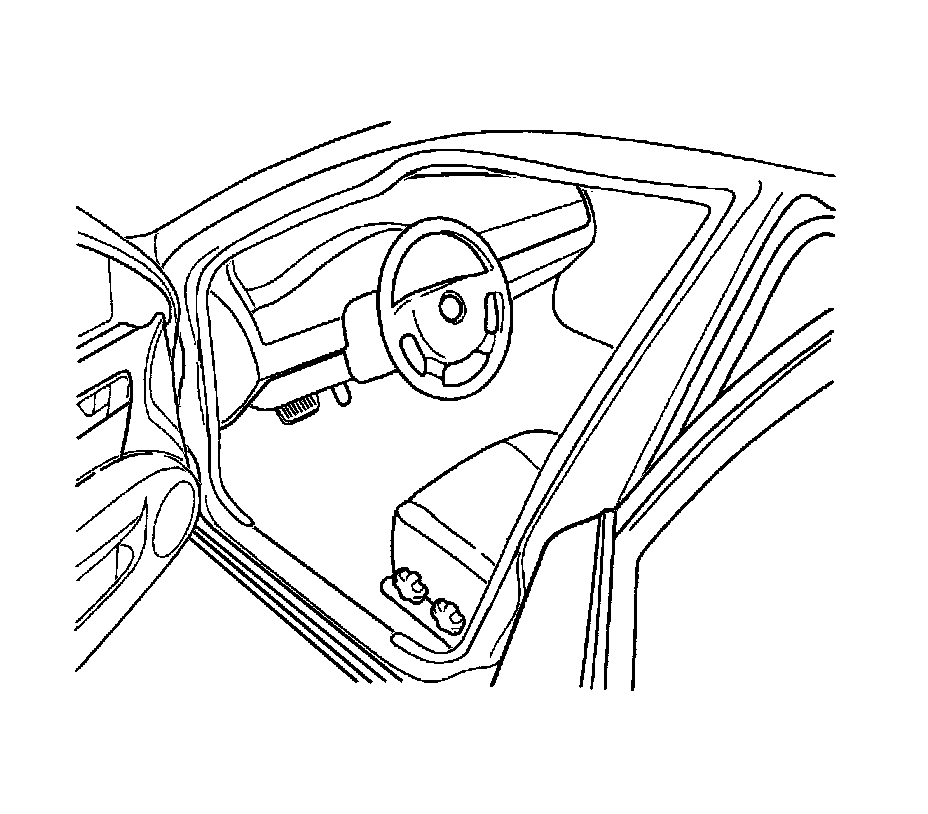

2. Remove the front door opening weatherstrip.

Installation Procedure




1. Install the front door opening weatherstrip.
2. Install the kick panel, the front rocker panel, and the lower center pillar trim panel. Refer to Trim Panel Replacement - Hinge Pillar Trim Panel Replacement - Hinge Pillar , to Door Sill Plate Replacement - Front Door Sill Plate Replacement - Front , and to Trim Panel Replacement - Lower Center Pillar Trim Panel Replacement - Lower Center Pillar in Interior Trim.
