Trim Panel Replacement - Front Seat

Trim Panel Replacement - Front Seat

Removal Procedure




1. Remove the front bucket seat from the vehicle. Refer Seat Replacement - Front Bucket Seat Replacement - Front Bucket.

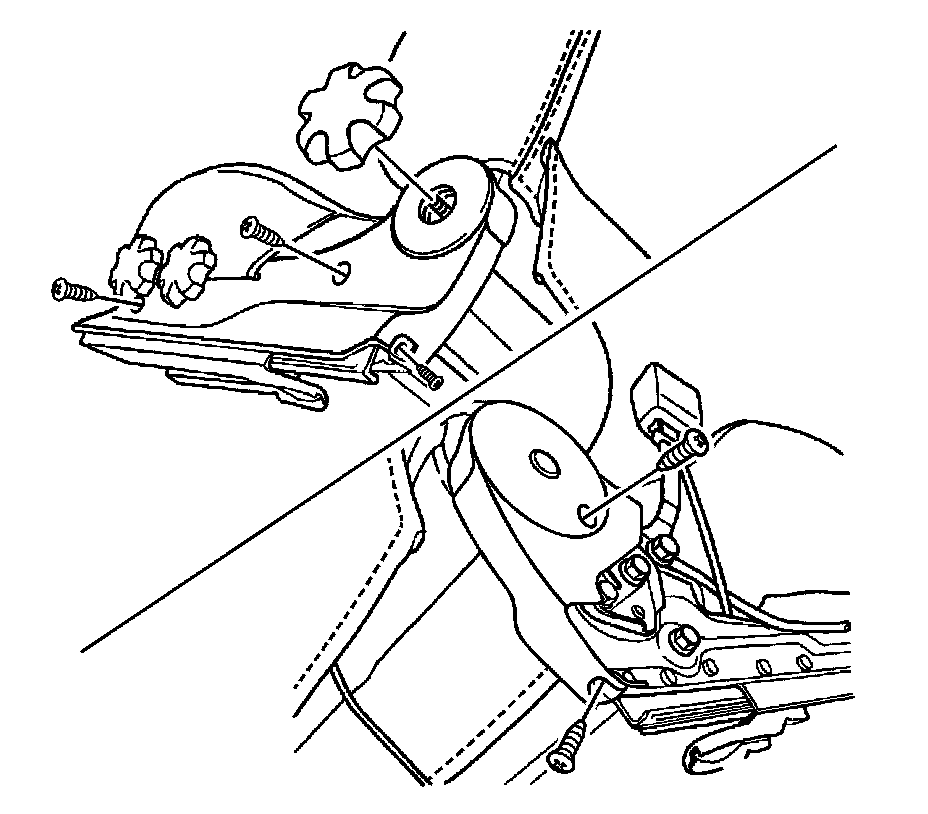

2. Remove the screws and the front seat trim.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

1. Install the front seat trim with the screws.

Tighten the front seat trim screws to 12 Nm (106 lb in).

2. Install the front bucket seat in the vehicle. Refer to Seat Replacement - Front Bucket Seat Replacement - Front Bucket.
