Sunroof / Moonroof Panel: Service and Repair

Sunroof Window Replacement

Removal Procedure




1. Tilt the sunroof up pressing the sunroof switch.

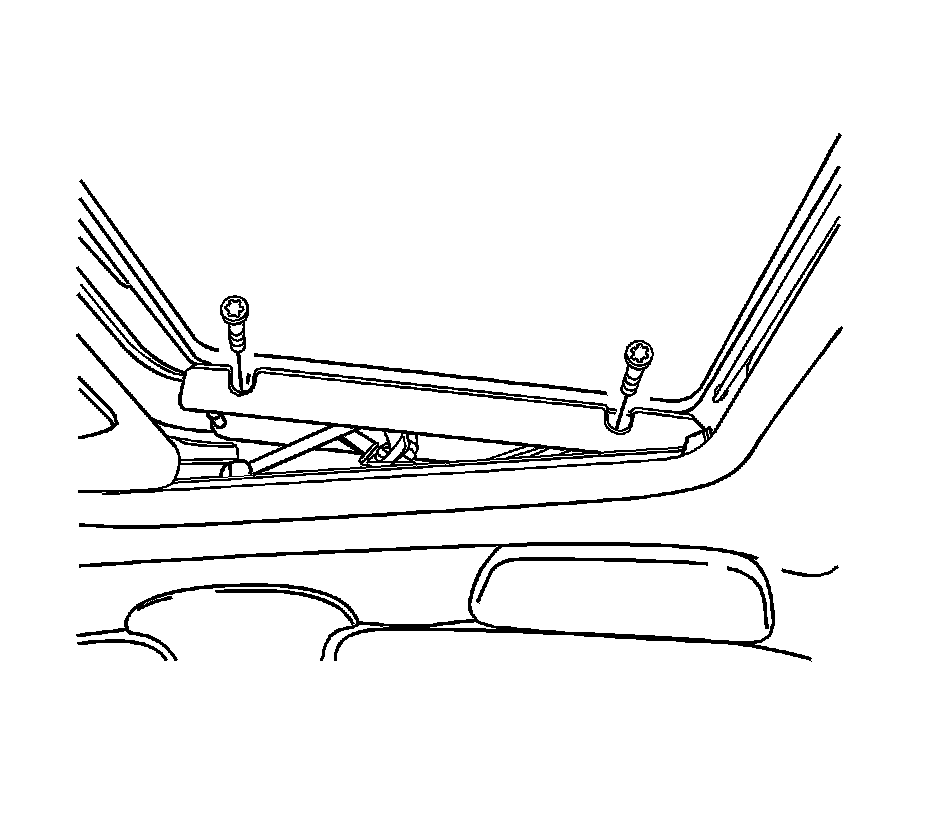

2. Remove the bolts and the sunroof glass.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

1. Install the sunroof glass with the bolts.

Tighten the sunroof glass bolts to 3 Nm (27 lb ft).

2. Return the sunroof to its original position.
