Procedures

Lock Cylinder Replacement - Door

Removal Procedure




1. Remove the door seal trim. Refer to Water Deflector Replacement - Door Service and Repair.

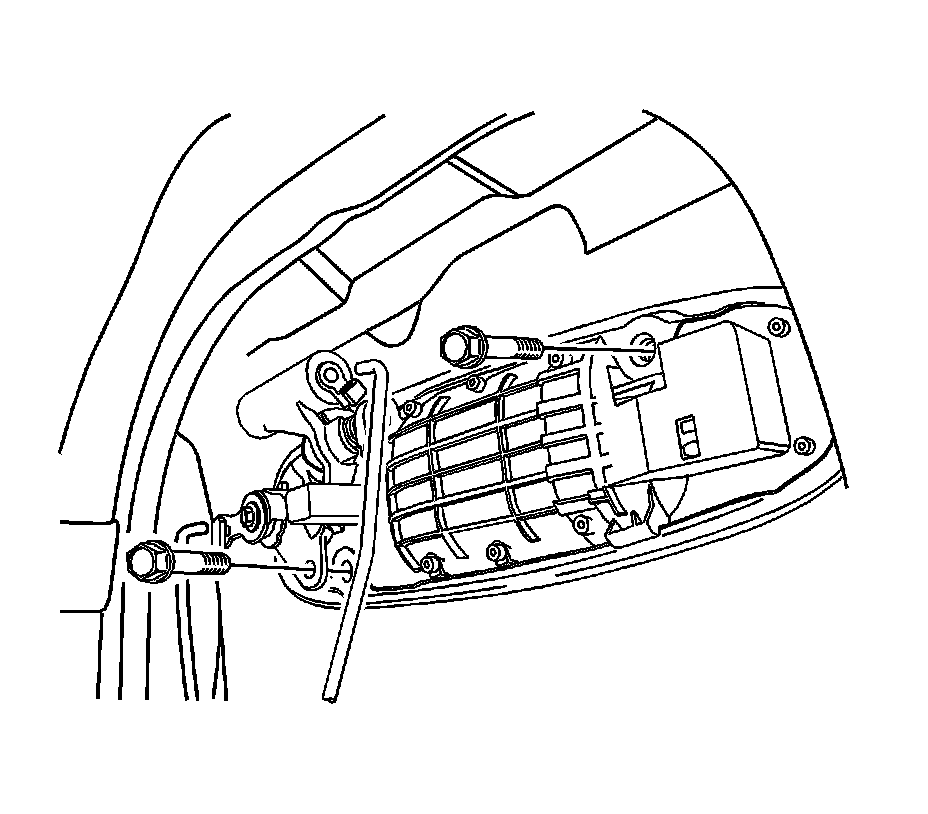

2. Disconnect the outside door handle lock rod.
3. Remove the bolt and the lock cylinder.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the lock cylinder with the bolt.

Tighten the outside door handle bolt to 4.5 Nm (40 lb in).

2. Connect the outside door handle lock rod.
3. Install the door seal trim. Refer to Water Deflector Replacement - Door Service and Repair.
