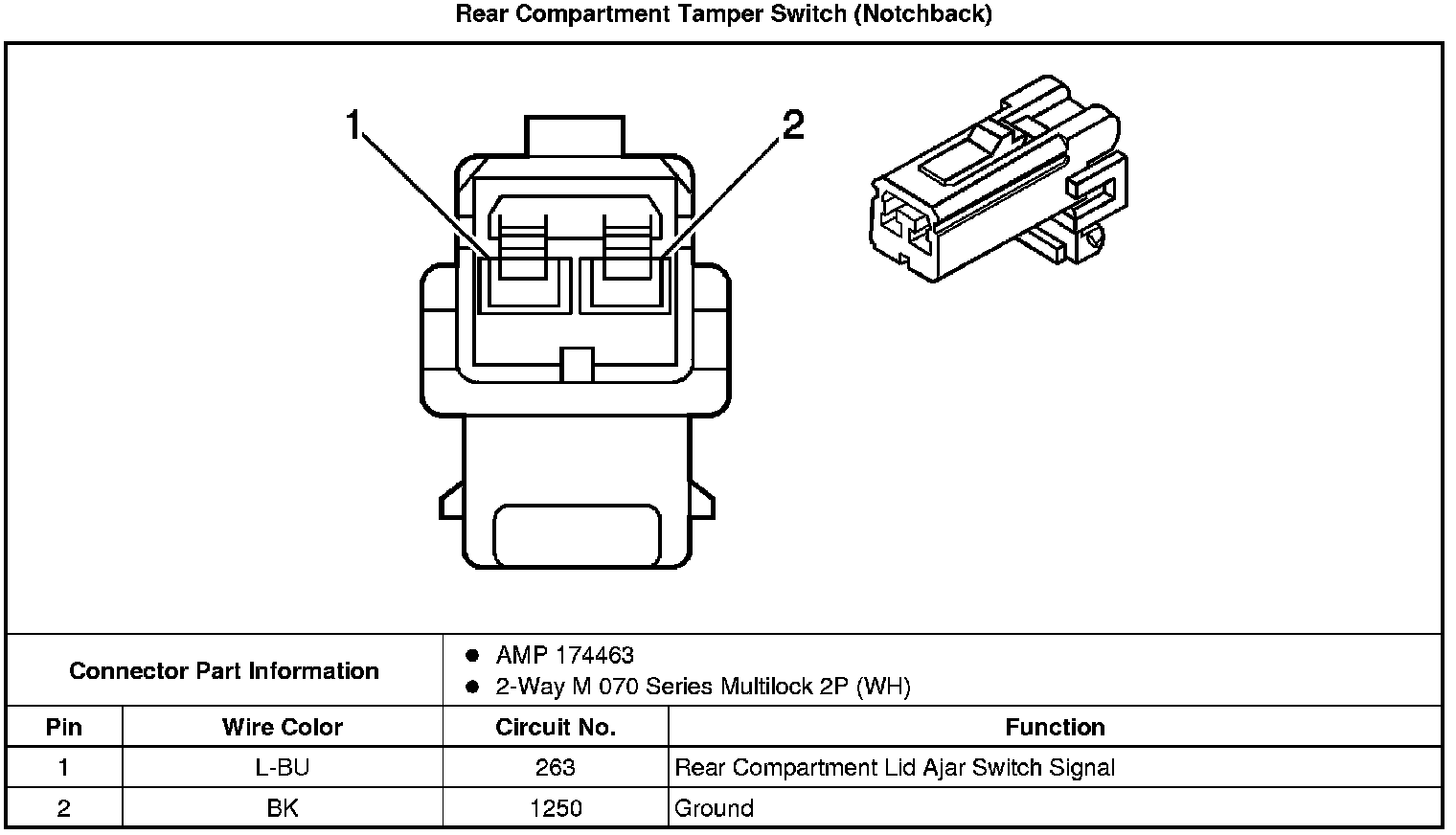

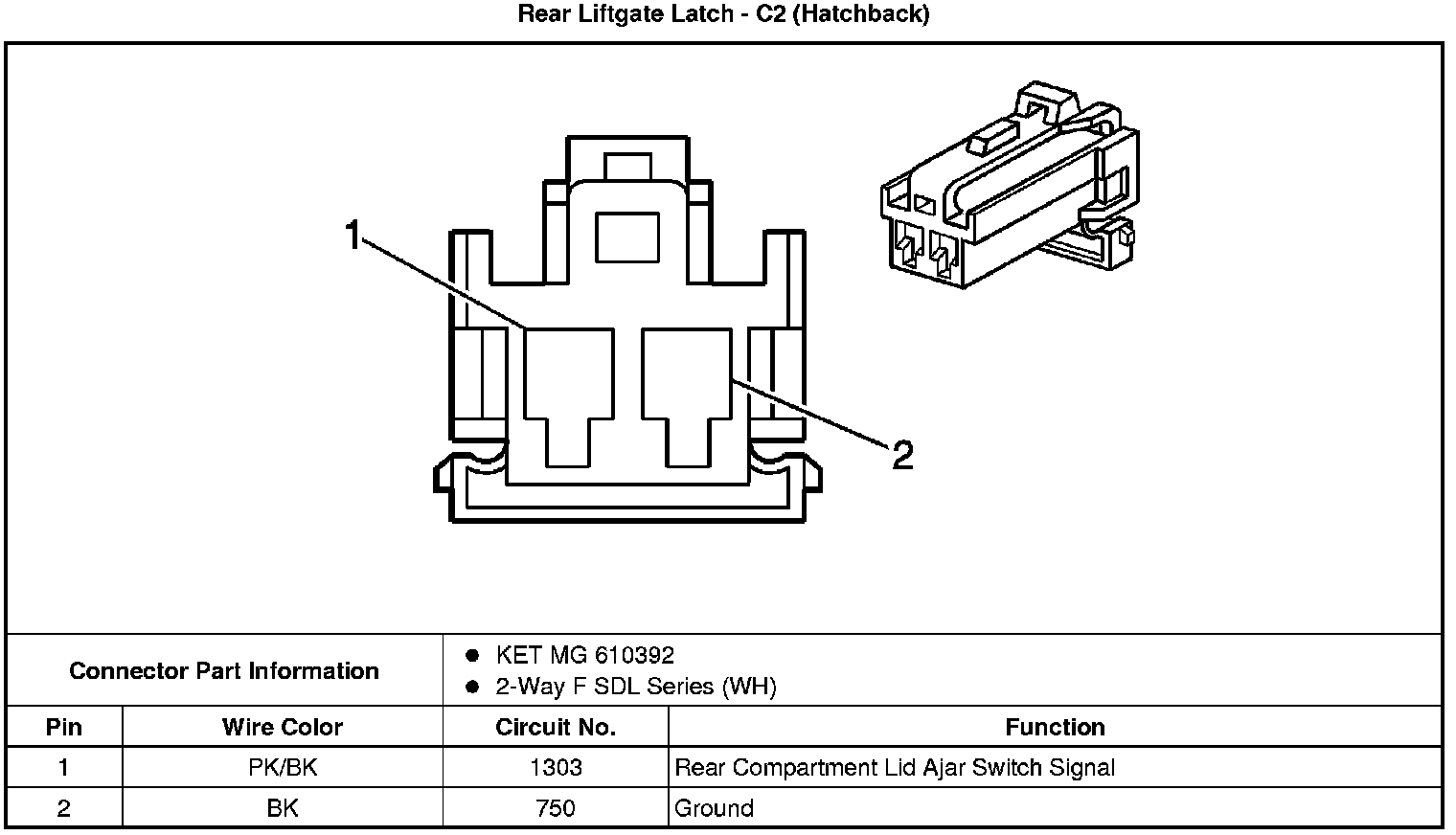

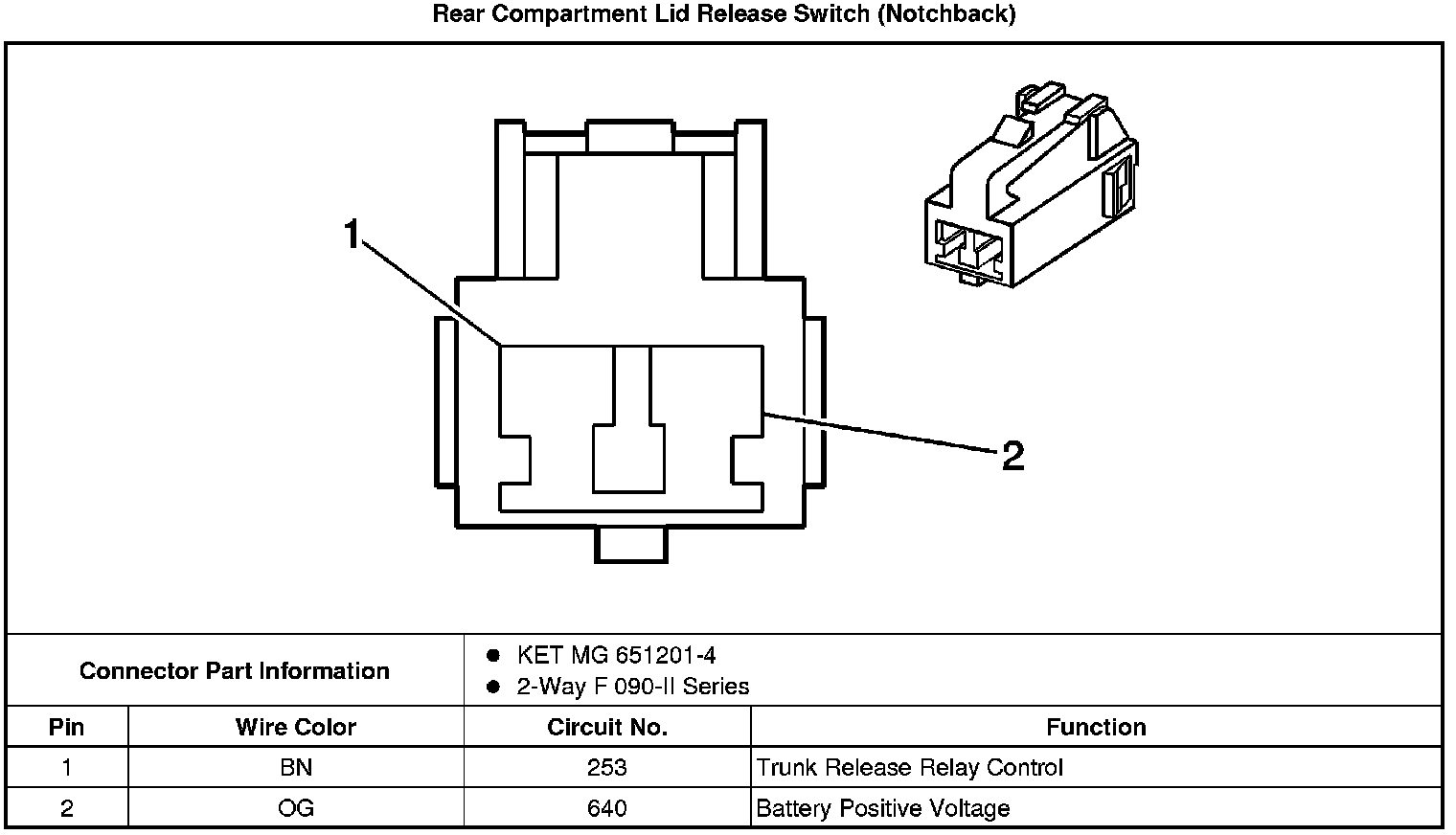

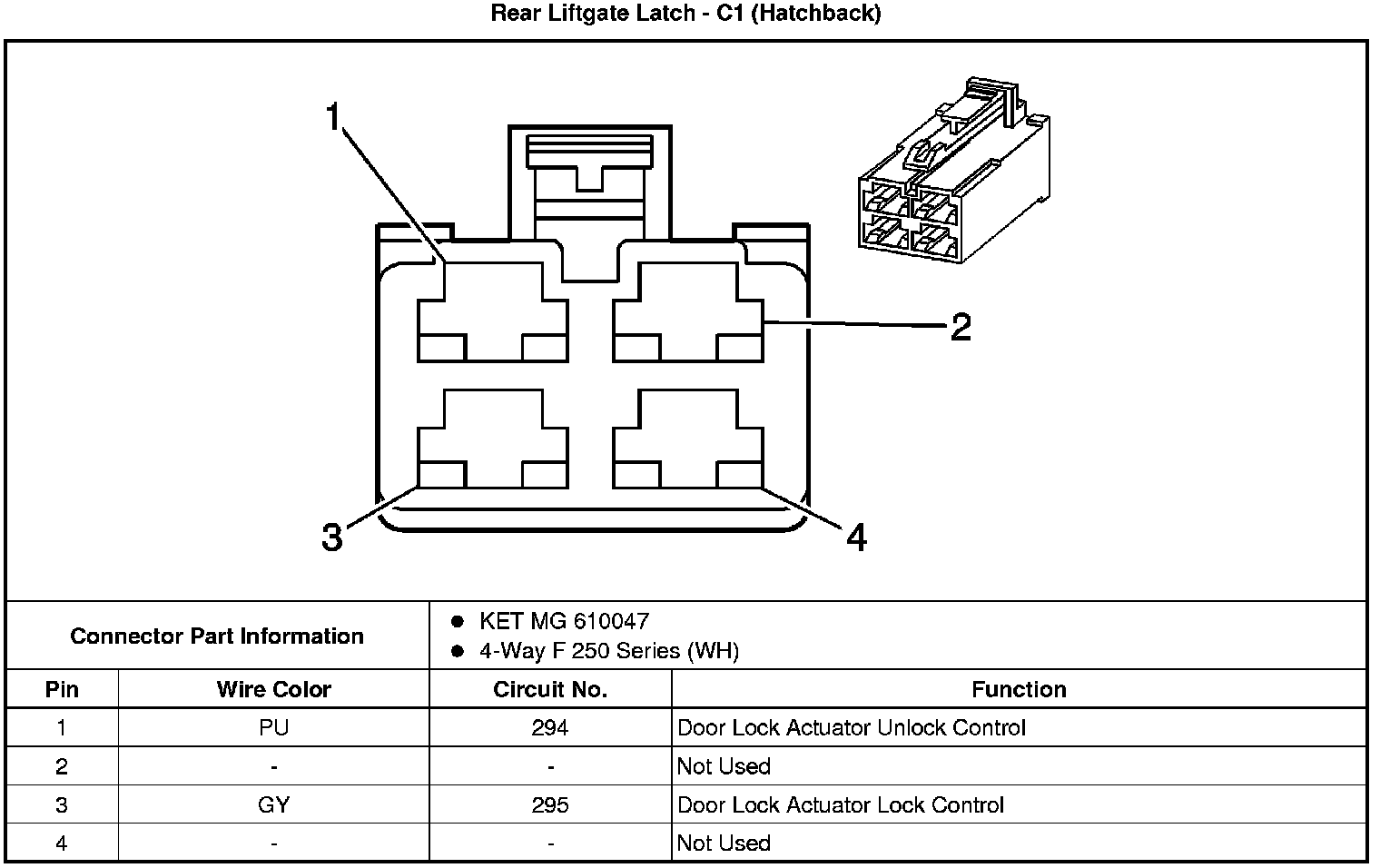

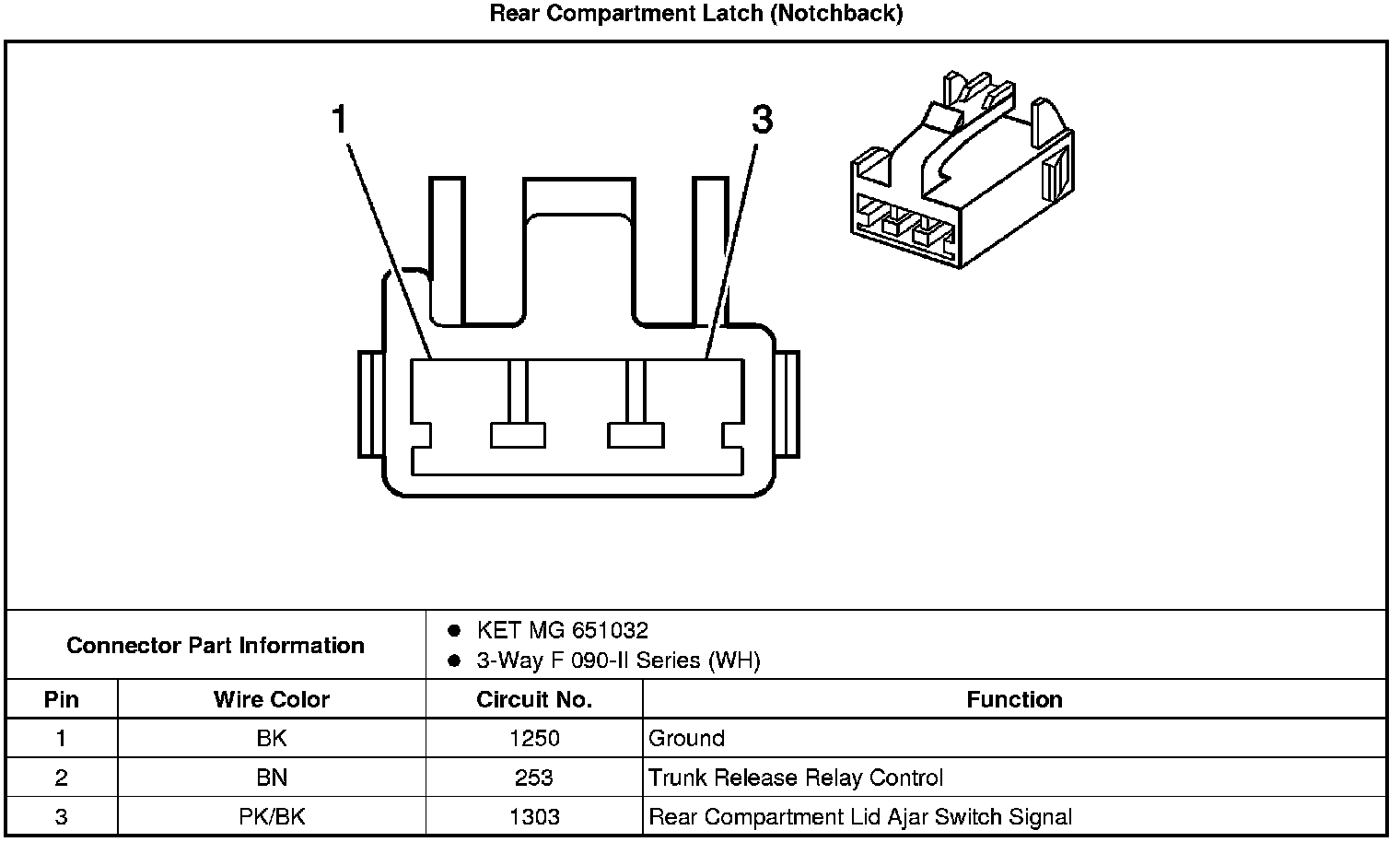

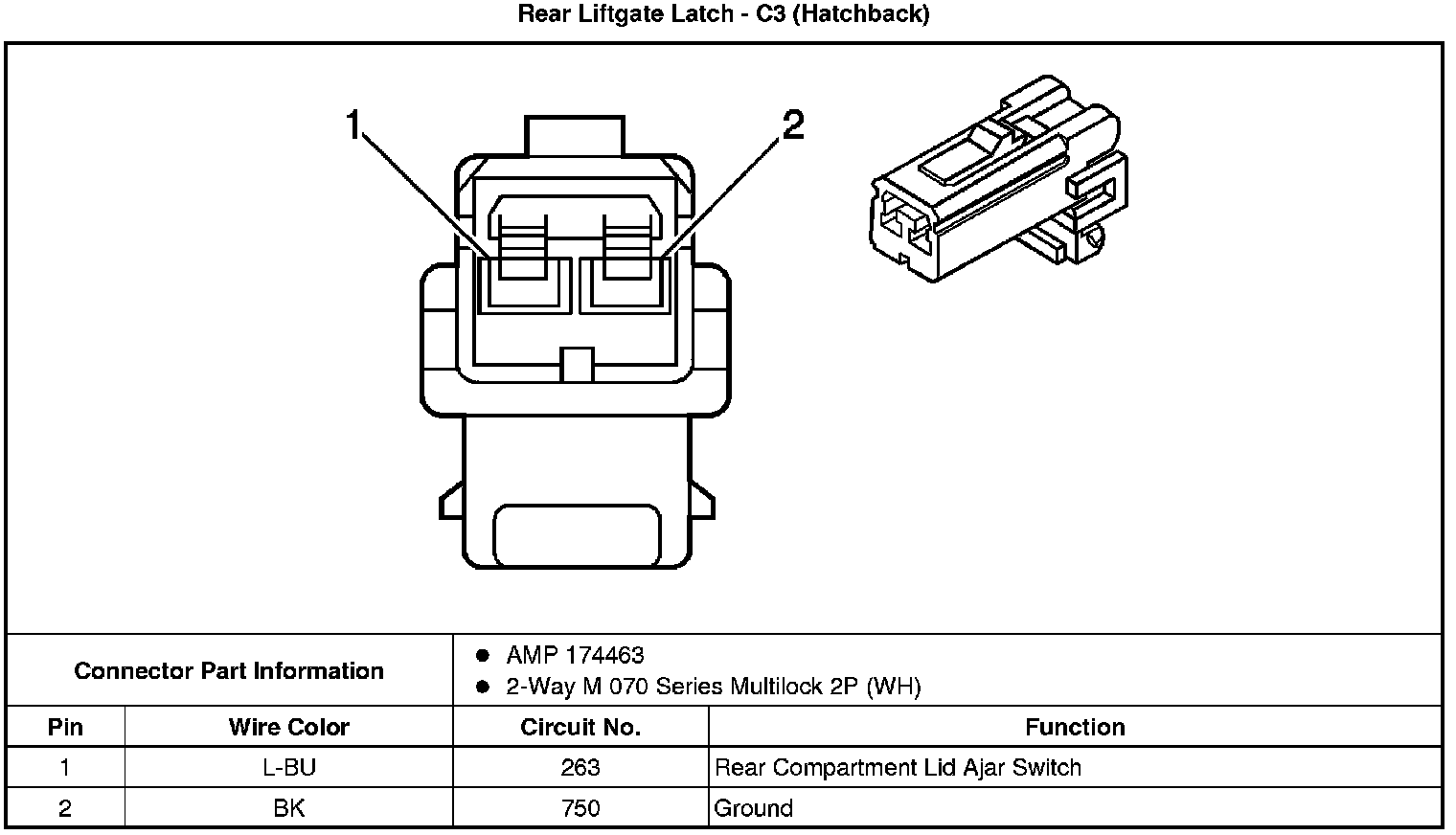

Body Rear End Connector End Views
Body Rear End Connector End Views
Body Rear End Connector End Views
