Trim Panel Replacement - Upper Center Pillar




Trim Panel Replacement - Upper Center Pillar

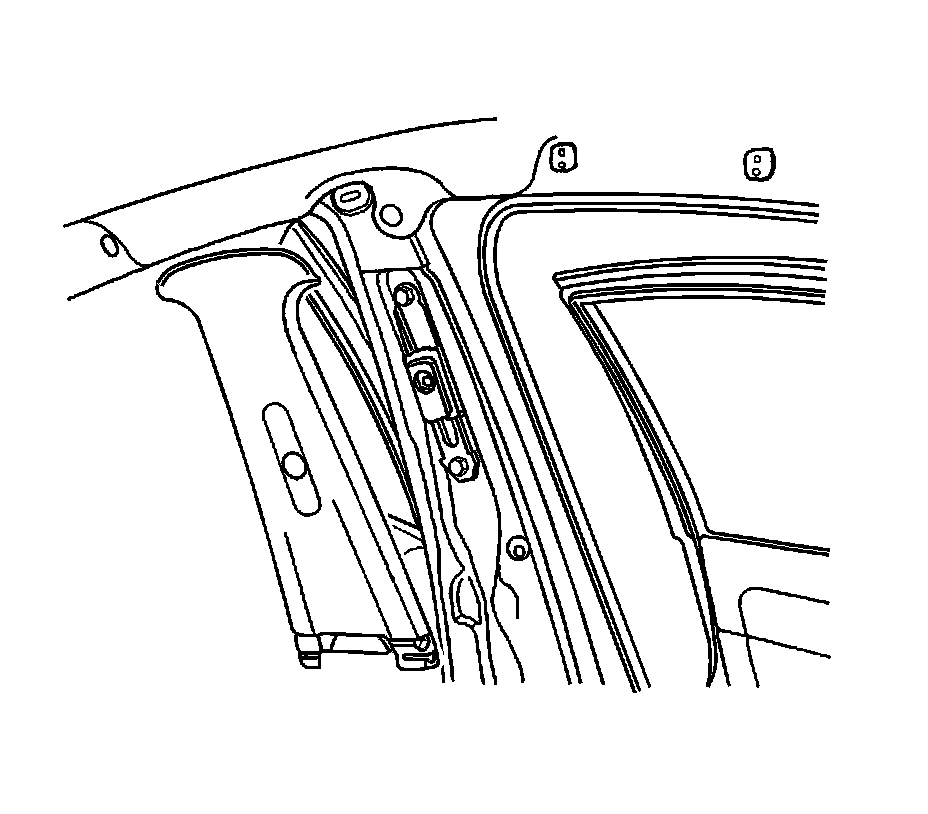

Removal Procedure




1. Remove the lower center pillar trim panel. Refer to Trim Panel Replacement - Lower Center Pillar Trim Panel Replacement - Lower Center Pillar.
2. Remove the bolt and the upper front seat belt anchor.
3. Remove the upper portion of the lower center pillar trim panel.
4. Pry off the upper center pillar trim panel.

Installation Procedure




1. Install the upper center pillar trim panel.
2. Install the upper portion of the lower center pillar trim panel to its original position.

Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

3. Install the upper front seat belt anchor with the bolt.

Tighten the seat belt anchor bolt to 38 Nm (28 lb ft).

4. Install the lower center pillar trim panel. Refer to Trim Panel Replacement - Lower Center Pillar Trim Panel Replacement - Lower Center Pillar.
