Trim Panel Replacement - Cargo Area Side

Trim Panel Replacement - Cargo Area Side

Removal Procedure




1. Remove the third pillar trim panel. Refer to Trim Replacement - Third Pillar Trim Replacement - Third Pillar.
2. Remove the rear lower quarter trim panel. Refer to Trim Panel Replacement - Rear Quarter Lower Trim Panel Replacement - Rear Quarter Lower.
3. Remove the rear upper quarter trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper (Sedan) Trim Panel Replacement - Rear Quarter Upper (Sedan)Trim Panel Replacement - Rear Quarter Upper (Wagon) Trim Panel Replacement - Rear Quarter Upper (Wagon).

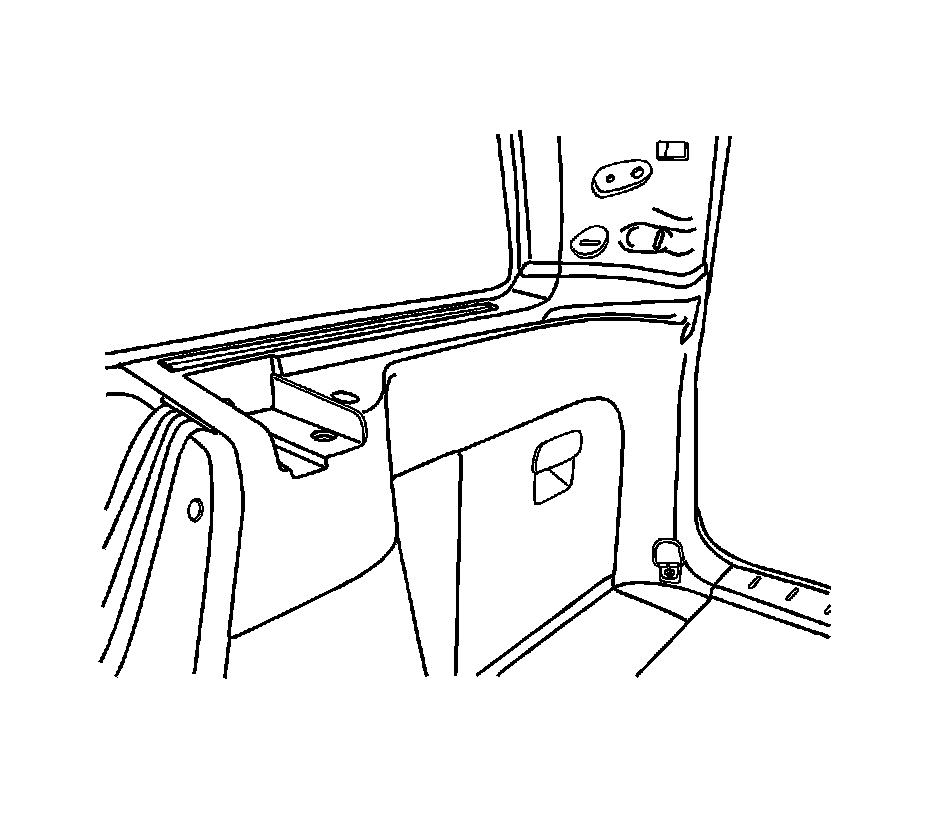

4. Remove the screws, the clips, and the cargo area side trim panel.

Installation Procedure




1. Install the cargo area side trim panel with the clips and screws.
2. Install the rear upper quarter trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper (Sedan) Trim Panel Replacement - Rear Quarter Upper (Sedan)Trim Panel Replacement - Rear Quarter Upper (Wagon) Trim Panel Replacement - Rear Quarter Upper (Wagon).
3. Install the rear lower quarter trim panel. Refer to Trim Panel Replacement - Rear Quarter Lower Trim Panel Replacement - Rear Quarter Lower.
4. Install the third pillar trim panel. Refer to Trim Replacement - Third Pillar Trim Replacement - Third Pillar.
