Trim Panel Replacement - Instrument Panel (I/P) Cluster (Four Door)

Trim Panel Replacement - Instrument Panel (I/P) Cluster (Four Door)

Removal Procedure

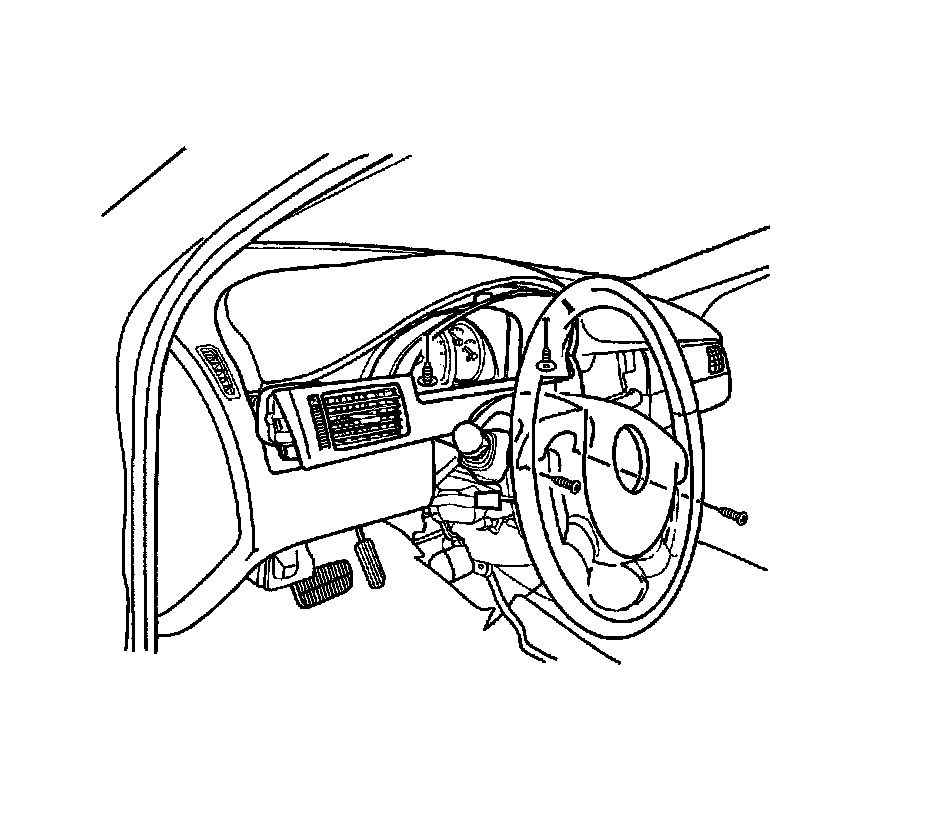

1. Remove the screws and the instrument cluster trim panel.
2. Disconnect the electrical connectors.

Installation Procedure




1. Connect the electrical connectors.

Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

2. Install the instrument cluster trim panel with the screws.

Tighten the instrument cluster trim panel screws to 4 Nm (35 lb in).
