Trim Panel Replacement - Instrument Panel (I/P) Cluster (Five Door/Wagon)

Trim Panel Replacement - Instrument Panel (I/P) Cluster (Five Door/Wagon)

Removal Procedure

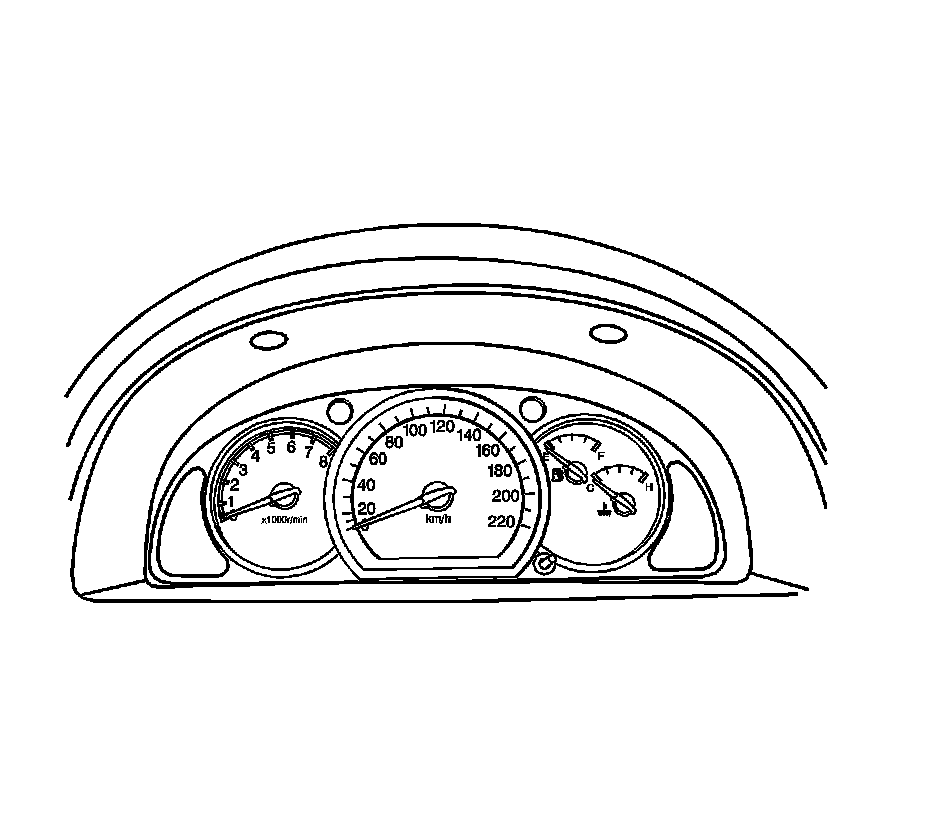

1. Remove the screws from the instrument cluster trim panel.
2. Remove the instrument cluster trim panel.

Installation Procedure




1. Install the instrument cluster trim panel.

Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

2. Install the instrument cluster trim panel screws.

Tighten the instrument cluster trim panel screws to 4 Nm (35 lb in).
