Instrument Cluster Lamp Replacement

Instrument Cluster Lamp Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Remove the instrument cluster. Refer to Instrument Panel Cluster (IPC) Replacement Instrument Panel Cluster (IPC) Replacement.

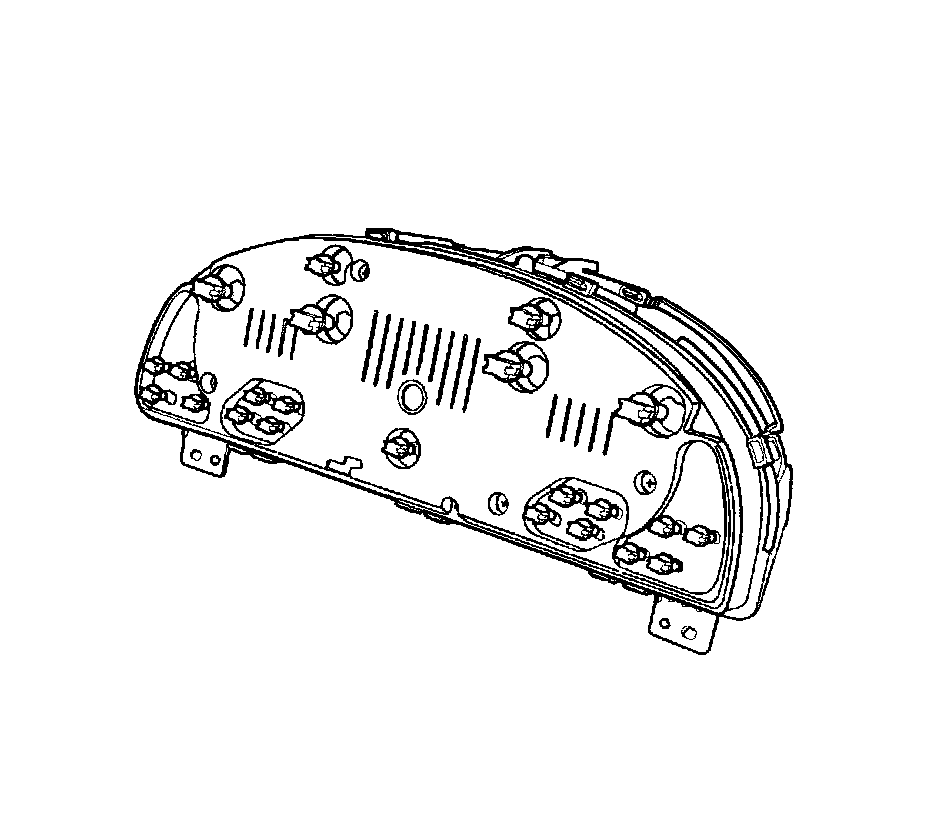

3. Remove the defective bulb from the rear of the cluster.

Installation Procedure




1. Install the new bulb.
2. Install the instrument cluster. Refer to Instrument Panel Cluster (IPC) Replacement Instrument Panel Cluster (IPC) Replacement.
3. Connect the negative battery cable.
