Applique Replacement - Center Pillar Outer

Applique Replacement - Center Pillar Outer

Removal Procedure




1. Remove the outside channel molding. Refer to Sealing Strip Replacement - Outer Belt Sealing Strip Replacement - Outer Belt in Doors.

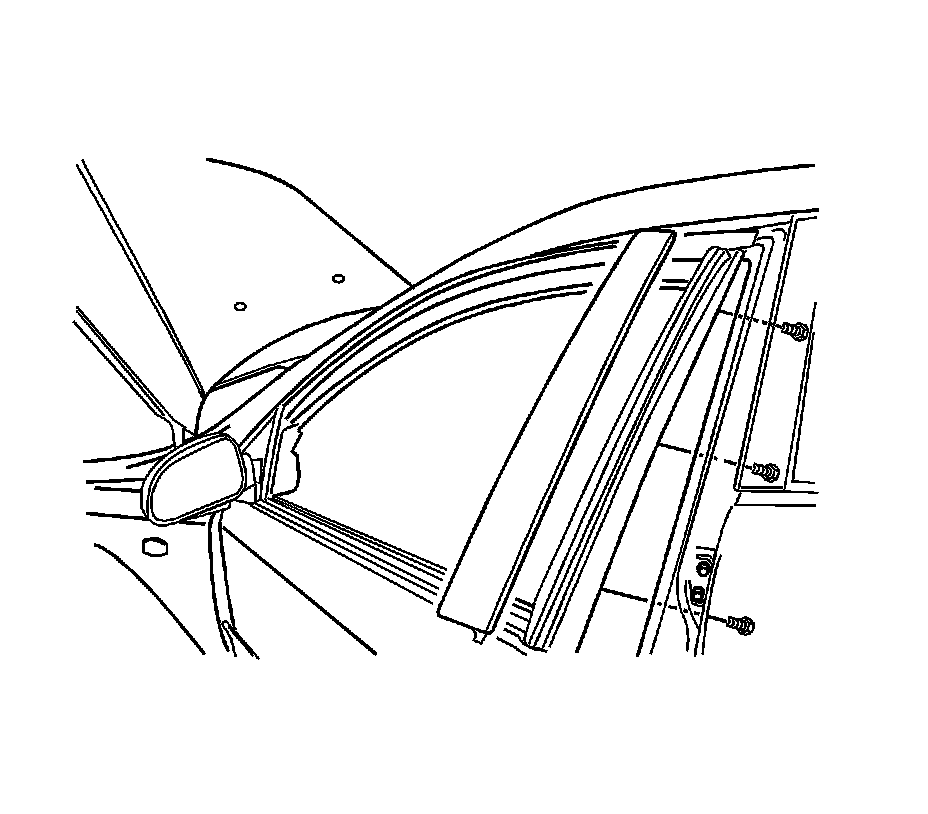

2. Position the weatherstrip in order to access the screws.
3. Remove the screws and the center pillar molding.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

1. Install the screws and the center pillar molding.

Tighten the center pillar molding screws to 1.3 Nm (12 lb in).

2. Install the weatherstrip to its original position.
3. Install the outside channel molding. Refer to Sealing Strip Replacement - Outer Belt Sealing Strip Replacement - Outer Belt in Doors.
