Trunk / Liftgate Shock / Support: Service and Repair

Strut Replacement - Liftgate

Removal Procedure

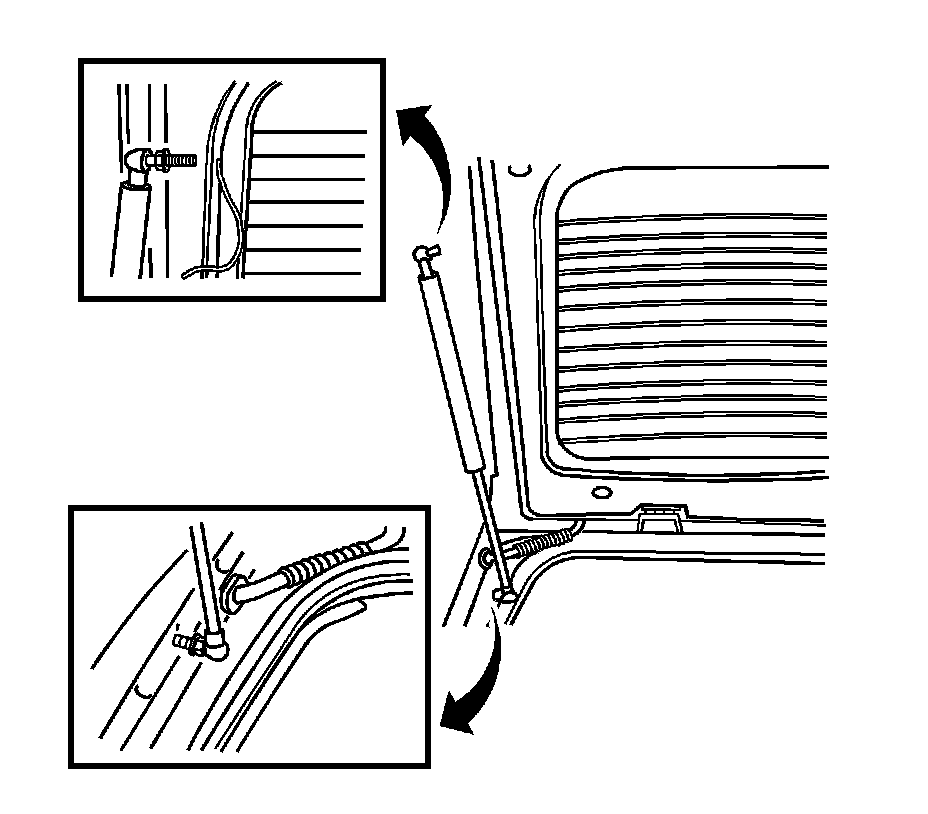

1. Raise and support the liftgate in the open position.
2. Unscrew and remove the liftgate support from the liftgate and the body.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

1. Install the liftgate support to the liftgate door and the body.

Tighten the liftgate support studs to 8 Nm(71 lb in).

2. Close the liftgate.
