Power Door Systems Component Views

Power Door Systems Component Views

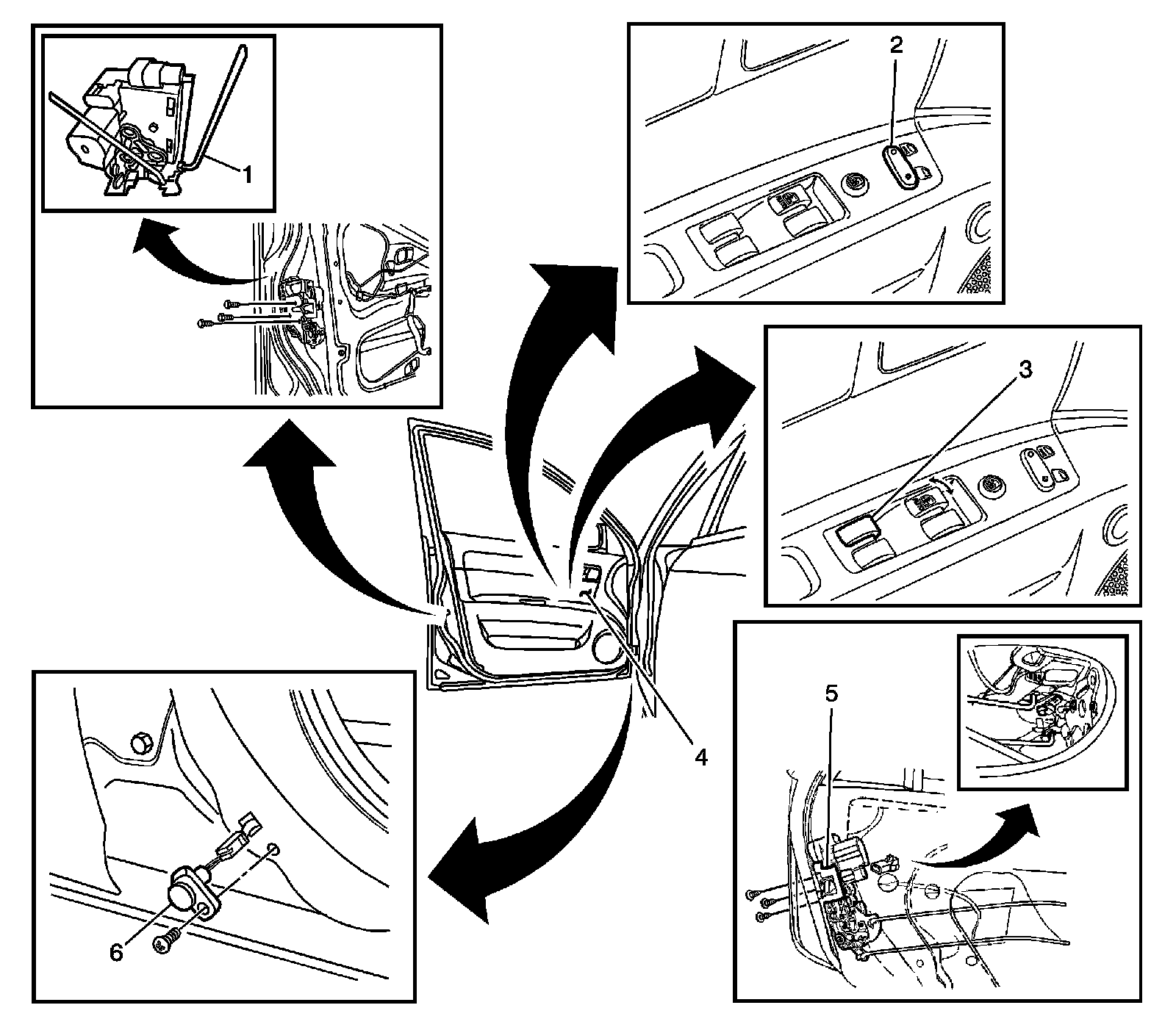

Door Actuator, Lock Switch, Power Window Switch, Power Window Motor, Rear Door Latch




1 - Door Latch - Front (Left Shown, Right Similar)
2 - Door Lock Switch (Optional)
3 - Window Switch - Driver (Others Similar)
4 - Window Motor (All Similar)
5 - Door Latch - Rear (Left Shown, Right Similar)
6 - Door Ajar Switch (All Similar)

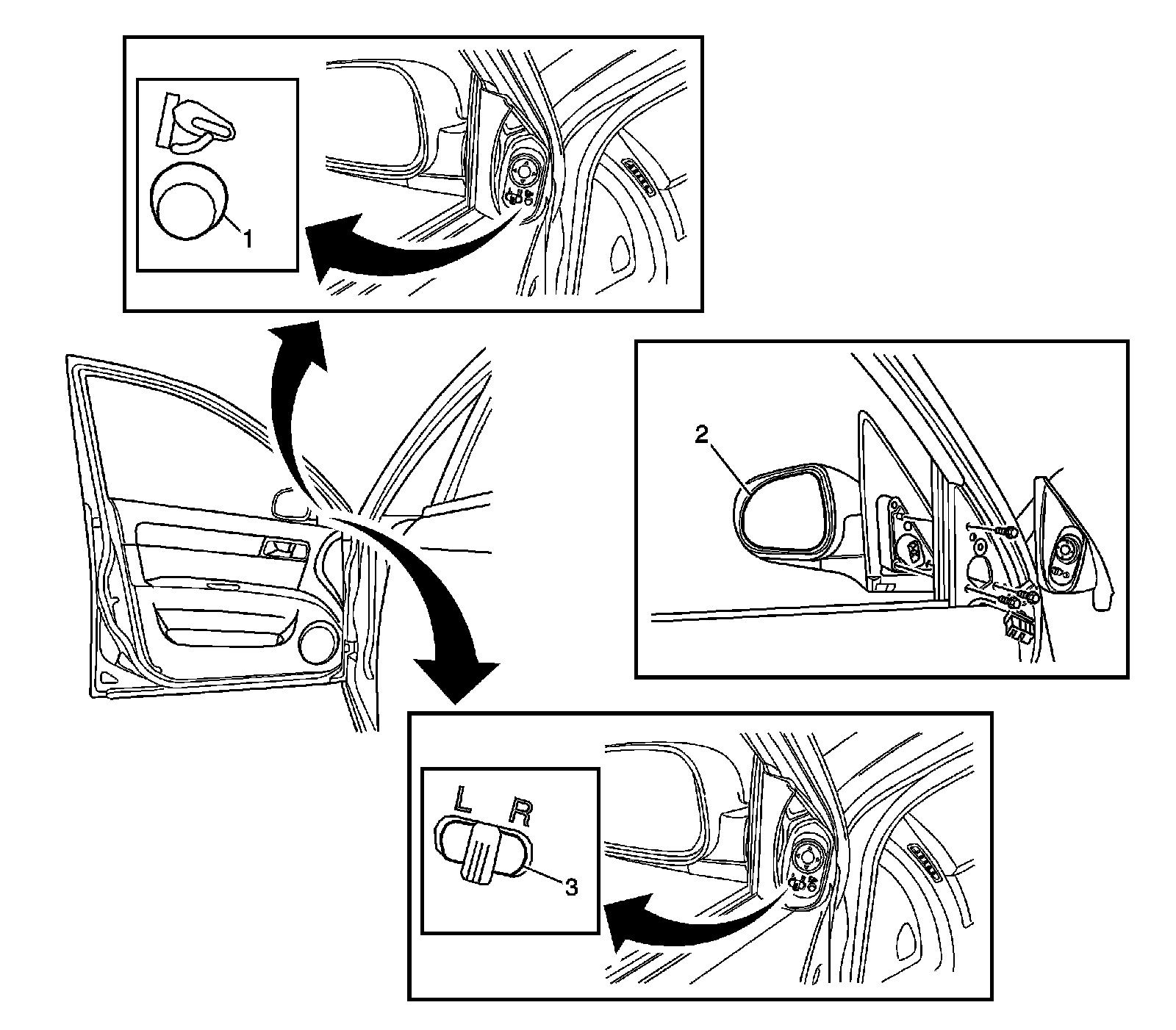

Outside Rearview Mirror




1 - Outside Rearview Mirror Switch (w/ Folding Option)
2 - Outside Rearview Mirror (Left Shown, Right Similar)
3 - Outside Rearview Mirror Switch (w/o Folding Option)

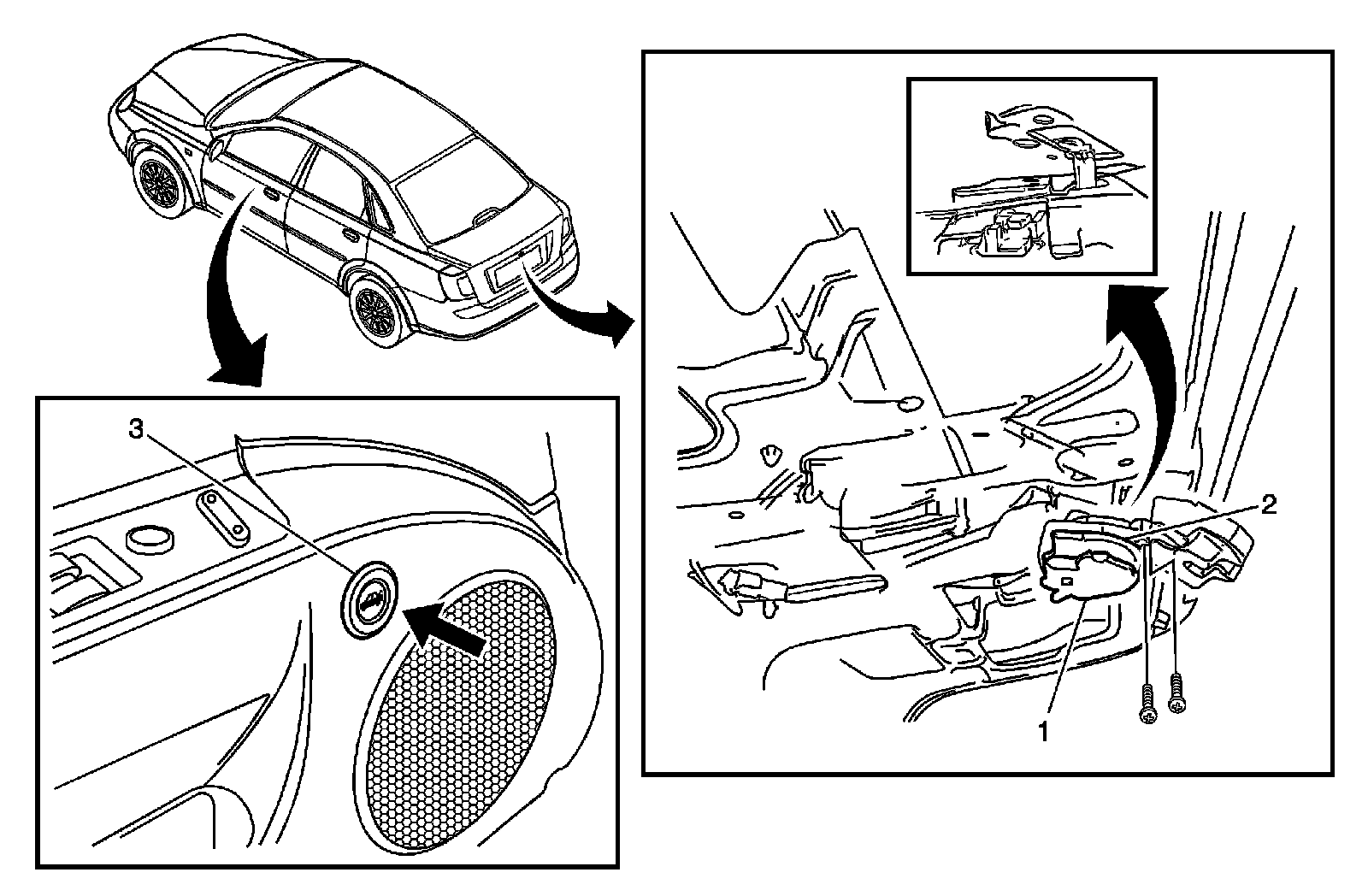

Rear Compartment Lid Release




1 - Rear Compartment Lid Latch C1 (Actuator) (Notchback Shown, Hatchback Similar)
2 - Rear Compartment Lid Latch C2 (Ajar Switch)
3 - Rear Compartment Lid Release Switch
