Front Door Limiter: Service and Repair




Door Check Link Replacement

Removal Procedure




1. Remove the door seal trim. Refer to Water Deflector Replacement - Door Service and Repair.

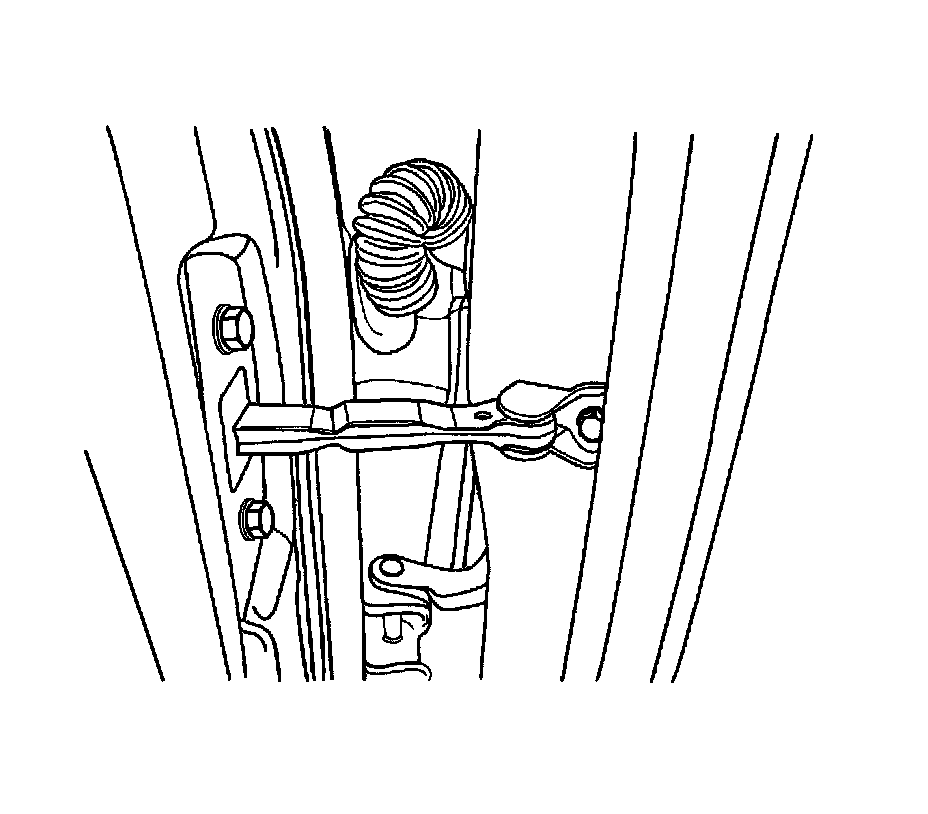

2. Remove the bolts on the door and on the body.
3. Remove the door hold-open link.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

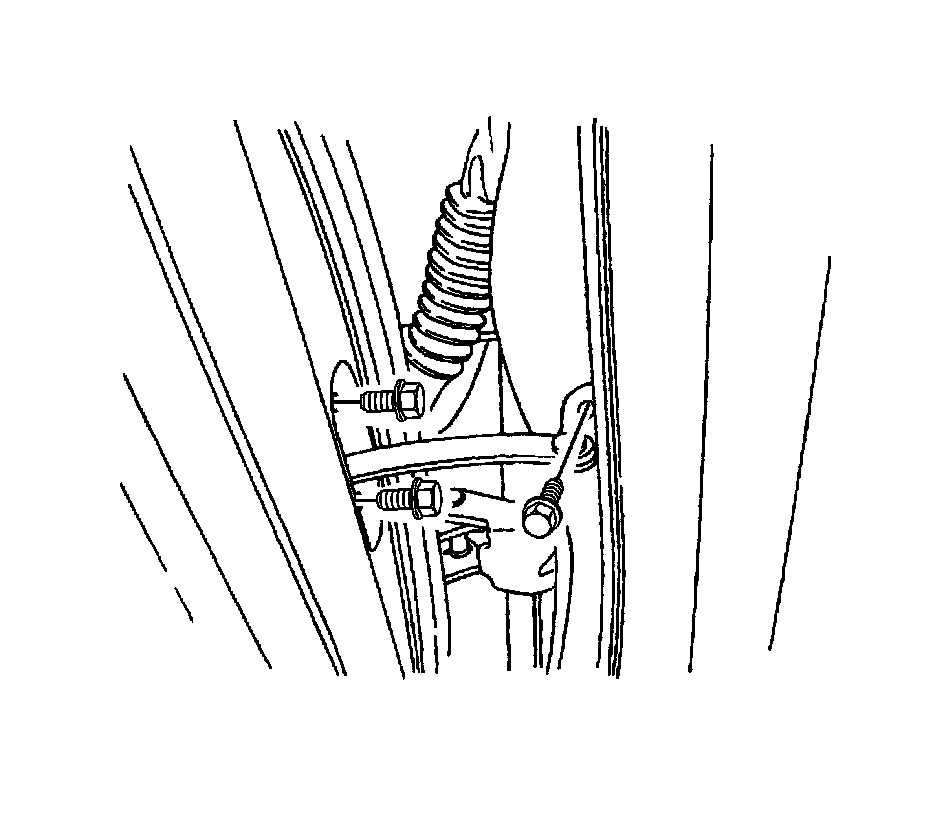

1. Install the door hold-open link to the door and the body with the bolts.

* Tighten the door hold-open link-to-body bolt to 25Nm (18 lb ft).
* Tighten the door hold-open link-to-door bolts to 9 Nm (80 lb in).

2. Install the door seal trim. Refer to Water Deflector Replacement - Door Service and Repair.
