Front Door Hinge: Service and Repair

Hinge Replacement - Door

Removal Procedure

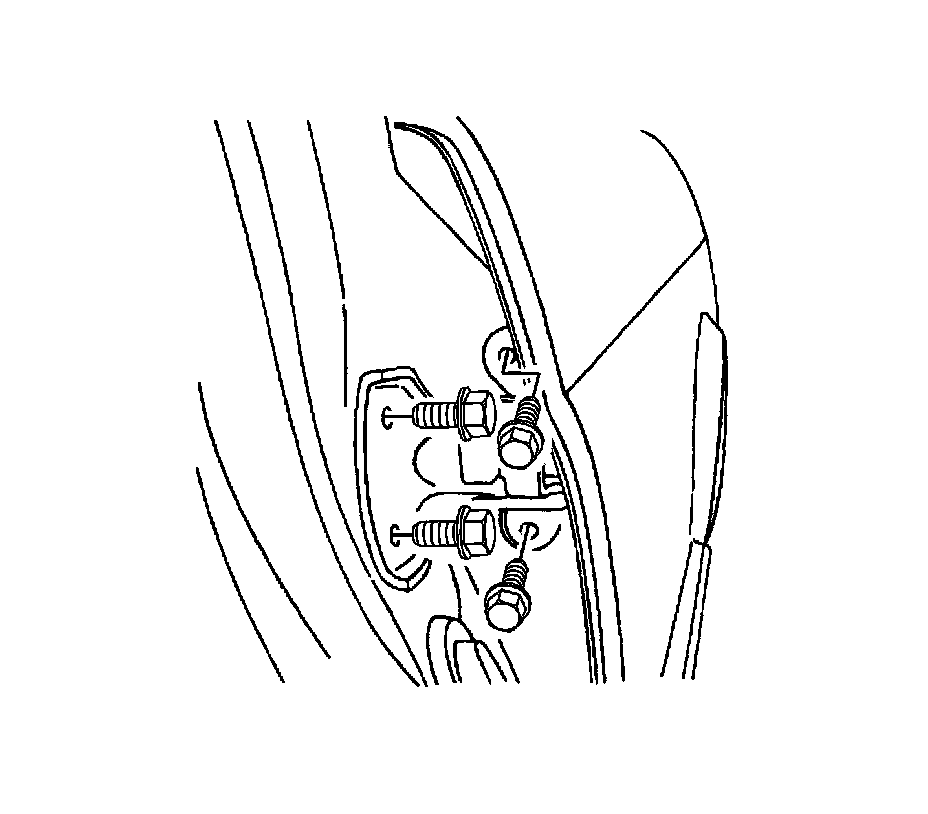

With the aid of an assistant, remove the bolts and the hinge from the door and the body.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

With the aid of an assistant, install the hinge to the door and the body with the bolts.

* Tighten the door hinge-to-body bolts to 20 Nm (15 lb ft).
* Tighten the door hinge-to-door bolts to 20 Nm (15 lb ft).
