Rear Bumper Reinforcement: Service and Repair

Impact Bar Replacement - Rear Bumper

Removal Procedure




1. Remove the rear bumper fascia. Refer to Fascia Replacement - Rear Bumper (Four Door) Fascia Replacement - Rear Bumper (Four Door)Fascia Replacement - Rear Bumper (Five Door and Wagon) Fascia Replacement - Rear Bumper (Five Door and Wagon).

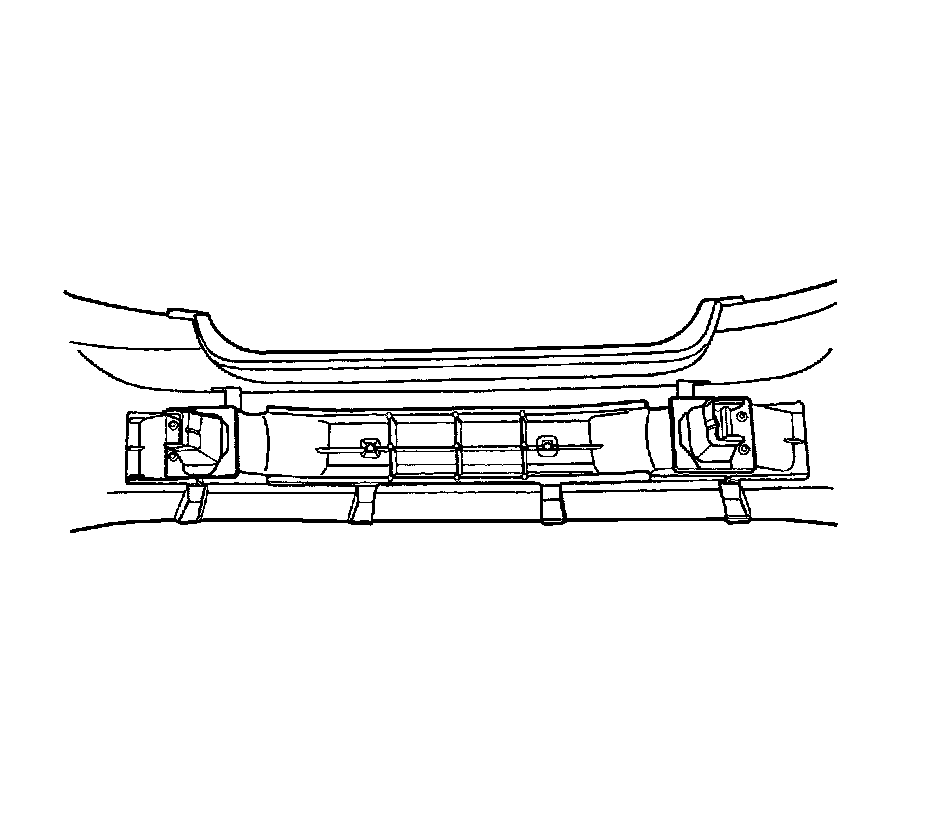

2. Remove the screws and the impact bar.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

1. Install the impact bar with the screws.
2. Install the rear bumper fascia. Refer to Fascia Replacement - Rear Bumper (Four Door) Fascia Replacement - Rear Bumper (Four Door)Fascia Replacement - Rear Bumper (Five Door and Wagon) Fascia Replacement - Rear Bumper (Five Door and Wagon).
