P0116
DTC P0116
DTC Descriptor
DTC P0116
- Engine Coolant Temperature (ECT) Sensor Performance

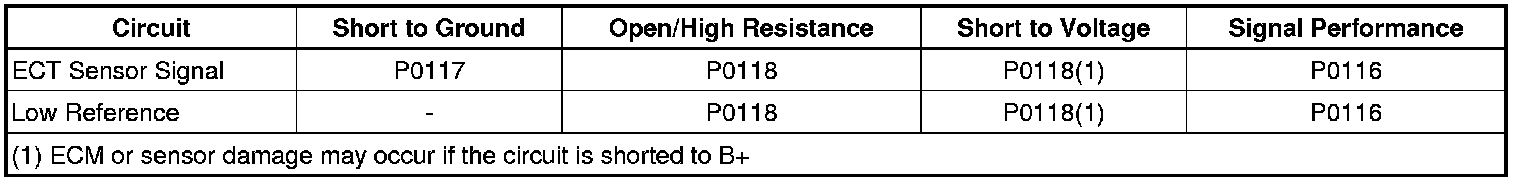

Diagnostic Fault Information
Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

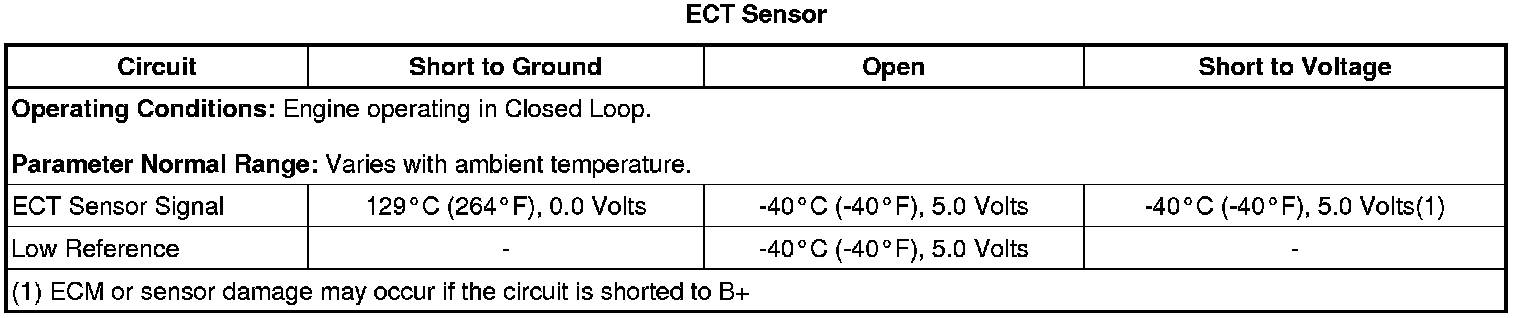

Typical Scan Tool Data
Circuit Description
The engine coolant temperature (ECT) sensor is a variable resistor that measures the temperature of the engine coolant. The engine control module (ECM) supplies 5 volts to the ECT signal circuit and supplies a ground to the low reference circuit.

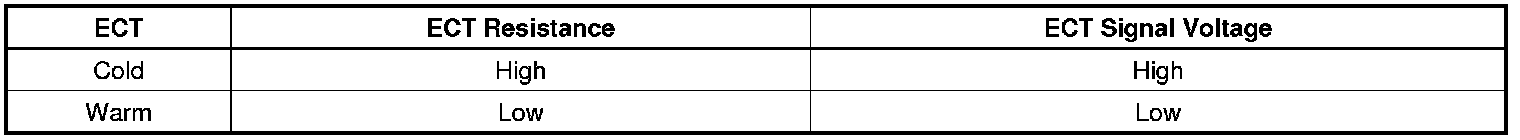

The following table illustrates the difference between temperature, resistance, and voltage:
Conditions for Running the DTC
* DTCs P0117, P0118, P0562, P0563, and P2610 are not set.
* The engine is operating.
* The ignition has been off for more than 6 hours before vehicle is started.
* The DTC runs when the above conditions are met.
Conditions for Setting the DTC
The ECM does not detect an engine coolant temperature (ECT) sensor change of more than 3°C (5°F).
Action Taken When the DTC Sets
DTC P0116 is a Type B DTC.
Conditions for Clearing the MIL/DTC
DTC P0116 is a Type B DTC.
Diagnostic Aids
* After starting the engine, the ECT sensor temperature should rise steadily, then stabilize after the thermostat opens.
* Test the ECT sensor at various temperature levels in order to evaluate the possibility of a skewed sensor. A skewed sensor can result in a driveability condition. Refer to Temperature vs Resistance Temperature vs Resistance.
* Inspect for the correct operation of the engine cooling system and verify the correct coolant level.
Reference Information
Schematic Reference
Engine Controls Schematics Electrical Diagrams
Connector End View Reference
* Engine Control Module (ECM) Connector End Views Engine Control Module (ECM) Connector End Views
* Engine Controls Connector End Views Engine Controls Connector End Views
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
DTC Type Reference
Diagnostic Trouble Code (DTC) Type Definitions Diagnostic Trouble Code (DTC) Type Definitions
Scan Tool Reference
* Scan Tool Data List Scan Tool Data List
* Scan Tool Data Definitions Scan Tool Data Definitions
* Scan Tool Output Controls Scan Tool Output Controls
Circuit/System Verification
1. Verify that the following DTCs are not set: P0112, P0113, P0117, P0118, P0125, or P0128.
• If any of the DTCs are set, refer to Diagnostic Trouble Code (DTC) List - Vehicle Diagnostic Trouble Code (DTC) List - Vehicle.
2. If the vehicle passes the Circuit/System Verification Test, then operate the vehicle within the conditions for running the DTC. You may also operate the vehicle within the conditions that are captured in the FreezeFrame/Failure Records List. DTC P0116 should not set.
Circuit/System Testing
1. Ignition OFF, disconnect the harness connector at the engine coolant temperature (ECT) sensor.
2. Ignition OFF, test for less than 5.0 ohms of resistance between the low reference circuit and ground.
• If greater than 5.0 ohms, test the low reference circuit for a short to voltage or an open/high resistance. If the circuit tests normal, replace the ECM.
3. Ignition ON, using a scan tool verify that the ECT sensor parameter is at -40°C (-40°F).
• If greater than -40°C (-40°F), test the signal circuit of the ECT sensor for a short to ground. If the circuit tests normal, replace the engine control module (ECM).
Important: If the signal circuit of the ECT sensor is shorted to voltage the ECT sensor may be damaged.
4. Install a 3 amp fused jumper wire between the signal circuit and the low reference circuit. Verify the ECT sensor parameter is greater than 128°C (262°F).
• If less than 128°C (262°F), test the signal circuit of the ECT sensor for a short to voltage or an open/high resistance. If the circuit test normal, replace the ECM.
5. If all circuits test normal, test or replace the ECT sensor.
Component Testing
1. Ignition OFF, disconnect the harness connector of the engine coolant temperature (ECT) sensor.
Important: A thermometer can be used to the used to test the sensor off the vehicle.
2. Test the ECT sensor by varying the sensor temperature while monitoring the sensor resistance. Compare the readings with the Temperature vs Resistance Temperature vs Resistance table and verify that the resistance is within 5 percent of the specification.
• If the resistance Vs. temperature is not within 5 percent, replace the ECT sensor.
Repair Instructions
Perform the Diagnostic Repair Verification Diagnostic Repair Verification after completing the diagnostic procedure.
* Engine Coolant Temperature (ECT) Sensor Replacement Service and Repair
* Control Module References Control Module References for engine control module replacement, setup, and programming.
