P0107
DTC P0107 or P0108
DTC Descriptors
DTC P0107
- Manifold Absolute Pressure (MAP) Sensor Circuit Low Voltage
DTC P0108
- Manifold Absolute Pressure (MAP) Sensor Circuit High Voltage

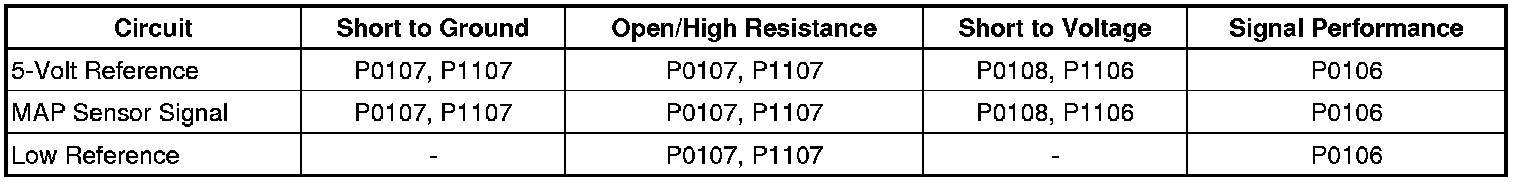

Diagnostic Fault Information
Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

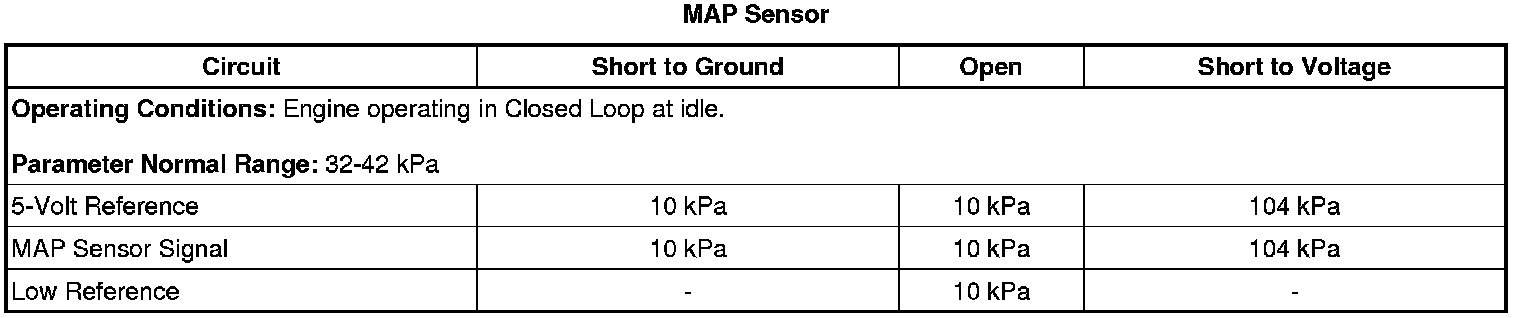

Typical Scan Tool Data
Circuit/System Description
The manifold absolute pressure (MAP) sensor responds to pressure changes in the intake manifold. The pressure changes occur based on the engine load. The engine control module (ECM) supplies 5 volts to the MAP sensor on the 5-volt reference circuit. The ECM provides a ground on the low reference circuit. The MAP sensor provides a signal to the ECM on the MAP sensor signal circuit which is relative to the pressure changes in the manifold. The ECM detects a low signal voltage at a low MAP, such as during an idle or a deceleration. The ECM detects a high signal voltage at a high MAP, such as the ignition is ON, with the engine OFF, or at a wide open throttle (WOT). The MAP sensor is also used to determine the barometric pressure (BARO). This occurs when the ignition switch is turned ON, with the engine OFF. The BARO reading may also be updated whenever the throttle position (TP) sensor is greater than 28 percent.
Conditions for Running the DTC
P0107
* DTCs P0122, P0123, P1121, and P1122 are not set.
* The TP sensor is greater than or equal to 0 percent while the engine speed is less than 1,000 RPM or the TP sensor is greater than 5 percent while the engine speed is greater than 1,000 RPM.
* The ignition 1 voltage is greater than 11 volts.
* The DTC runs continuously when the above conditions are met.
P0108
* DTCs P0122, P0123, P1121, and P1122 are not set.
* The engine has been running for more than 10 seconds.
* The TP sensor is less than 15 percent while the engine speed is less than 2,500 RPM or the TP sensor is less than 35 percent while the engine speed is greater than 2,500 RPM.
* The DTC runs continuously when the above conditions are met.
Conditions for Setting the DTC
P0107
The ECM detects that the MAP is less than 12 kPa for more than 5 seconds.
P0108
The ECM detects that the MAP is more than 103 kPa for more than 5 seconds.
Action Taken When the DTC Sets
DTC P0107 and P0108 are Type A DTCs.
Conditions for Clearing the MIL/DTC
DTC P0107 and P0108 are Type A DTCs.
Diagnostic Aids
If a shared 5-volt reference circuit is shorted to ground or shorted to a voltage, other 5-volt reference circuits may be affected.
Reference Information
Schematic Reference
Engine Controls Schematics Electrical Diagrams
Connector End View Reference
* Engine Control Module (ECM) Connector End Views Engine Control Module (ECM) Connector End Views
* Engine Controls Connector End Views Engine Controls Connector End Views
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
DTC Type Reference
Diagnostic Trouble Code (DTC) Type Definitions Diagnostic Trouble Code (DTC) Type Definitions
Scan Tool Reference
* Scan Tool Data List Scan Tool Data List
* Scan Tool Data Definitions Scan Tool Data Definitions
* Scan Tool Output Controls Scan Tool Output Controls
Circuit/System Verification
1. Start the engine, observe the MAP Sensor parameter. The reading should be between 32-42 kPa.
2. If the vehicle passes the Circuit/System Verification Test, then operate the vehicle within the conditions for running the DTC. You may also operate the vehicle within the conditions that are captured in the Freeze Frame/Failure Records Data List.
Circuit/System Testing
1. Ignition OFF, disconnect the harness connector of the MAP sensor.
2. Ignition ON, verify that the MAP sensor parameter is less than 12 kPa.
• If greater than 12 kPa, test the signal circuit of the MAP sensor for a short to voltage. If the circuit/connections test normal, replace the ECM.
Important: The test lamp is used to load the circuit and may not illuminate.
3. Ignition ON, connect a test lamp between the 5-volt reference circuit of the MAP sensor and the negative battery terminal.
Important: The 5-volt reference circuits are internally and externally connected at the ECM. Other component DTCs may be set. If other DTCs are set, review the electrical schematic and diagnose the applicable circuits and components.
4. Test for 4.8-5.2 volts between the 5-volt reference circuit of the MAP sensor and the negative battery terminal.
• If less than 4.8 volts, test the 5-volt reference circuit of the MAP sensor for a short to ground or open/high resistance. If the circuit/connections test normal, replace the ECM.
• If greater than 5.2 volts, test the 5-volt reference circuit of the MAP sensor for a short to voltage. If the circuit/connections test normal, replace the ECM.
5. Ignition ON, test for less than 0.2 volt between the low reference circuit of the MAP sensor and the negative battery terminal.
• If greater than 0.2 volt, test the low reference circuit of the MAP sensor for a short to voltage. If the circuit/connections test normal, replace the ECM.
6. Ignition OFF, test for less than 5 ohms of resistance between the low reference circuit of the MAP sensor and the negative terminal of the battery.
• If greater than 5 ohms, test the low reference circuit of the MAP sensor for an open/high resistance. If the circuit/connections test normal, replace the ECM.
7. Ignition ON, install a 3-amp fused jumper wire between the signal circuit and the 5-volt reference circuit of the MAP sensor to verify that the MAP sensor parameter is greater than 102 kPa.
• If less than 102 kPa, test the signal circuit of the MAP sensor for a short to ground or an open/high resistance. If the circuit/connections test normal, replace the ECM.
8. If all circuits/connections test normal, test or replace the MAP sensor.
Component Testing
1. Ignition OFF, disconnect the harness connector of the MAP sensor.

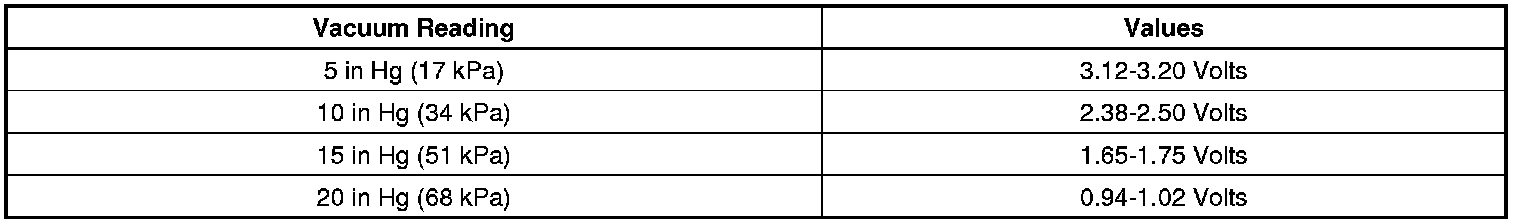

2. Apply 5 volts and ground to the applicable terminals of the MAP sensor and measure the voltage from the signal circuit of the MAP sensor to the negative battery terminal. Apply the specified vacuum to the MAP sensor.
• If voltage is not with in the specified range, replace the MAP sensor.
Repair Instructions
Important: Always perform the Diagnostic Repair Verification Diagnostic Repair Verification after completing the diagnostic procedure.
* Manifold Absolute Pressure (MAP) Sensor Replacement Service and Repair
* Control Module References Control Module References for engine control module replacement, setup, and programming
