Oxygen Sensor: Locations

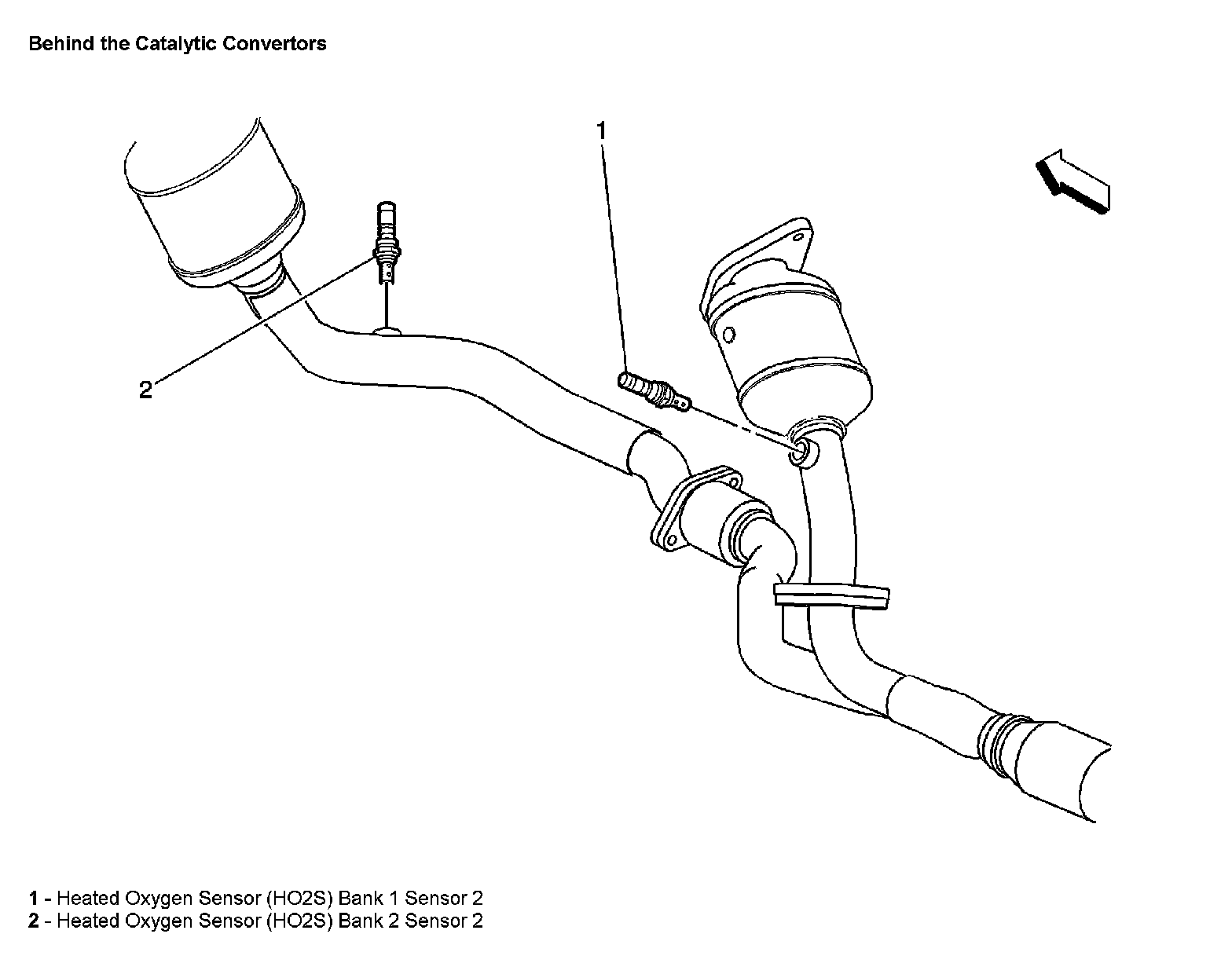

Behind The Catalytic Convertors:



Top Rear Of Engine:

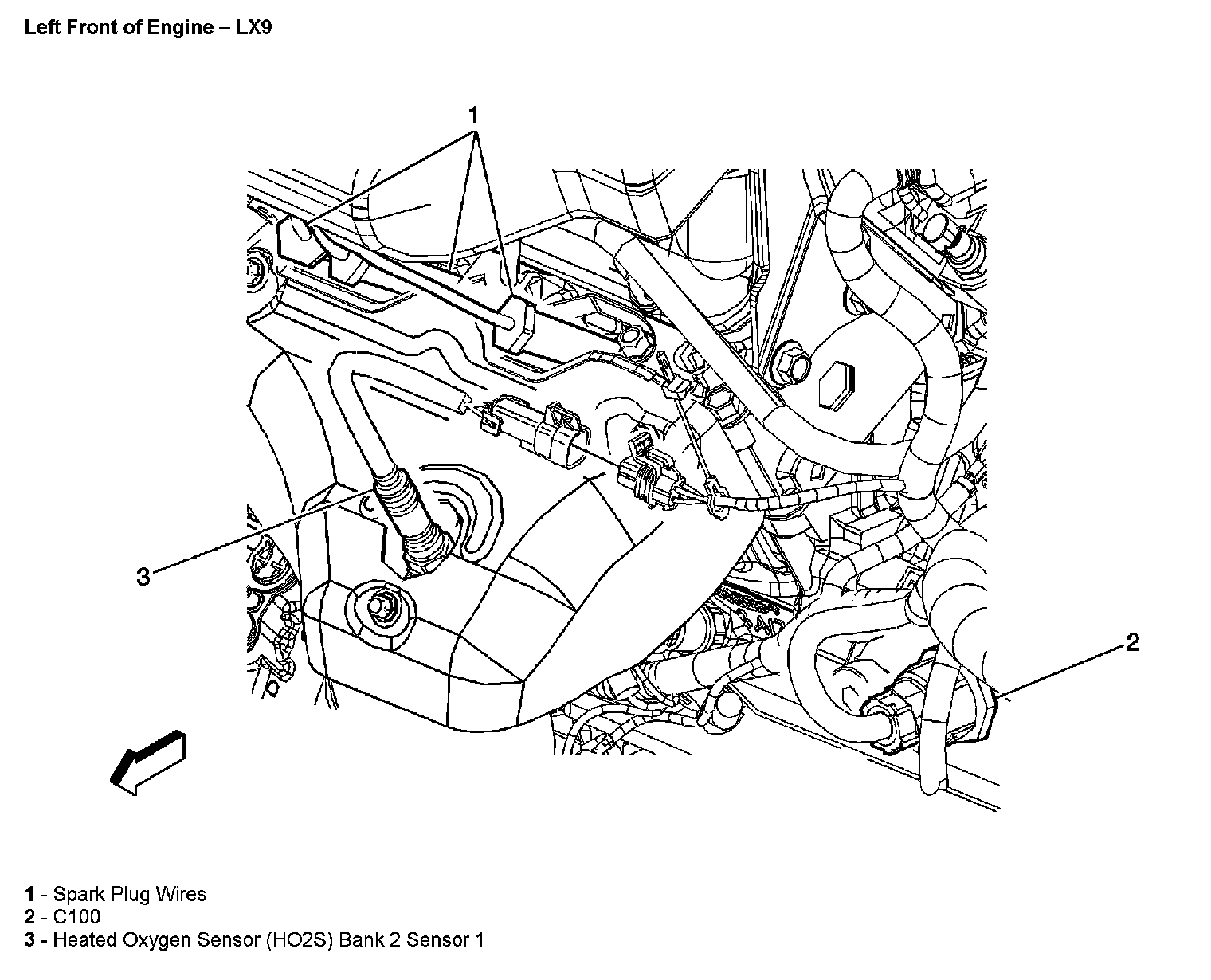

Left Front Of Engine:
