Impala V6-3.9L VIN 1
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>
A/T Inline 20-Way Connector, Engine Side
A/T Inline 20-Way Connector, Engine Side

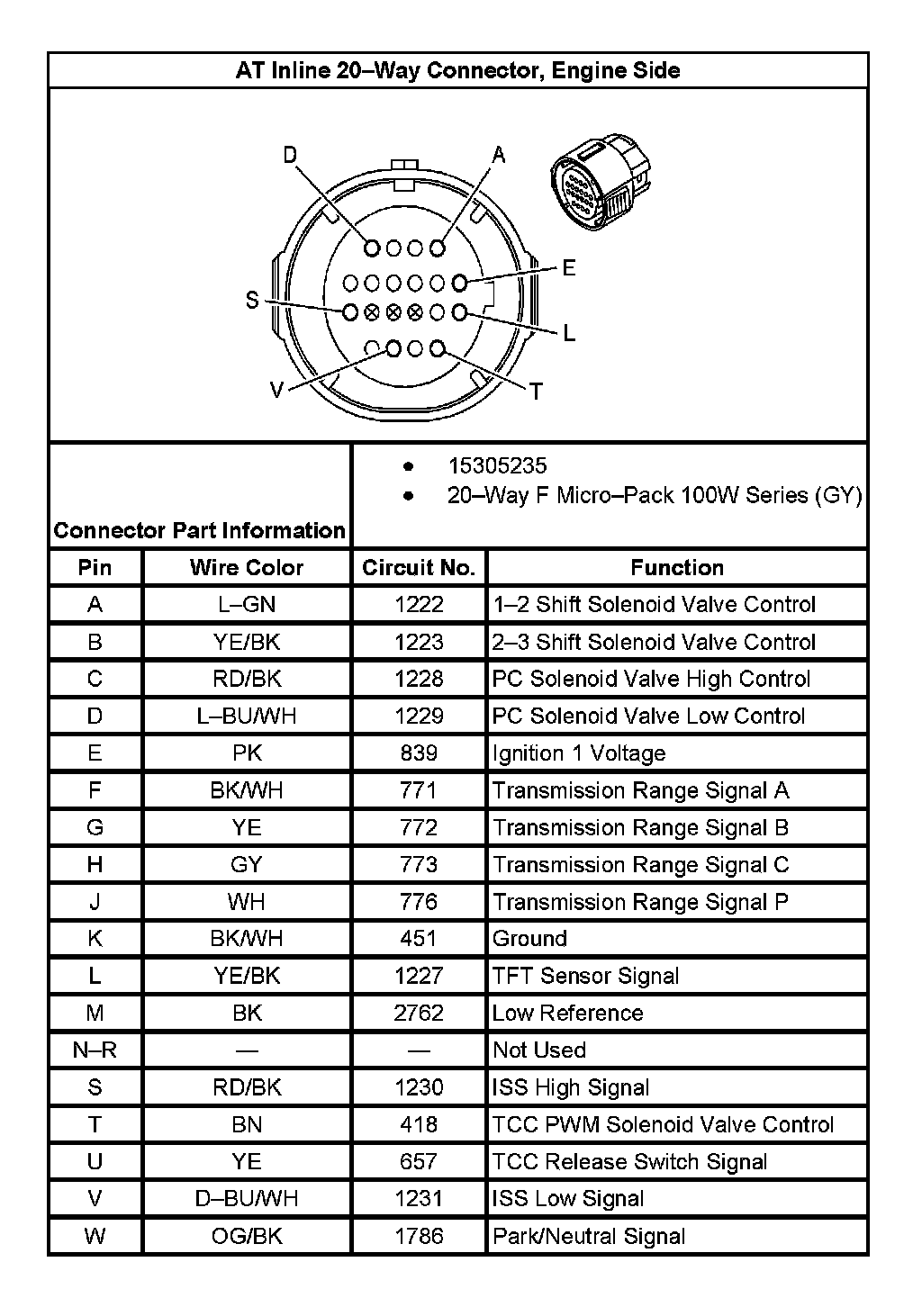

Automatic Transmission Inline 20-Way Connector End View
AT Inline 20-Way Connector, Engine Side 1:
AT Inline 20-Way Connector, Engine Side 2:
