Variable Induction Control Solenoid: Diagrams

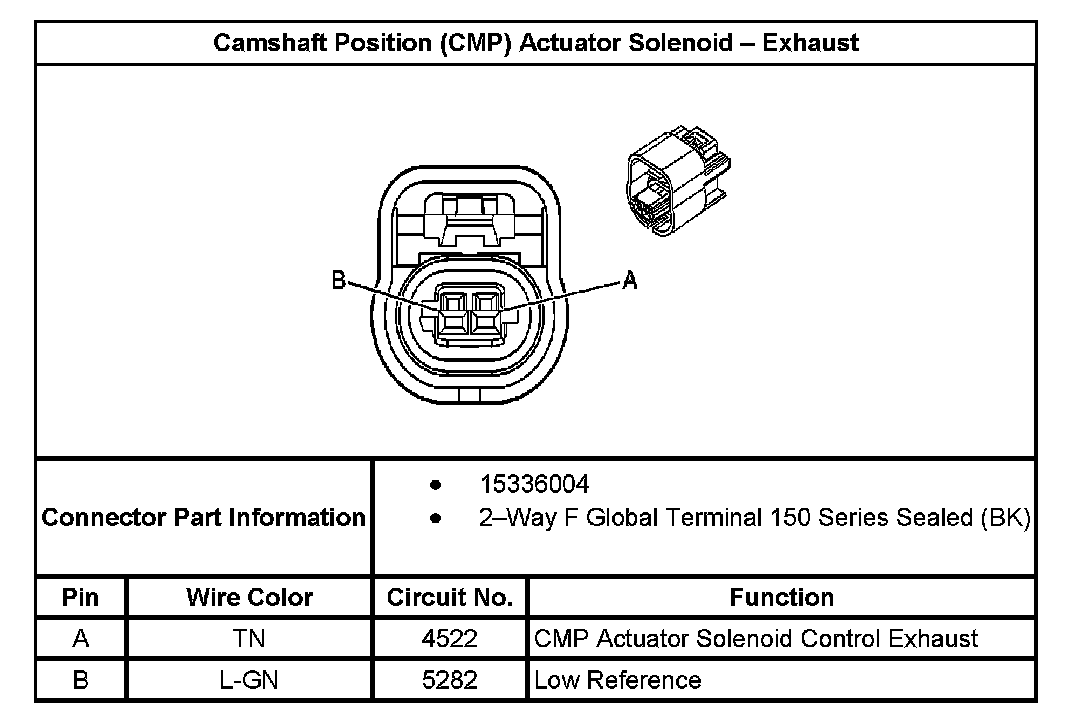

Camshaft Position (CMP) Actuator Solenoid - Exhaust:

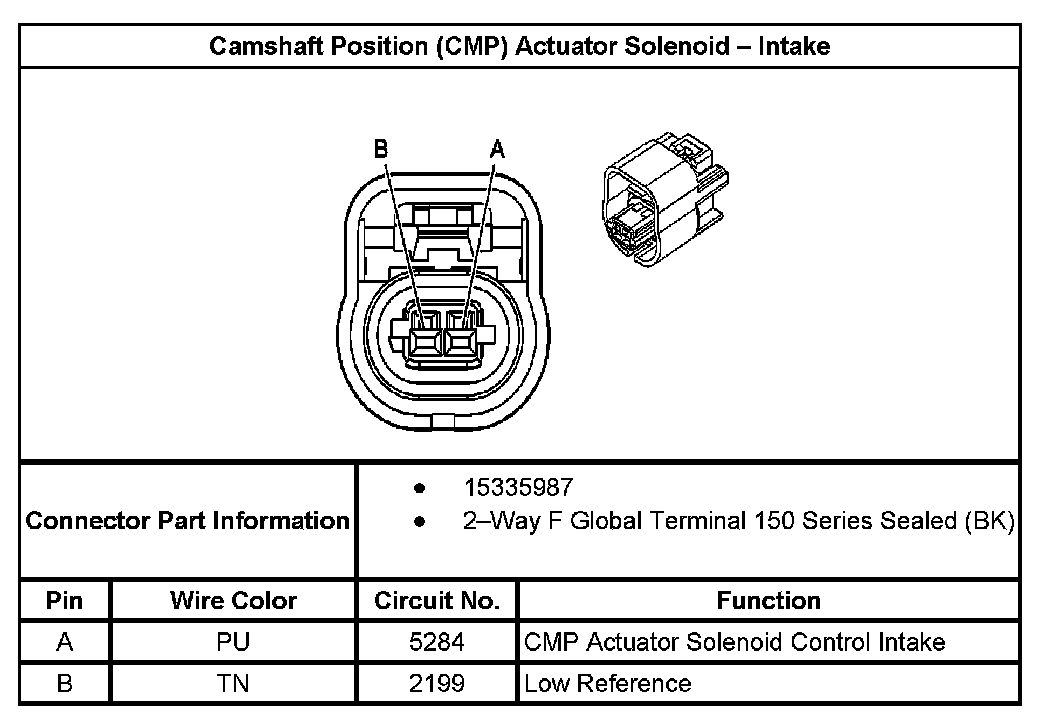

Camshaft Position (CMP) Actuator Solenoid - Intake:
