Air Cleaner Outlet Duct Replacement

AIR CLEANER OUTLET DUCT REPLACEMENT

REMOVAL PROCEDURE




1. Disconnect the engine harness electrical connector from the mass air flow (MAF)/intake air temperature (IAT) sensor.
2. Remove the intake manifold cover.




3. Loosen the clamps at the air cleaner housing and throttle body.

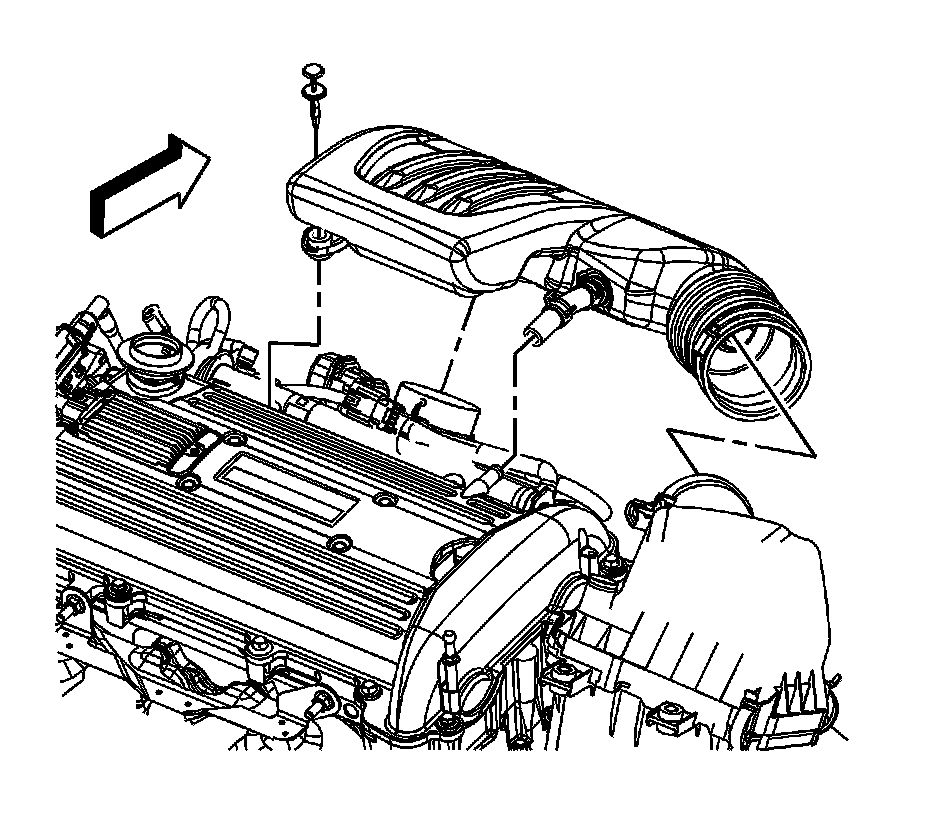

4. Reposition the positive crankcase ventilation (PCV) hose clamp at the camshaft cover.
5. Remove the PCV hose from the camshaft cover.
6. Remove the push pin retainer.
7. Remove the air cleaner outlet duct.

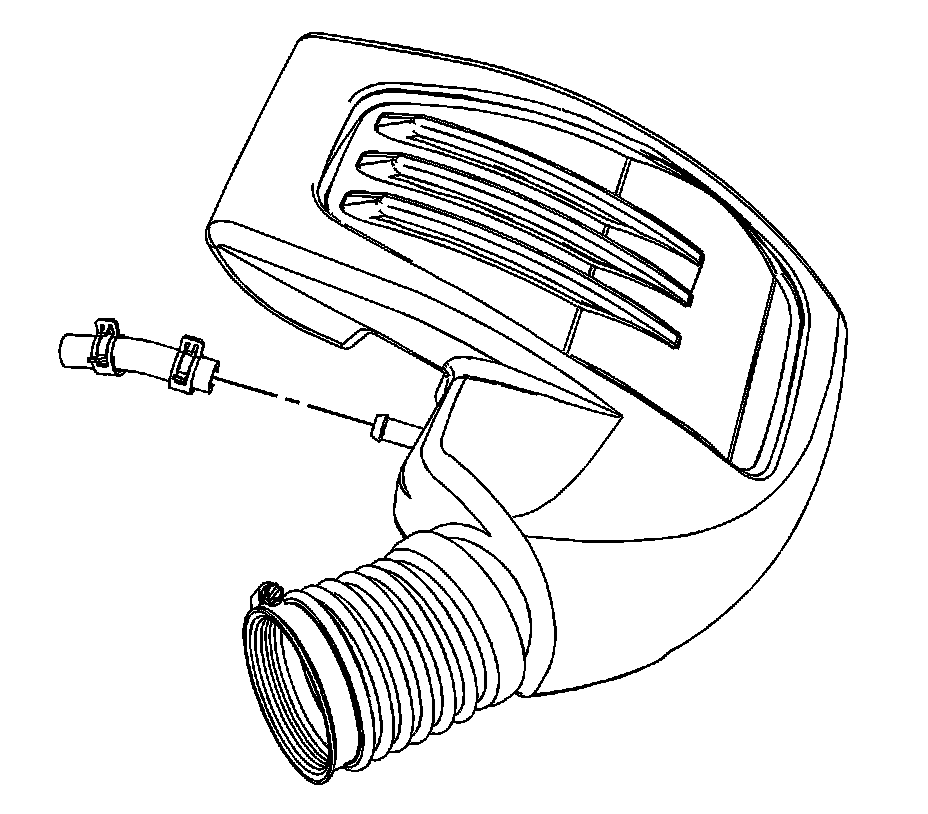

8. If necessary, reposition the PCV hose clamp at the outlet duct.
9. If necessary, remove the PCV hose from the outlet duct.

INSTALLATION PROCEDURE




1. If necessary, install the PCV hose to the outlet duct.
2. If necessary, position the PCV hose clamp at the outlet duct.




3. Install the air cleaner outlet duct to the throttle body and air cleaner housing.
4. Tighten the clamps at the air cleaner housing and throttle body.

NOTE: Refer to Fastener Notice.

Tighten the clamps to 5 N.m (44 lb in).

5. Install the push pin retainer.
6. Install the PCV hose to the camshaft cover.
7. Position the PCV hose clamp at the camshaft cover.




8. Connect the engine harness electrical connector to the MAF/IAT sensor.
9. Install the intake manifold cover.
