Rear Crankshaft Main Bearing Seal: Service and Repair

Crankshaft Rear Oil Seal Replacement
^ Tools Required
- J 42067 Rear Main Seal Installer

Removal Procedure





1. Remove the flywheel.
With Automatic Transmission Service and Repair
With Manual Transmission Service and Repair

Important: Do not damage the outside diameter of the crankshaft or chamber with any tool.

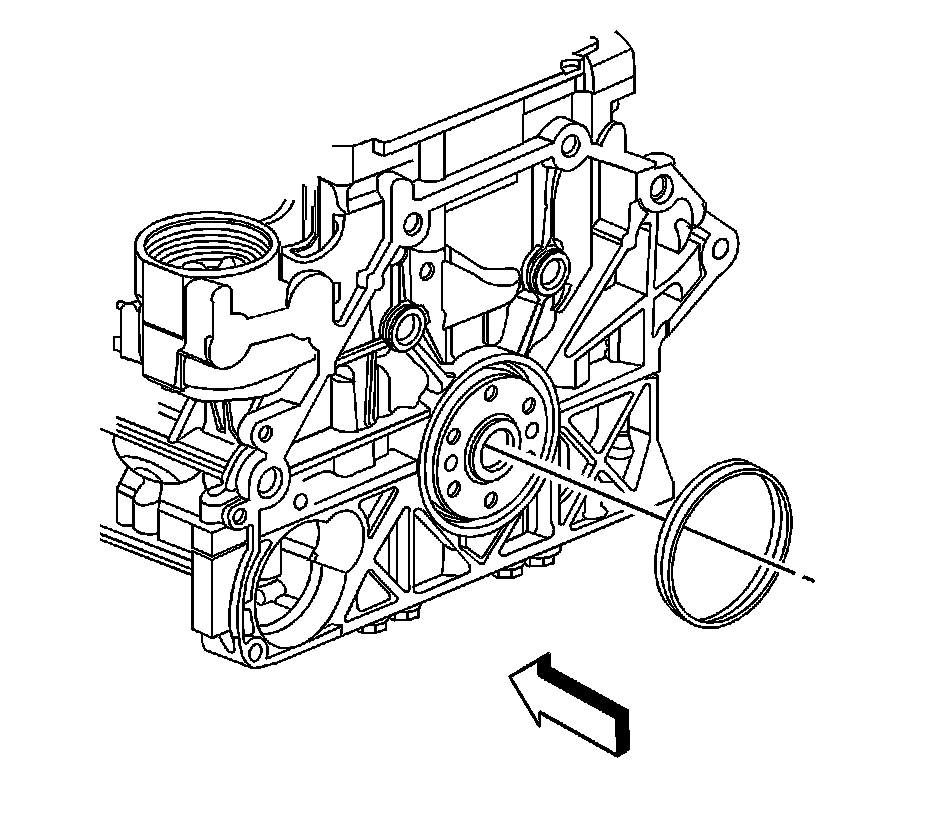

2. Pry out the crankshaft rear oil seal using a flat-bladed tool.

Installation Procedure





1. Using the J 42067, install a NEW crankshaft real oil seal.
2. Install the flywheel.
