Oil Cooler: Service and Repair

Oil Cooler Replacement

Removal Procedure





1. Drain the cooling system.

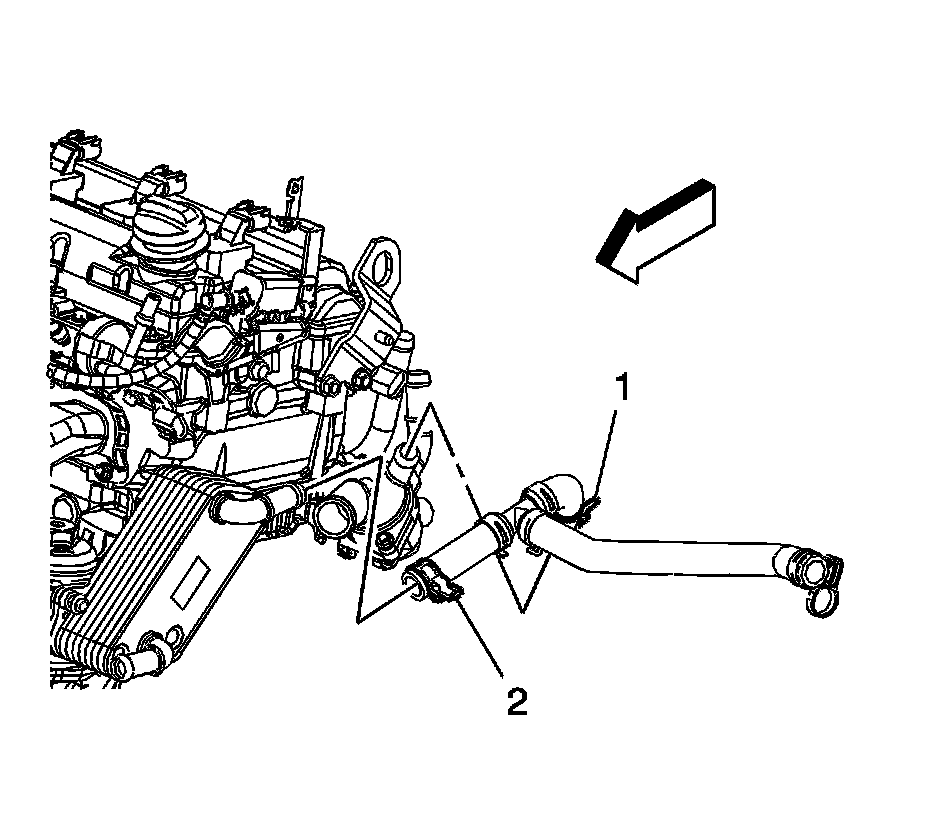

2. Reposition the oil cooler outlet hose clamp (2) at the oil cooler.
3. Remove the oil cooler outlet hose from the oil cooler.





4. Reposition the radiator outlet hose clamp (2) at the oil cooler.
5. Remove the radiator outlet hose from the oil cooler.





6. Remove the oil cooler bolts.
7. Remove the oil cooler.

Installation Procedure

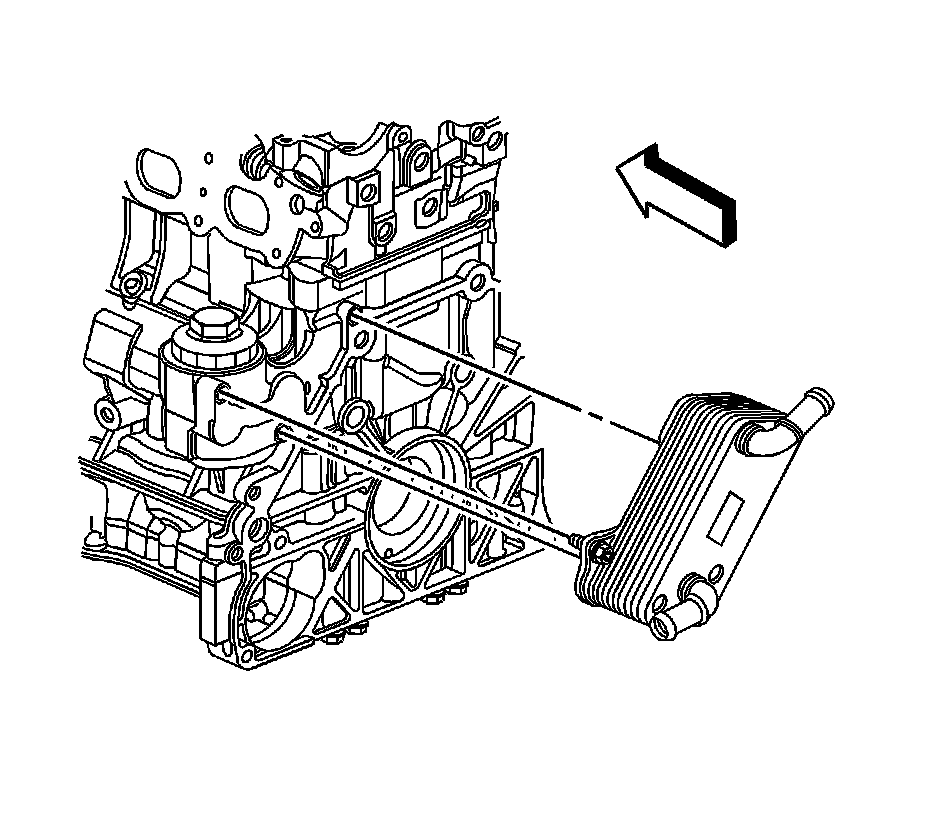

1. Position the oil cooler to the engine block.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the oil cooler bolts.
^ Tighten the bolts to 22 Nm (16 ft. lbs.).





3. Install the radiator outlet hose to the oil cooler.
4. Position the radiator outlet hose clamp (2) at the oil cooler.





5. Install the oil cooler outlet hose to the oil cooler.
6. Position the oil cooler outlet hose clamp (2) at the oil cooler.
7. Fill the cooling system.
