13. Clutch Housing Assemble

Clutch Housing Assemble

^ Tools Required
- 83 90 114Sleeve
- 83 90 312 Drift, Bearing Race Input Shaft
- 87 91 311 Sleeve, Bearing Driver Shaft
- 87 92 210 Support, Differential Bearing
- 87 92 236 Support
- J 44809 Output Shaft Seal Installer





1. Press in the new differential bearing race using the J 44809. Use the 87 92 236 as a base for the pressing operation.

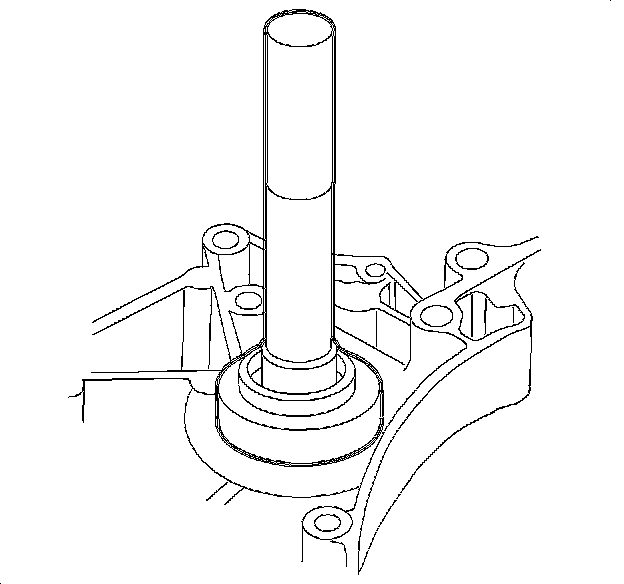

2. Install the new axle using the J 44809.

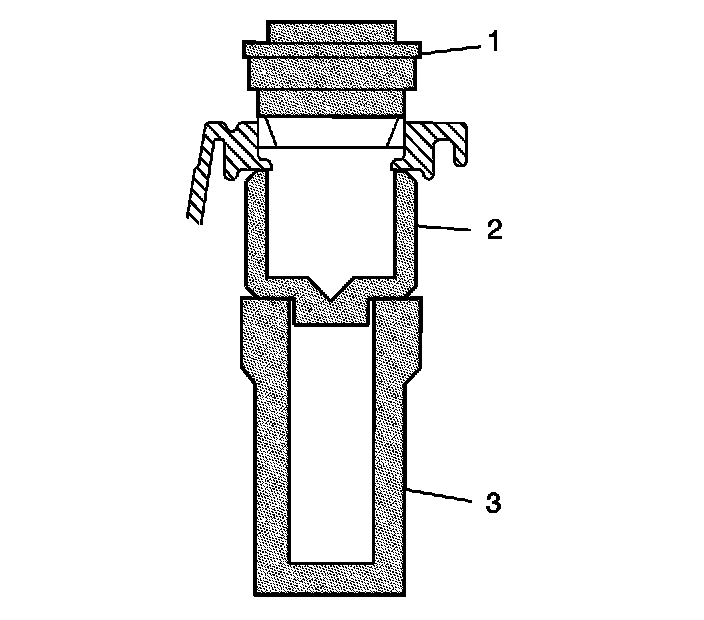

3. Press in the new input shaft bearing race using the 83 90 312 (1). Use the 83 90 114 (2) and the 87 91 311 (3) as a base for the pressing operation.
