Transmission Drain & Refill Locations

Transmission Drain & Refill Locations

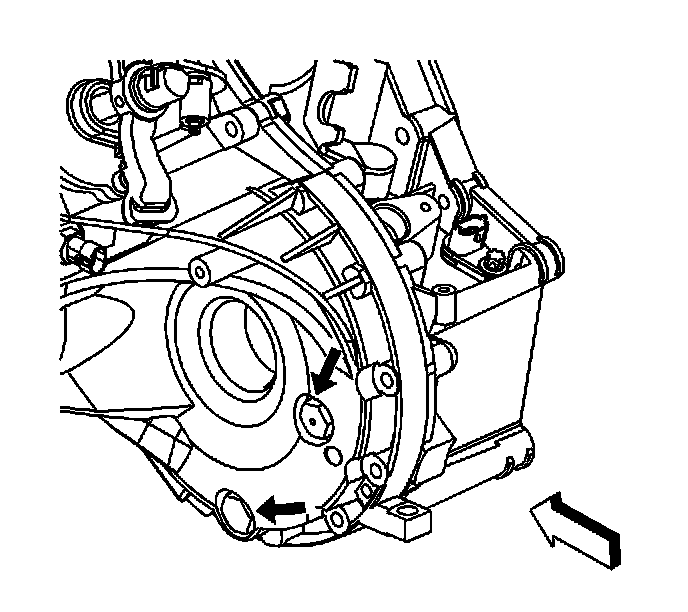

Transmission fluid drain plug area.

Install the transmission fluid drain plug, using pipe sealant Saturn P/N 21485278 or equivalent on the plug threads.

^ Tighten the transmission fluid drain plug to 38 Nm (28 ft. lbs.).

Filling Procedure





Remove the transmission fluid level check plug.

Fill the transmission with DEXRON-III transmission fluid Saturn P/N 21019223, until even with the bottom of the fill plug hole.

Install the level check plug.
^ Tighten the level check plug to 38 Nm (28 ft. lbs.).
