Wheel Drive Shaft Outer Joint and Seal Replacement (GKN)

Wheel Drive Shaft Outer Joint and Seal Replacement (GKN)

^ Tools Required
- J 8059 Snap Ring Pliers
- J 35910 Seal Clamp Tool
- J 41048 Drive Axle Swage Ring Clamp

Removal Procedure





1. Remove the large seal retaining clamp from the CV joint with a side cutter. Discard the seal retaining clamp.
2. Use a hand grinder to cut through the swage ring in order to remove the swage ring.
3. Separate the outboard seal from CV joint outer race (1) at large diameter.
4. Slide the seal (5) away from joint along shaft (4).
5. Wipe the grease from the face of the CV joint inner race (2).
6. Spread the ears on the race retaining ring (3) with J 8059.
7. Remove the CV joint assembly (1) from the shaft (4).
8. Remove the outboard seal (5) from the shaft (4).
9. Discard the old outboard seal.

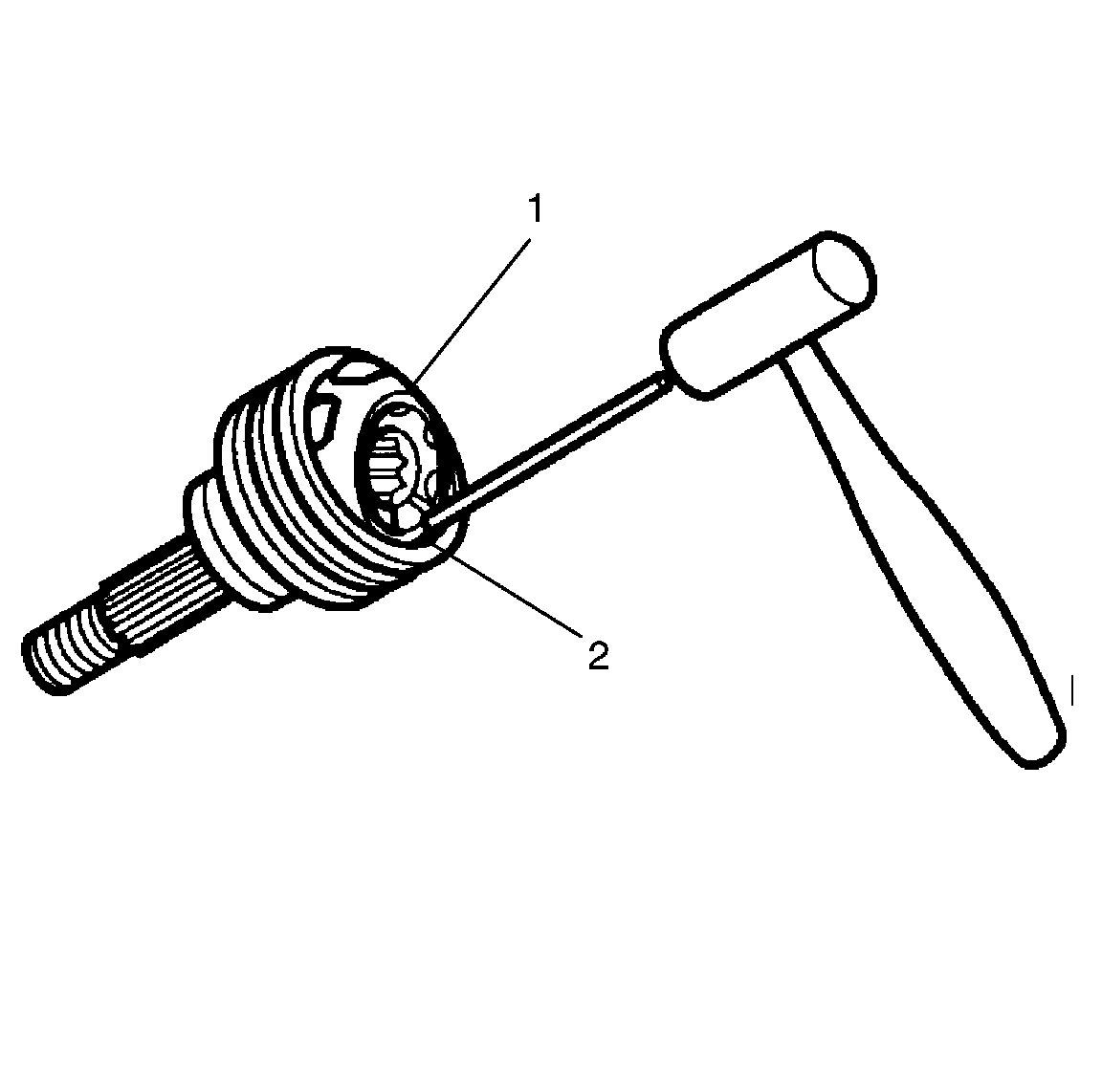

10. Place a brass drift against the CV joint cage (1).
11. Tap gently on the brass drift with a hammer in order to tilt the cage (1).
12. Remove the first chrome alloy ball (2) when the CV joint cage (1) tilts.
13. Tilt the CV joint cage (1) in the opposite direction to remove the opposing chrome alloy ball (2).
14. Repeat this process to remove all 6 of the balls.

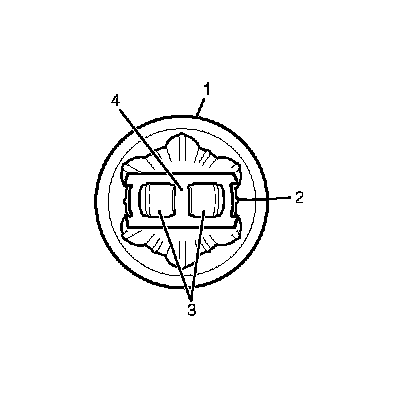

15. Pivot the CV joint cage (4) and the inner race 90 degrees to the center line of the outer race (2). At the same time, align the cage windows (3) with the lands of the outer race.
16. Lift out the cage (4) and the inner race.

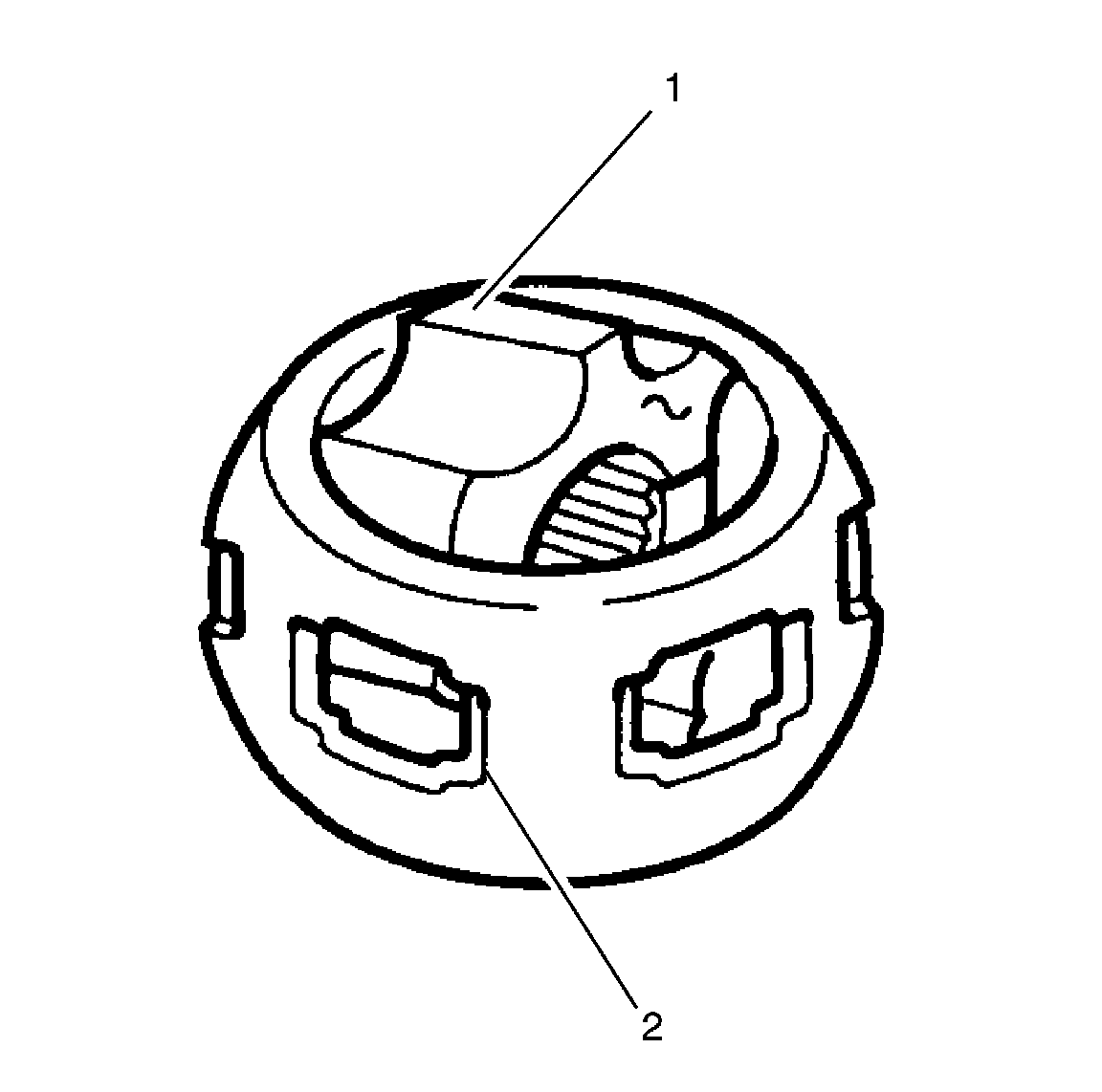

17. Remove the inner race (1) from the cage (2) by rotating the inner race (1) upward.
18. Clean the following items thoroughly with cleaning solvent. Remove all traces of old grease and any contaminates.
^ The inner and outer race assemblies
^ The CV joint cage
^ The chrome alloy balls
19. Dry all the parts.
20. Check the CV joint assembly for the following items:
^ Unusual wear
^ Cracks
^ Damage
21. Replace any damaged parts.
22. Clean the shaft. Use a wire brush to remove any rust in the grooves of the seal mounting area.

Installation Procedure





1. Install the new swage ring (2) on the neck of the outboard seal (1). Do not swage.
2. Slide the outboard seal (1) onto the shaft and position the neck of the outboard seal (1) in the seal groove on the shaft. The largest groove below the sight groove on the shaft is the seal groove (3).





3. The swage ring is swaged using J 41048 by the following method:
1. Position the outboard end of the wheel drive shaft assembly (1) in J 41048.
2. Align the swage ring.
3. Place the top half of J 41048 on the lower half of J 41048.

Notice: Refer to Fastener Notice.

Important: Align the following items during this procedure:
^ The outboard seal (1)
^ The shaft
^ The swage ring

4. Insert the bolts (2) and tighten by hand until snug.
^ Tighten each bolt 180 degrees at a time using a ratchet wrench. Alternate between each bolt until both sides are bottomed.





5. Loosen the bolts and separate the dies.
6. Check swaged ring (2) for any lip deformities. If present, place the ring (2) back into the J 41048 making sure the ring covers the whole swaging area. Then re-swage the ring.





7. Put a light coat of grease from the service kit on the ball grooves of the inner race and the outer race.
8. Hold the inner race 90 degrees to centerline of cage with the lands of the inner race (1) aligned with the windows of the cage (2) and insert the inner race into the cage.





9. Hold the cage and the inner race 90 degrees to centerline of the outer race (1) and align the cage windows (3) with the lands of the outer race.

Important: Verify that the retaining ring side of the inner race faces the shaft.

10. Place the cage and the inner race into the outer race.
11. Insert the first chrome ball then tilt the cage in the opposite direction to insert the opposing ball.
12. Repeat this process until all 6 balls are in place.
13. Place approximately half the grease from the service kit inside the outboard seal and pack the CV joint with the remaining grease.

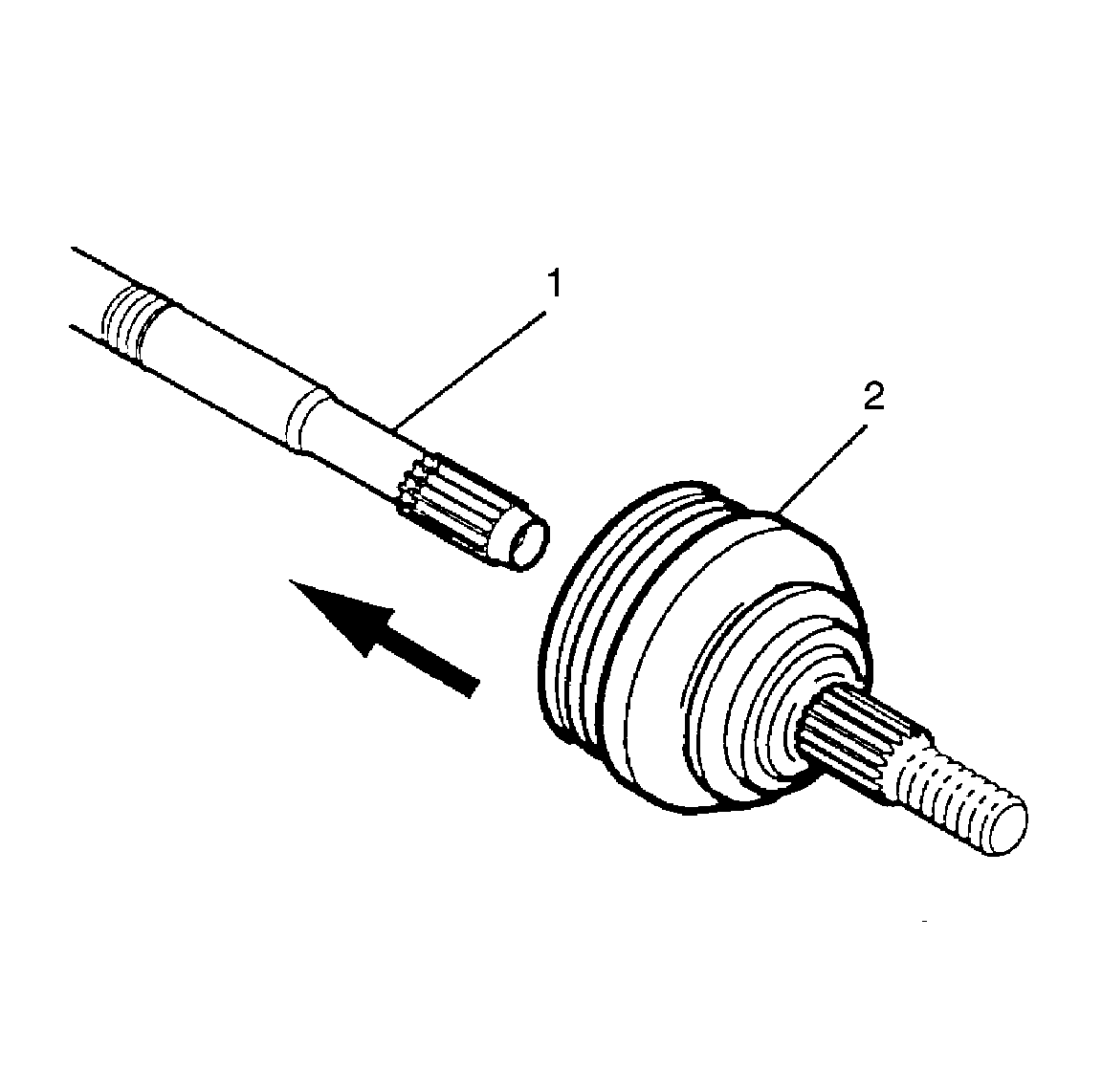

14. Push the CV joint (2) onto the shaft (1) until the retaining ring is seated in the groove on the shaft.





Important: The outboard seal (1) must not be dimpled, stretched or out of shape in any way. If the outboard seal (1) is not shaped correctly, equalize the pressure in the outboard seal (1) and shape the seal properly by hand.

15. Slide large diameter of the outboard seal (1) with the large seal retaining clamp (2) in place over the outside of the CV joint outer race (3) and locate the seal lip in the groove on the CV joint outer race.

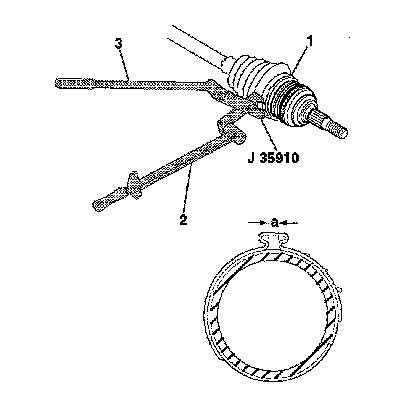

16. Crimp the seal retaining clamp (1) using J 35910.
Crimp the clamp (1) to 174 Nm (130 ft. lbs.).
17. Check the gap dimension on the clamp ear. Continue tightening until the gap dimension is reached. Dimension a = 2.3 mm (3/32 inch)
