Wiring Harness: Service and Repair

Wiring Harness Replacement

Removal Procedure

^ Tools Required
- J 41101 Pass-Through Connector Remover

1. Remove the transmission side cover.
2. Remove the control valve body.

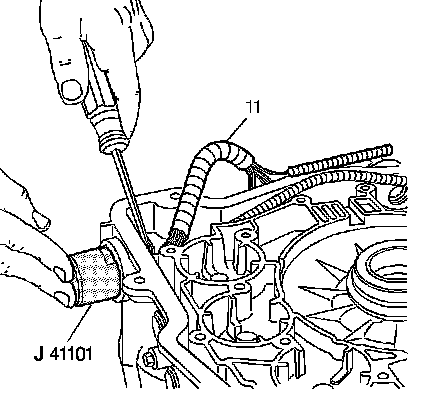

3. Push the J 41101 onto the pass-through connector from the outside of the transmission case in order to compress the pass-through connector's retaining tabs.
4. With the retaining tabs compressed, use a screwdriver in order to remove the pass-through connector through the inside of the transmission case.
5. Remove the wiring harness (11).

Installation Procedure

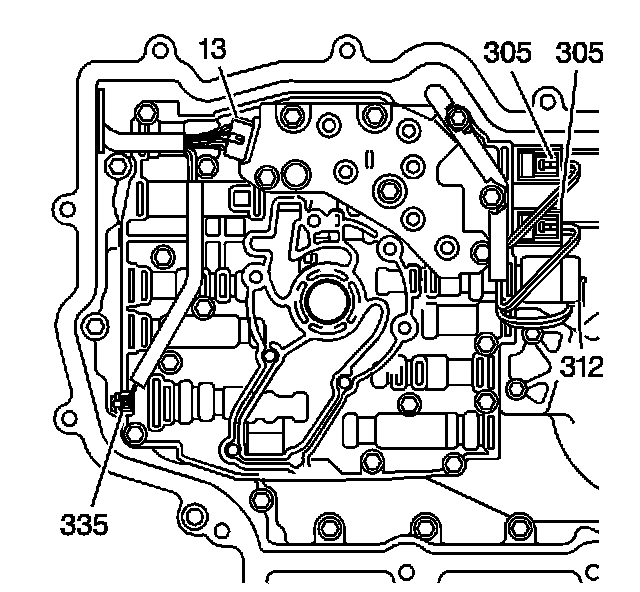

Connect the wiring harness assembly to the following components:
^ The TFP switch assembly (13)
^ The pressure control solenoid (312) (red connector)

^ Important:
The 1-2 shift solenoids wires are red and light green. The 2-3 shift solenoid wires are red and yellow.
The 1-2 shift solenoid (305) (white connector)

^ The 2-3 shift solenoids (305) (white connectors)
^ The TCC solenoid (335)
^ Install the control valve body.
^ Install the transmission side cover.
