Transmission Control Replacement

Transmission Control Replacement

Removal Procedure

1. Remove the console trim plate. Refer to Console Front Trim Plate Replacement Service and Repair.
2. If necessary, remove the shift control knob. Refer to Floor Shift Control Knob Replacement Floor Shift Control Knob Replacement.

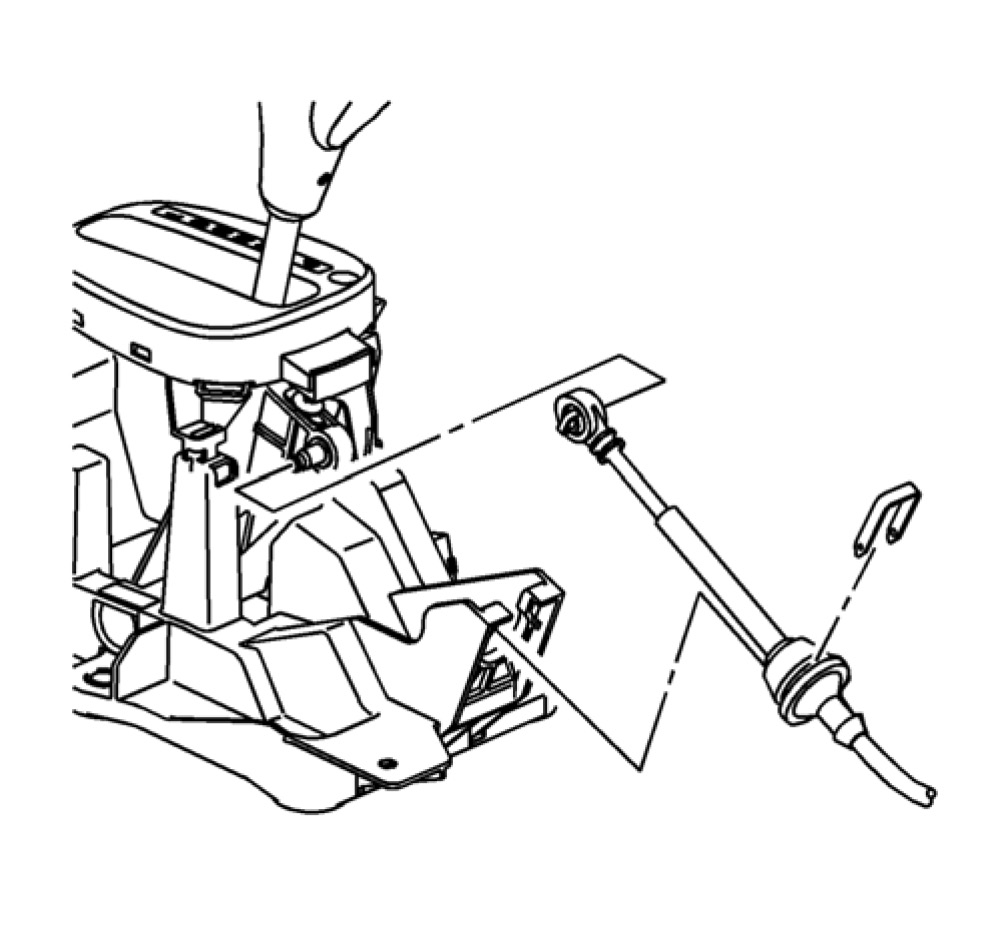

3. Remove the shift cable retaining clip.
4. Disconnect the shift cable from the shift control assembly.

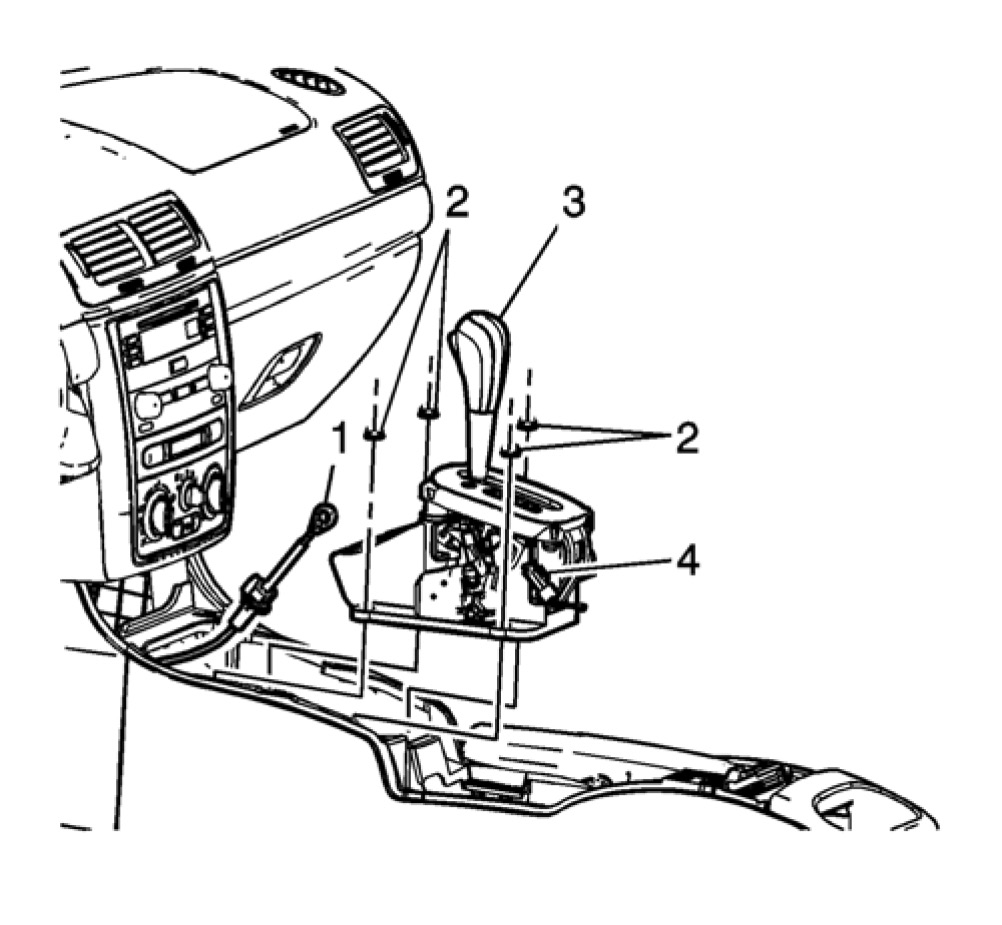

5. Disconnect the shift lock solenoid harness connector (4).
6. Remove the shift control nuts (2).
7. Remove the shift control (3) from the vehicle.

Installation Procedure






1. Install the shift control (3) to the vehicle.
2. Connect the shift lock solenoid harness connector (4).

Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

3. Install the shift control nuts (2).

Tighten
Tighten the nuts to 25 Nm (18 lb ft).






4. Connect the shift cable to the shift control assembly.
5. If the shift control knob was removed, install the shift control knob. Refer to Floor Shift Control Knob Replacement Floor Shift Control Knob Replacement.
6. Install the console trim plate. Refer to Console Front Trim Plate Replacement Service and Repair.
