Floor Shift Control Knob Replacement

Floor Shift Control Knob Replacement

Removal Procedure

Important: Place the shift control in NEUTRAL before attempting to remove the shift knob screw.

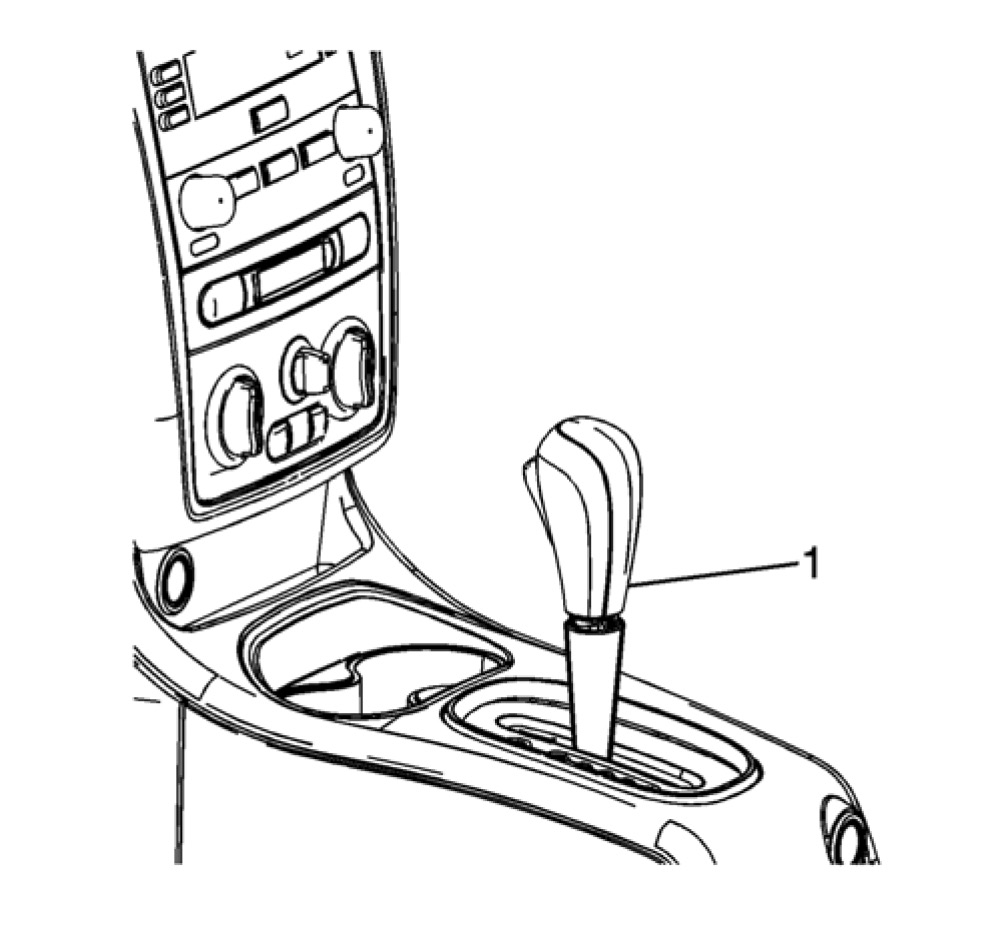

1. Pull the shift knob bezel (1) down to expose the shift knob retaining screw.

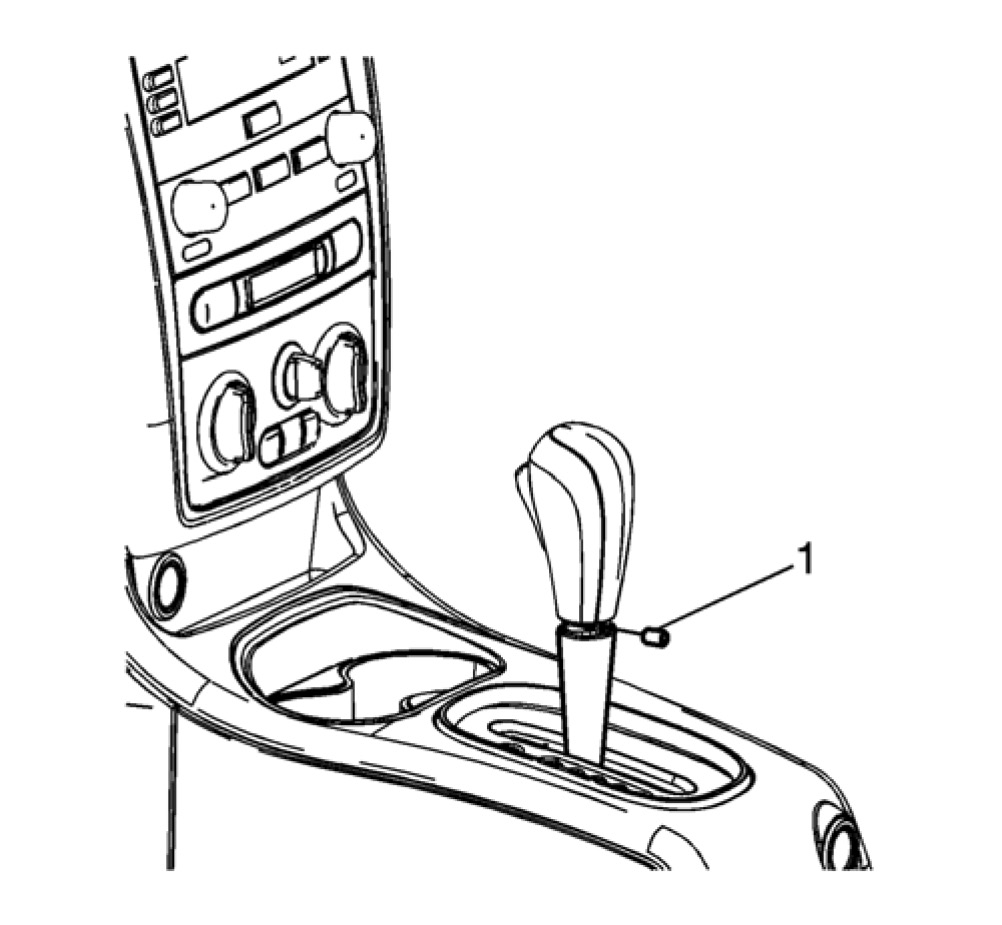

2. Remove the shift knob retaining screw (1).

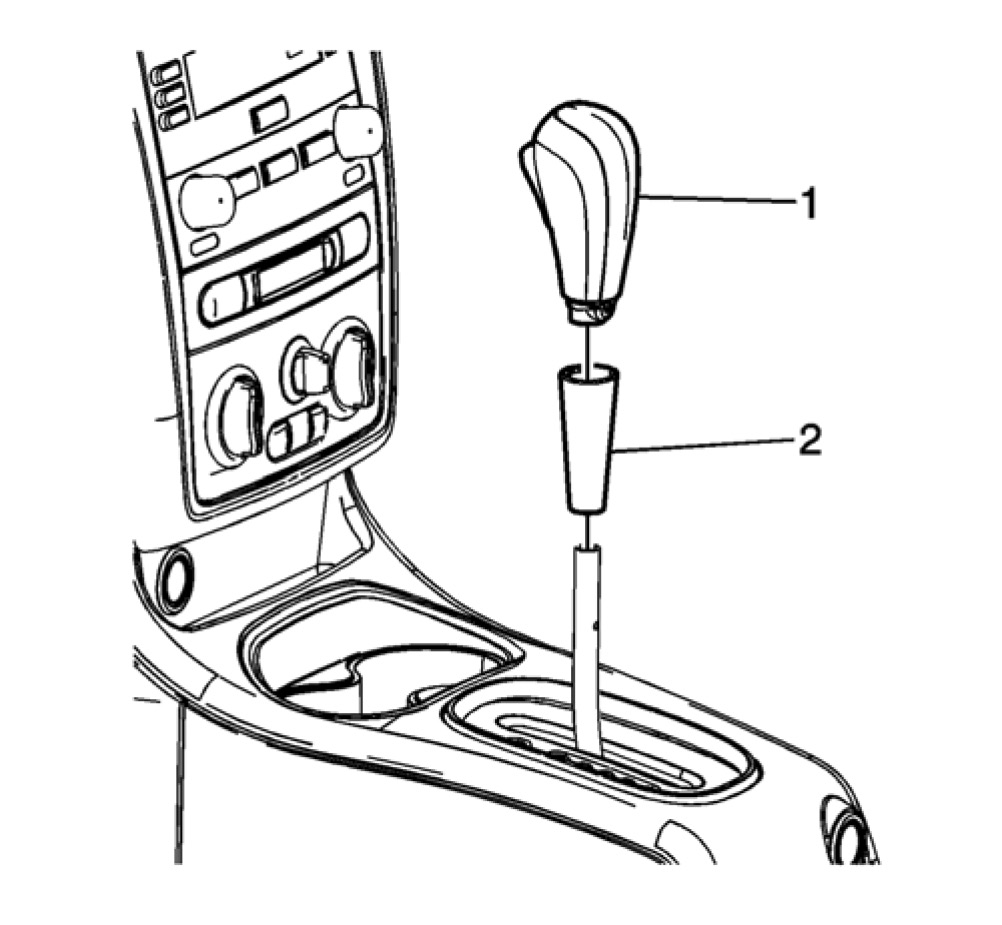

3. Remove the shift knob (1) and bezel (2) from the shift control lever.

Installation Procedure

Important: Place the shift control in NEUTRAL before attempting to install the shift knob screw.






1. Install the bezel (2) and shift knob (1) to the shift control lever.

Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

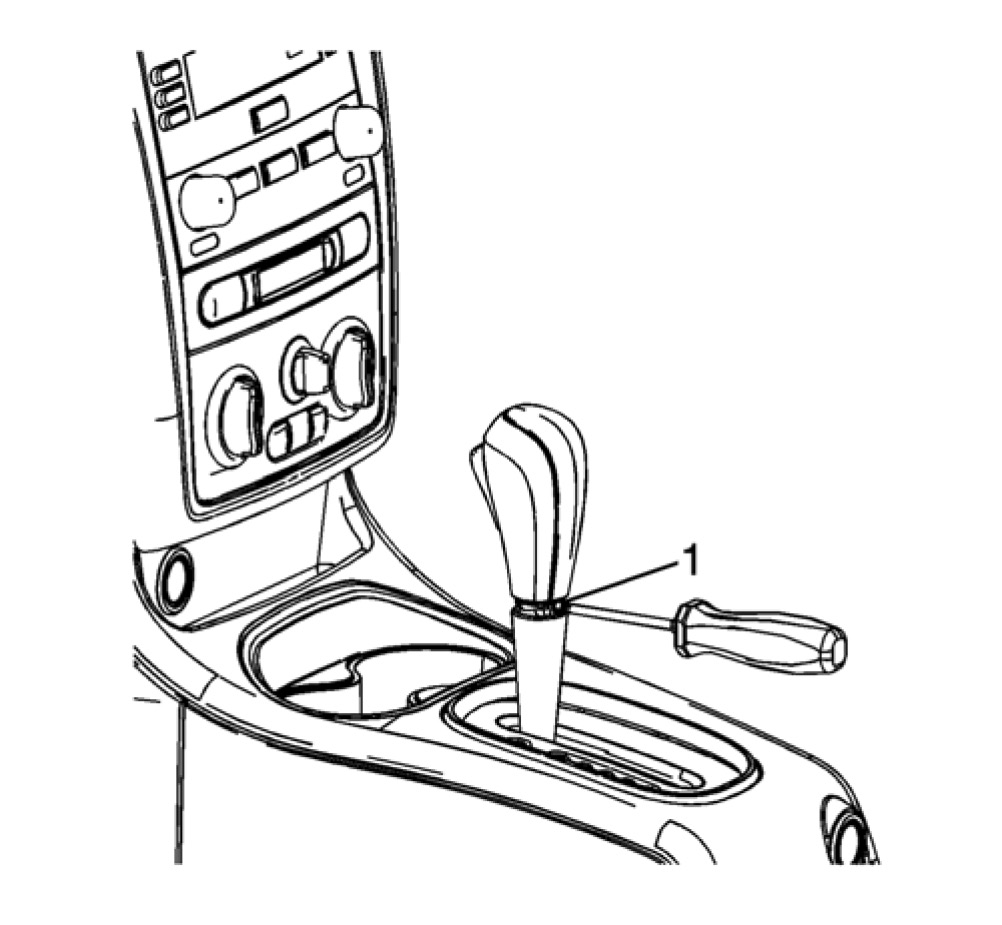

2. Install the shift knob retaining screw (1).

Tighten
Tighten the screw to 2 Nm (18 lb in).

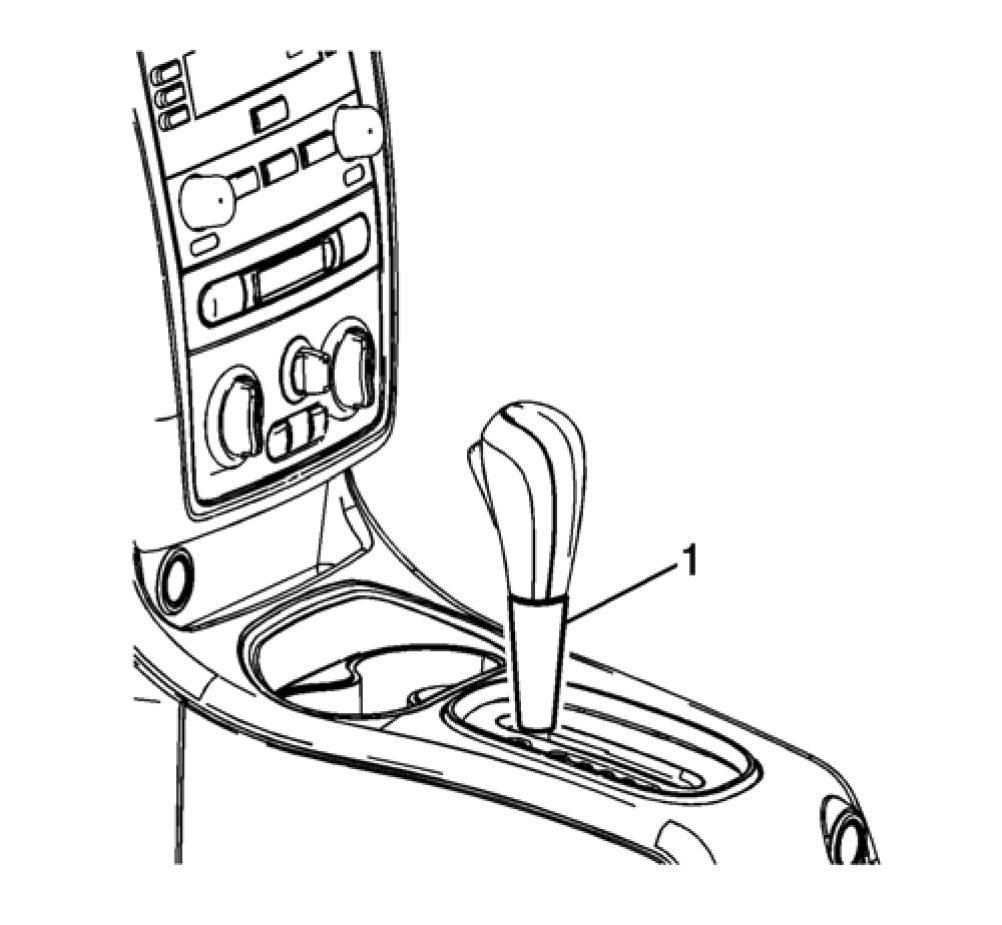

3. Secure the shift knob bezel (1) to the shift knob.
