Oil Feed Pipes Replacement

Oil Feed Pipes Replacement

Removal Procedure

1. Caution: Refer to Battery Disconnect Caution in Service Precautions.

Disconnect the negative battery cable.
2. Raise the vehicle. Support the vehicle. Refer to Lifting and Jacking the Vehicle.
3. Remove the transmission oil pan.
4. Remove the transmission oil filter assembly.





5. Remove the oil feed pipe bolts.
6. Inspect the eight oil feed pipe seal rings.
7. Replace the seal rings only if the seal rings are cut, swollen or damaged.

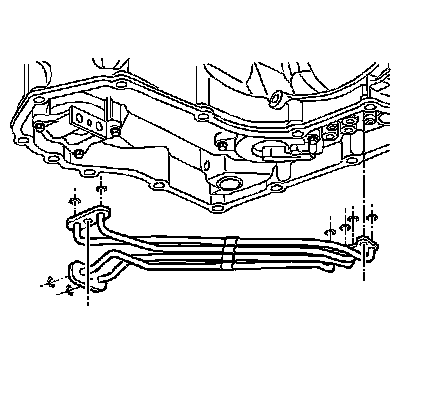

8. Remove the low/reverse band oil pipe assembly.
9. Remove the eight low/reverse band oil pipe assembly seals.
10. Inspect the oil feed pipes for plugged passages, bent pipes, or cracks.
11. Inspect the oil feed pipe seal rings. Verify the proper location of the seal rings. Replace the seal rings if these are cut, swelled or damaged.

Installation Procedure





1. Install the eight low/reverse band oil pipe assembly seals.
2. Install the low/reverse band oil feed pipe assembly onto the transmission.





3. Notice: Hand start the bolts that attach the oil feed pipe assembly to the transmission.

^ Tighten the bolts to 14 Nm (124 inch lbs.).
4. Install the transmission oil filter assembly.
5. Install the transmission oil pan and gasket.
6. Lower the vehicle.
7. Refill the transmission to the proper level.
8. Inspect the transmission oil level. Refer to Transmission Fluid Checking Procedure.
