Low/Reverse Servo Assembly Replacement

Low/Reverse Servo Assembly Replacement

Removal Procedure

1. Caution: Refer to Vehicle Lifting Caution in Service Precautions.

Raise the vehicle. Support the vehicle.
2. Remove the oil pan and filter.
3. Remove the oil feed pipes. Refer to Oil Feed Pipes Replacement.

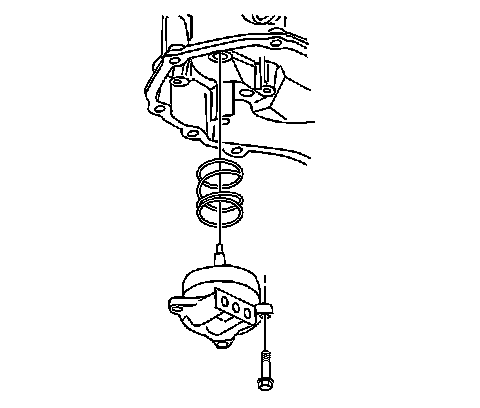

4. Remove the three low/reverse band servo cover bolts, the servo and the spring.
5. Disassemble, clean and inspect the low/reverse servo assembly.

Installation Procedure
1. Assemble the low/reverse servo.





2. Notice: Install the low/reverse band servo cover bolts.

^ Tighten the bolts to 12 Nm (106 inch lbs.).
3. Install the oil feed pipe.
4. Install the oil filter and pan.
5. Lower the vehicle.
6. Connect the negative battery cable.
7. Fill the transmission. Refer to Fluid Capacity Specifications.
8. Inspect the transmission fluid level. Refer to Transmission Fluid Checking Procedure.
