Home >> Chevrolet >> 2006 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Testing and Inspection >> Component Tests and General Diagnostics >> Struts or Shock Absorbers Testing - On Vehicle

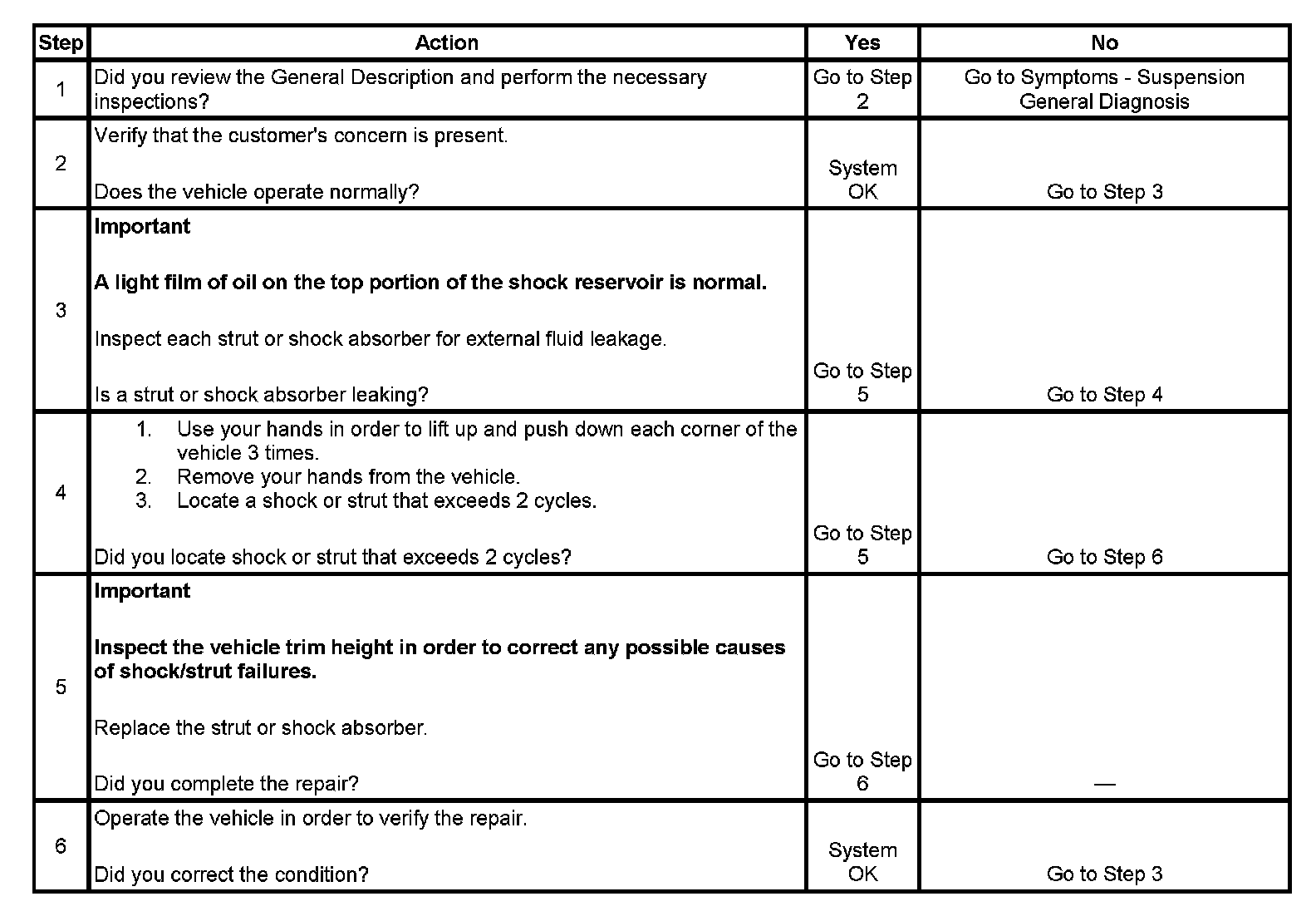

Struts or Shock Absorbers Testing - On Vehicle

Steps 1 - 6:
