Steering Wheel Replacement

The content of this article reflects the changes identified in TSB- 05-02-35-008 Dated: December 09, 2005

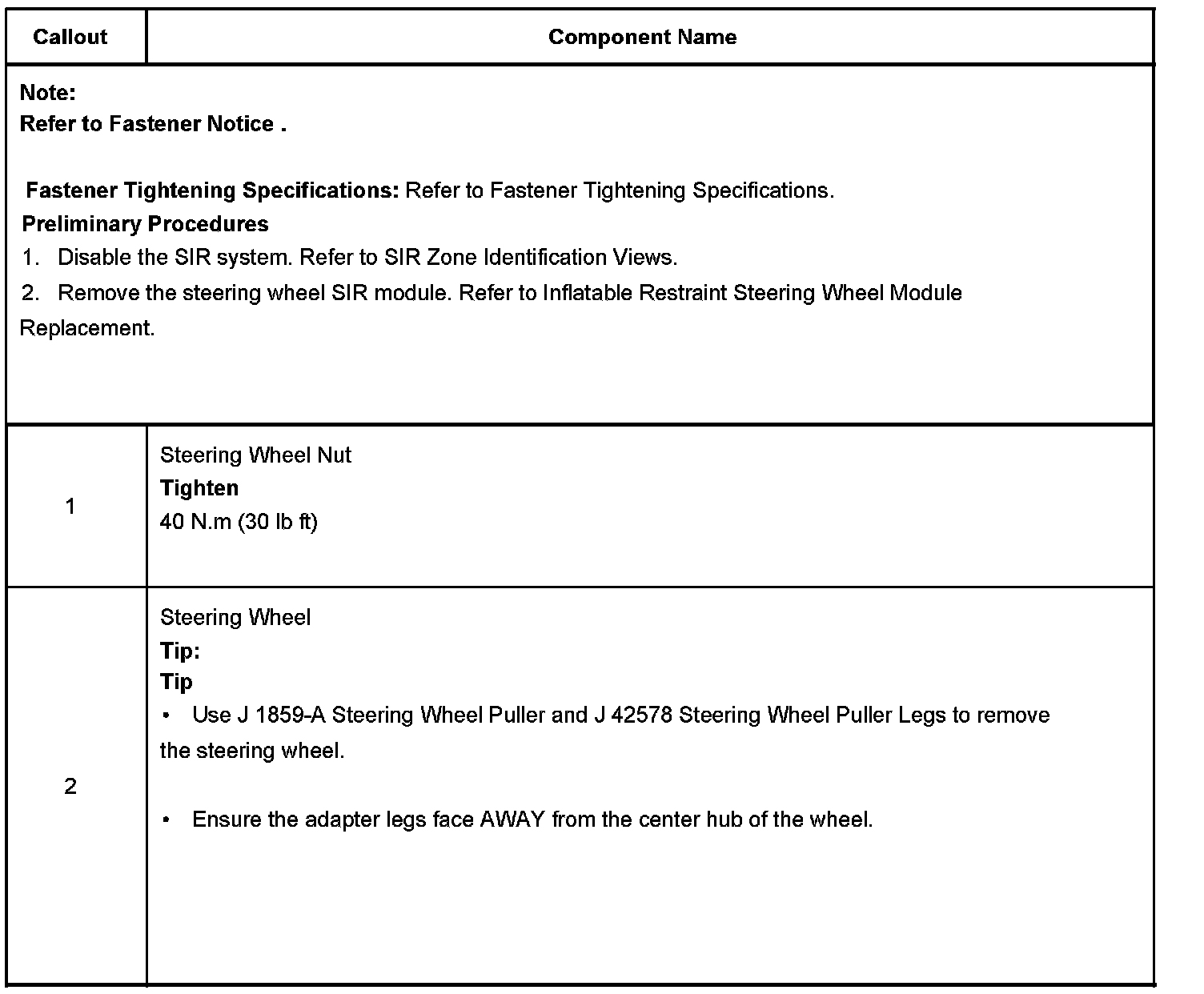

Steering Wheel Components

Steering Wheel Components:

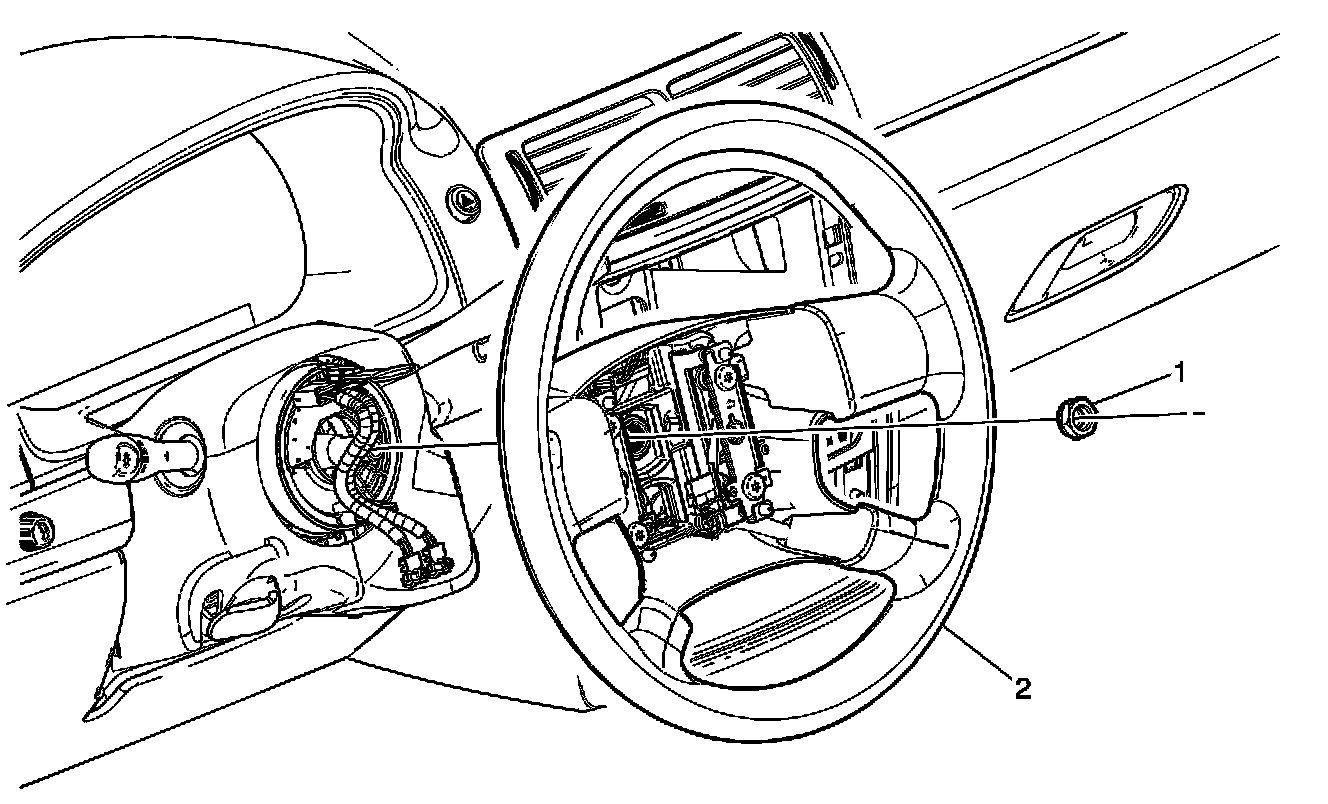

Steering Wheel Replacement

Steering Wheel Replacement:
