Home >> Chevrolet >> 2006 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Starter Solenoid Does Not Click

Starter Solenoid Does Not Click

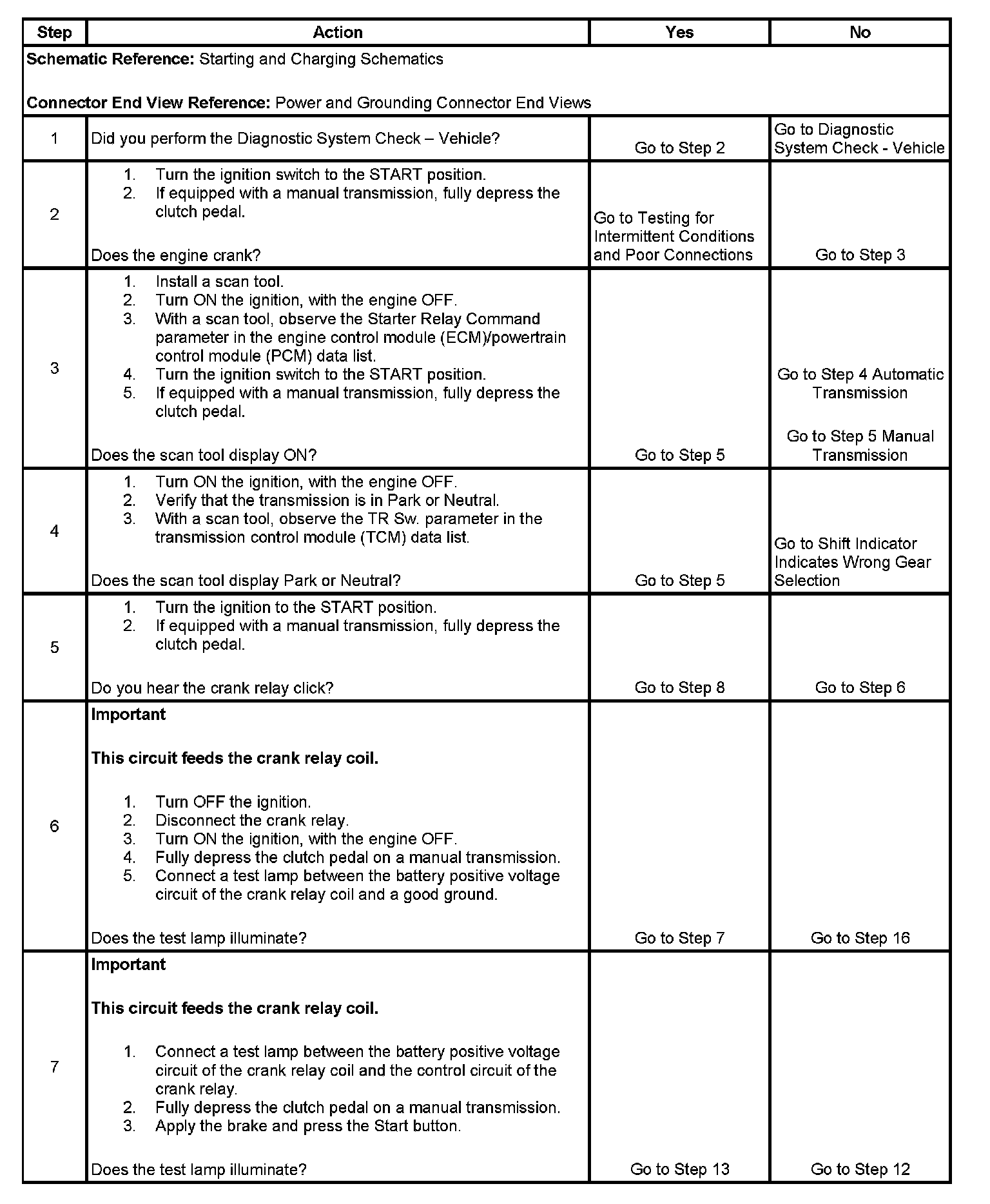

Step 1 - Step 7:

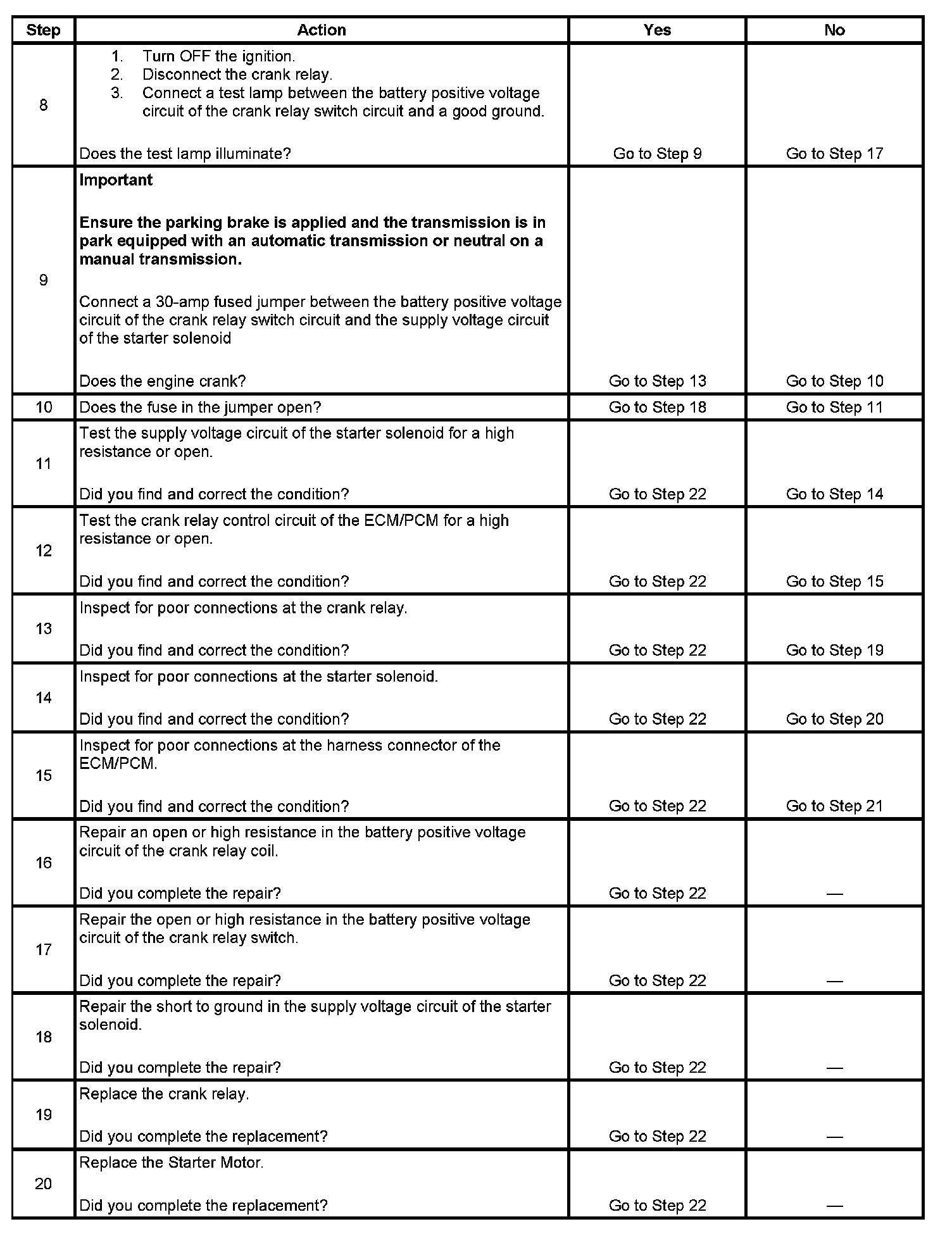

Step 8 - Step 20:

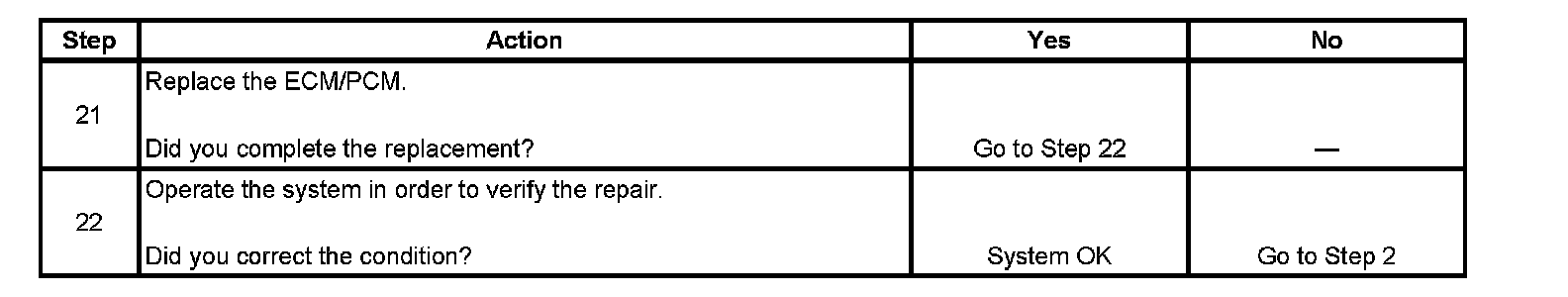

Step 21 - Step 22:
