Home >> Chevrolet >> 2006 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Restraints and Safety Systems >> Relays and Modules - Restraints and Safety Systems >> Air Bag Control Module >> Service and Repair

Air Bag Control Module: Service and Repair

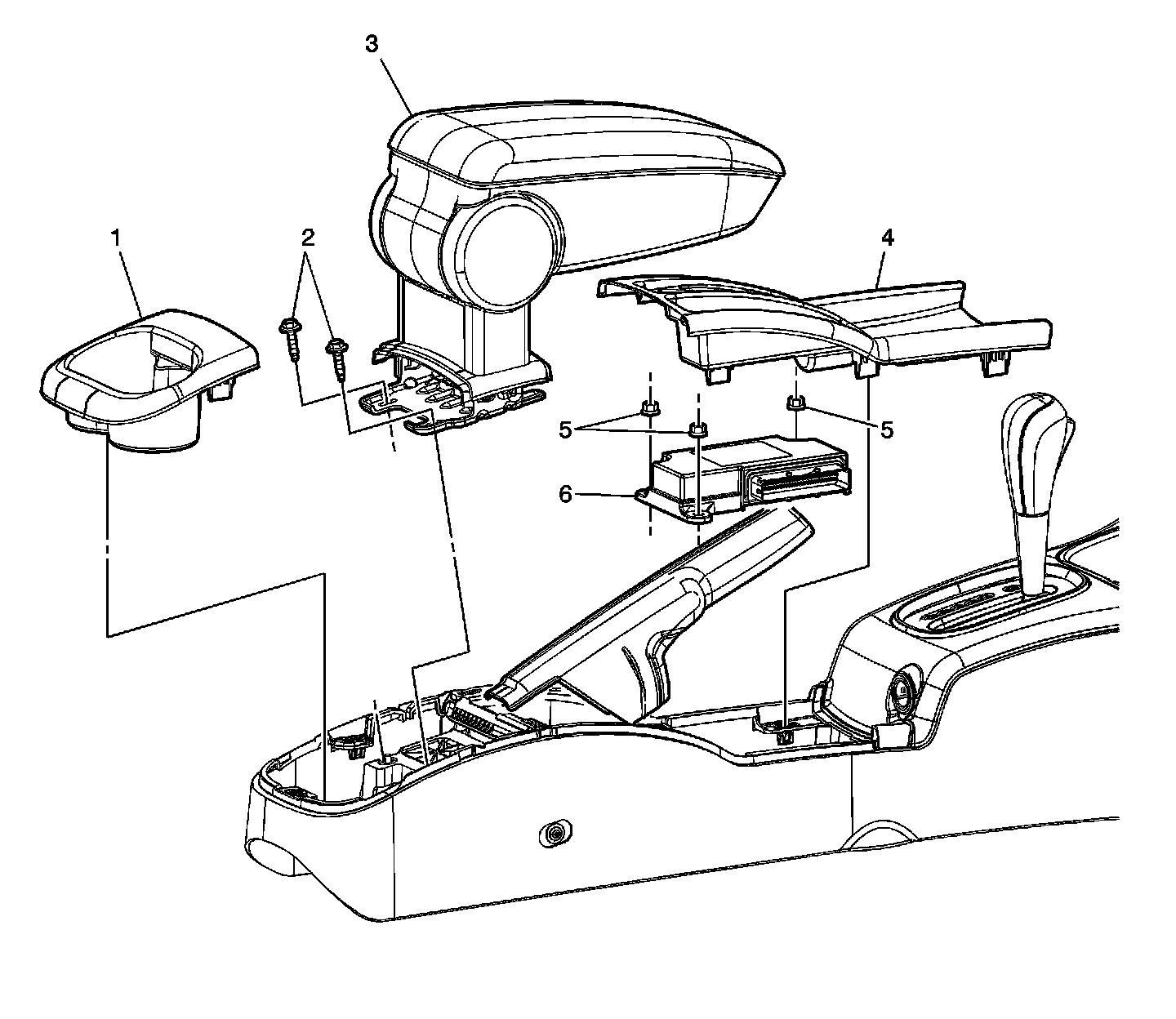

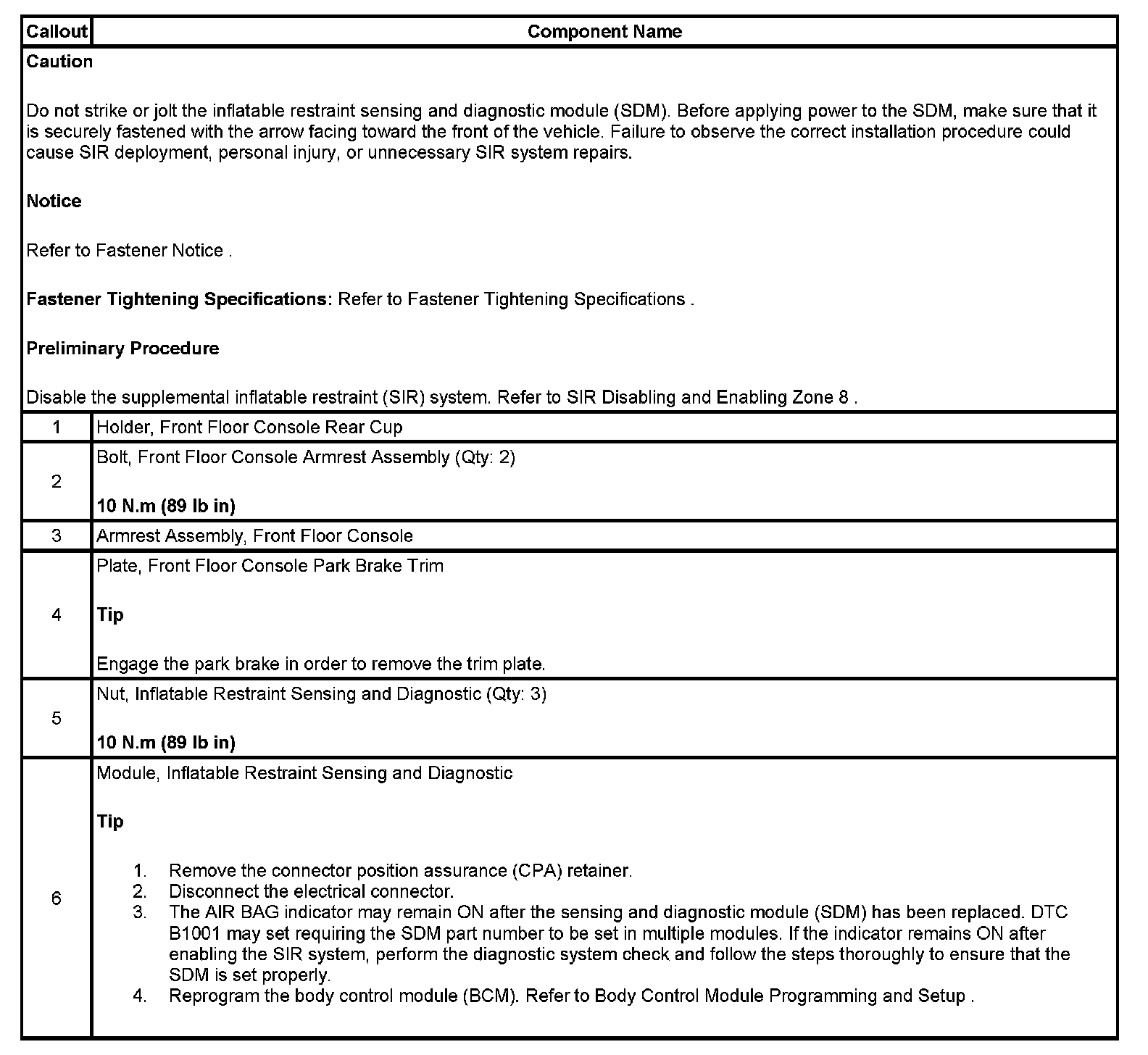

INFLATABLE RESTRAINT SENSING AND DIAGNOSTIC MODULE REPLACEMENT
